Heavy Duty (8") Precision Grinding And Polishing Machine
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 10 working days
Supply capacity 50 sets
1. The speed of the single position grinding polishing machine can be infinitely adjusted, and the grinding speed can be accurately controlled according to different materials and process requirements. The grinding polishing machine increases the flexibility of operation.
2. During the operation of the grinding polishing machine, the user can manually adjust the pressure to accurately control the grinding and polishing process.
3. The metallographic manual polishers can directly use tap water for cooling during grinding and polishing, which simplifies the cooling process, prevents the sample from overheating, and improves the grinding efficiency.
Introduction of metallographic manual polishers：

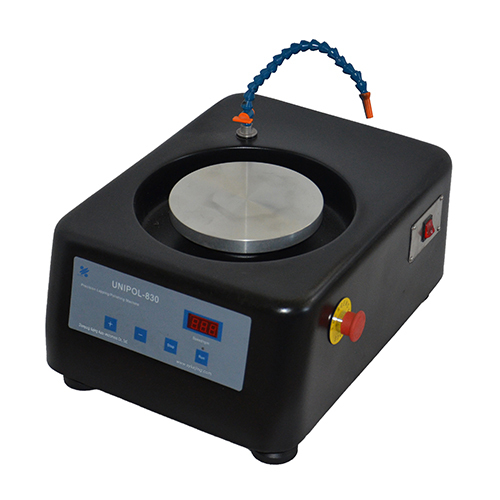

UNIPOL-830 metallographic manual polishers is a manual grinding and polishing machine designed and developed by our company mainly for major colleges and universities, research institutes, and metallographic laboratories. Metallographic manual polishers can not only grind and polish metal materials, but also grind and polish other types of non-metallic materials, such as crystals, ceramics, glass, PCB boards, rock samples, mineral samples, infrared optical materials (such as zinc selenide, zinc sulfide, silicon, germanium and other crystals), refractory materials, composite materials and organic polymer materials. The grinding and polishing speed of metallographic manual polishers is infinitely adjustable, the pressure is manually controlled, the operation is simple, and the use is convenient. The metallographic manual polishers can be directly connected to tap water for cooling during the grinding process. The installation of sandpaper or polishing pad can be installed by pressing ring, and can be installed by magnetic adsorption. It is easy to load and unload, and different installation methods can be selected according to personal needs.
Main features of single position grinding polishing machine:
The single position grinding polishing machine can choose to place sandpaper and polishing pads by clamping ring or magnetic adsorption, which makes the operation more stable. Magnetic adsorption is mainly to overcome the shortcomings of pleating of traditional clamping polishing fabrics. The polishing fabric with pressure-sensitive adhesive is pasted on the grinding and polishing film, and then adsorbed on the magnetic sheet; secondly, the sandpaper and polishing pad of the single position grinding polishing machine are more convenient to replace.
Technical parameters:
Product Name | UNIPOL-830 Metallographic Grinding and Polishing Machine / Lapping Machine |
Product Model | UNIPOL-830 |
Installation Conditions | 1. Temperature and humidity: 10-85%RH (at 25℃ without condensation) Temperature: 0-45℃. 2. There is no strong vibration source and corrosive gas around the equipment. 3. Power supply: Export standard equipment: AC110/230V 50/60Hz three-pole socket 10A. Domestic standard equipment: AC220V 50Hz national standard three-pole socket 10A (the socket must have a good safety protection grounding wire). 4. Cooling water: The equipment is equipped with a water inlet and a water outlet, and you need to connect the tap water and drainage pipelines by yourself. 5. Air source: no requirement for standard equipment. 6. Workbench: It is recommended to use it on an operating table or desktop with a load-bearing capacity of more than 100kg. 7. Ventilation device: good ventilation environment, no special ventilation device requirements. 8. Auxiliary equipment (need to be purchased separately): Recommended: 1. SKCH-1 precision thickness gauge. 2. SZKD-2 automatic stirring dripper, SKZD-3 suspension dripper. 3. SKCS-1 blow dryer. |
Main Parameters (Specification) | 1. Grinding polishing machine power supply port: AC110/220V conversion (domestic AC110V is invalid). 2. Total power: 180W. 3. Grinding polishing disc diameter: Φ203 mm. 4. Grinding polishing disc speed: 50-600rpm (adjustable). 5. Polishing disc station: 1 station. 6. Spindle drive motor: DC110V 165W. 7. Control mode: single chip microcomputer + button. Remarks: 1. The power supply of the equipment is divided into export and domestic power supply. The actual power supply parameters are subject to the label attached to the back of the product. 2. Various grinding polishing discs, special fixtures, special parts, etc. can be customized according to user requirements. |

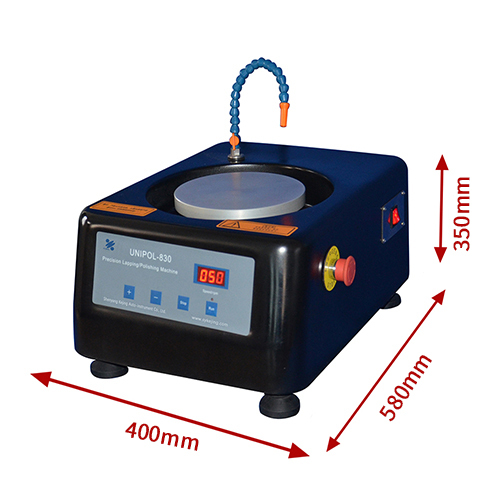

Product Dimension And Weight | 8. Product specifications: Dimensions: L400×W580×H350mm. Net weight: ≈24kg.
|
Standard accessories:
No. | Name | Qty | Picture |
1 | Magnetic Sheet | 2 pcs |  |
2 | (Steel) Lapping Buffer Sheet | 5 pcs |  |
3 | Sandpaper | 8 pcs |  |
4 | Polishing Pad (Nubuck Leather, Synthetic Leather,) | 1 pcs each |   |
5 | Diamond Polishing Paste | 1 pcs |  |
Optional accessories:
No. | Name | Functional type | Picture |
1 | SKZD-2 Slurry Feeder | (Optional) |
|
2 | SKZD-3 Slurry Feeder | (Optional) | |
3 | SKZD-4 Automatic Slurry Feeder | (Optional) | |
4 | SKZD-5 Slurry Feeder | (Optional) | |
5 | Magnetic Resin Diamond Lapping Plate | (Optional) | |
6 | UNIPOL-01 Type TEM Wedge Grinding And Polishing Fixture | (Optional) |  |
Warranty:
One year limited with lifetime support (not including rusted parts due to inadequate storage conditions).
