Mini Automatic Grinder And Polisher
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 10 working days
Supply capacity 50 sets
1.Small precision grinding and polishing machine is suitable for grinding and polishing of transmission electron microscope samples, and can grind samples to 50μm.
2.Small grinding machine can adjust the pressure within a certain range, and will not damage the sample due to excessive grinding and polishing pressure.
3.Small grinding machine can set the grinding time, and the machine will stop automatically when the grinding time is reached, so it can be unattended.
Introduction of small grinding machine:

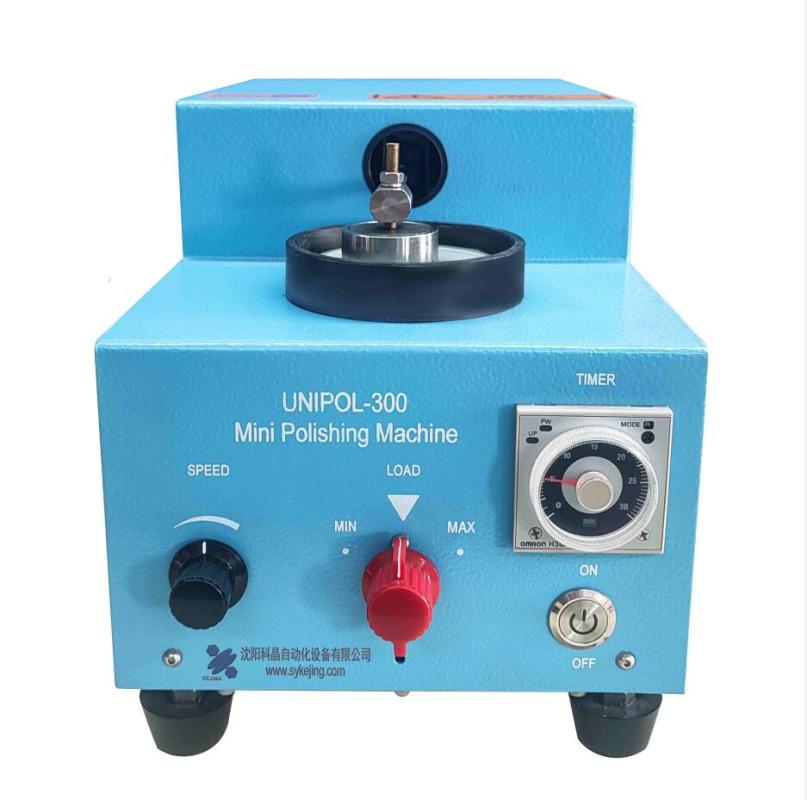

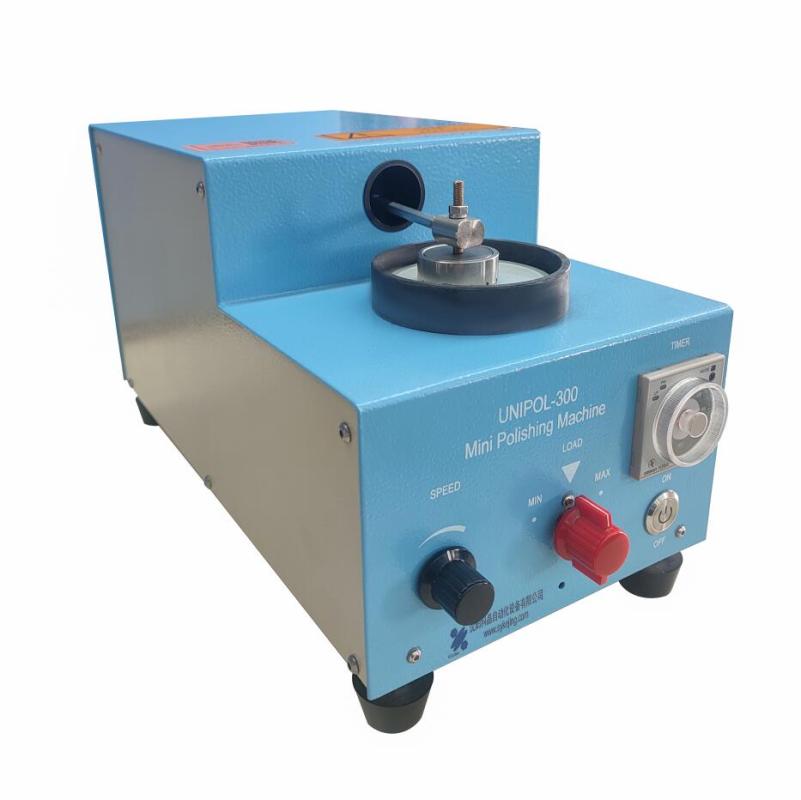

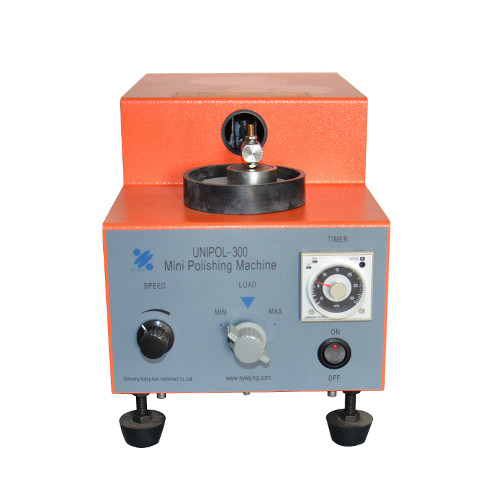

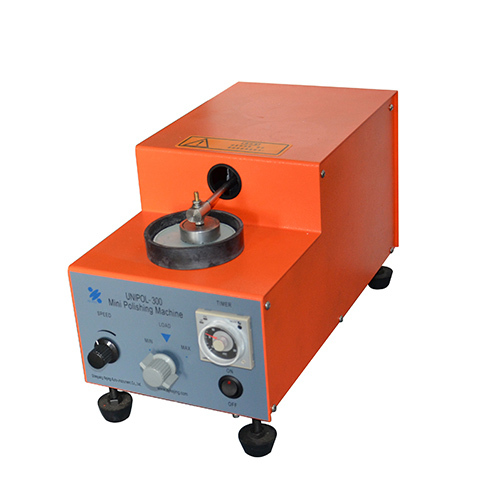

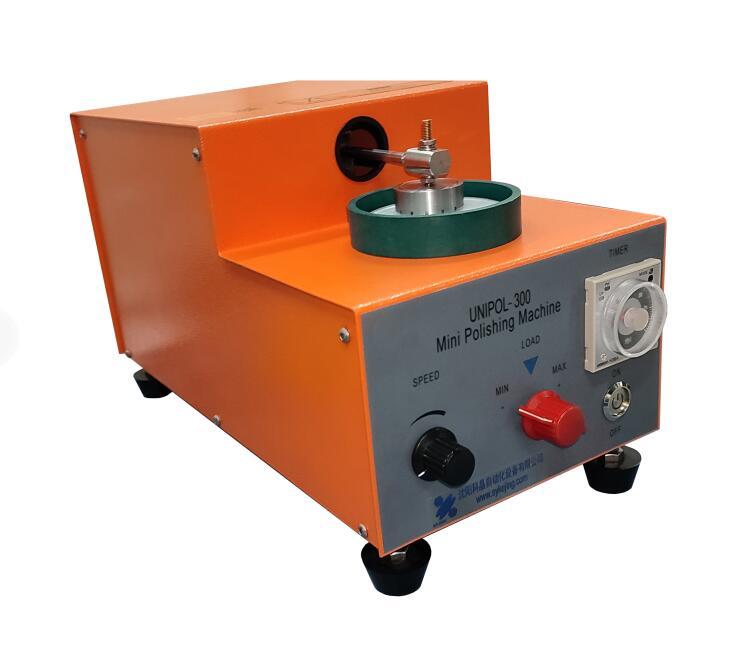

UNIPOL-300 small grinding machine is a small automatic metallographic grinding and polishing machine designed by our company for researchers in various laboratories. Small grinding machine are mainly used to grind small metallographic samples, especially suitable for grinding and polishing of transmission electron microscope samples, and can grind samples to 50μm. Grinding and polishing machines for metal apply pressure to the sample to be ground through a spring, and the pressure can be adjusted within a certain range, so that the sample will not be damaged due to excessive grinding and polishing pressure. The grinding speed of grinding and polishing machines for metal can be adjusted within a certain range, and different grinding speeds can be used according to different types of samples. The grinding time can be set during the grinding process, and the machine will automatically stop when the grinding time is reached, which can be realized without supervision. Grinding and polishing machines for metal can grind a wide range of materials, and can be used for grinding and polishing of crystals, ceramics, glass, metals, rock samples, mineral samples, PCB boards, infrared optical materials (such as zinc selenide, zinc sulfide, silicon, germanium and other crystals), refractory materials, composite materials, polymer materials, etc. Grinding and polishing machines for metal can not only perform automatic grinding and polishing, but also have high precision and high speed. They are common equipment in metallographic laboratories and electron microscope laboratories at home and abroad.
Main features of small precision grinding and polishing machine:
The action of small precision grinding and polishing machine imitates manual operation. The lower plate does not move, and the upper pressure rod drives the sample to do "8"-shaped reciprocating motion. The grinding pressure and speed can be adjusted. The operation is convenient and simple. Small grinding machine can be unattended.
Technical parameters of small grinding machine:
Product Name | UNIPOL-300 Mini Precision Grinder / Polisher |
Product Model | UNIPOL-300 |
Installation Conditions | 1. Temperature and humidity: 10-85%RH (at 25℃ without condensation) Temperature: 0-45℃. 2. There is no strong vibration source and corrosive gas around the equipment. 3. Power supply: single phase: AC100-240V 50/60Hz national standard two-pole socket 10A (the power supply voltage requirement is determined by the input of the "power adapter"). 4. Cooling water: no requirement for standard equipment. 5. Air source: no requirement for standard equipment. 6. Auxiliary equipment (purchased separately): Recommended: HEATER-3040 or 250 heating platform, SKCH-1 precision thickness gauge. 7. Workbench: It is recommended to use it on an operating table or desktop with a load-bearing capacity of more than 50kg. 8. Ventilation device: good ventilation environment, no special. ventilation device requirements. |
Main Parameters (Specification) | 1. Small precision grinding and polishing machine power supply port: DC24V 2.5A (standard "power adapter"). 2. Total power of small precision grinding and polishing machine: 25W. 3. Grinding and polishing disc diameter: Φ70 mm. 4. Sample tray diameter: Φ30 mm. 5. Number of stations: 1. 6. Spindle drive motor: DC24V 0.8A 10W 3000/60K=50rpm. 7. Sample tray swing speed: 0-160 times/min (stepless speed regulation). 8. Sample Max diameter: Φ30mm. 9. Sample Max thickness ≤2mm. 10. Control mode: timed operation (countdown). |

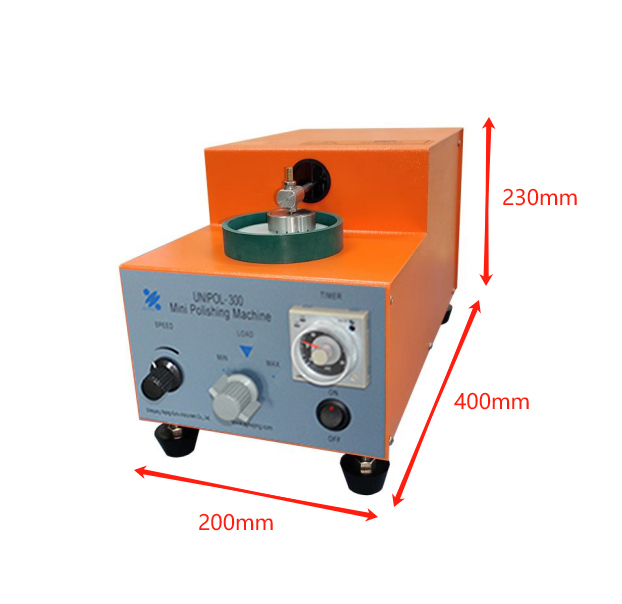

Product Dimension and Weight | Dimension: 400mm×200mm×230mm. Weight: 11kg.
Notes： 1. Specifications of the standard "power adapter": IN: AC100-240V 50/60Hz OUT: DC-24V 2.5A, the actual power supply of the small grinding machine is subject to the label on the back of the product. 2. Various grinding and polishing discs, special sample trays, fixtures, special parts, etc. can be customized according to user requirements. |
Warranty:
One year limited with lifetime support (not including rusted parts due to inadequate storage conditions).
