Multi Purpose Precision 8" Polishing Machine
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 10 working days
Supply capacity 50 sets
1. The grinding and polishing machine provides two grinding methods. You can choose to grind with a grinding disc and abrasive, or use a polishing disc with sandpaper for grinding, which is more adaptable.
2. The grinding and polishing machine uses magnetic adsorption to fix the sandpaper or polishing pad, ensuring a more stable clamping effect.

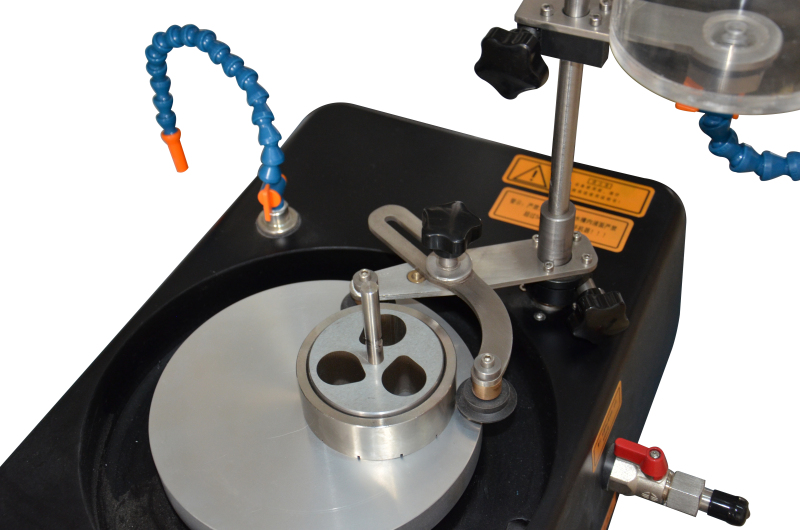

3. The grinding and polishing machine is equipped with a peach-shaped hole loading plate, which is more convenient for grinding and polishing inlaid or round metallographic specimens.
Introduction of precision auto lapping and polishing machine:
UNIPOL-810metallographic polishing machines are used for grinding and polishing crystals, metals, ceramics, glass, rock samples, mineral samples, PCB boards, infrared optical materials (such as zinc selenide, zinc sulfide, silicon, germanium and other crystals), refractory materials, composite materials and seals, such as optical components, compound semiconductor substrates, ceramic substrates, sapphire, yttrium vanadate, lithium niobate, gallium arsenide. Metallographic polishing machines are equipped with peach-shaped hole carriers, which makes it more convenient to grind and polish inlaid or round metallographic specimens. Metallographic polishing machines can be manually polished or automatically polished by the robot arm to control the sample carrier. The direction of the sample is not changed. Metallographic polishing machines is a multi-purpose grinding and polishing equipment. Metallographic polishing machines can grind samples by grinding discs and abrasives, or by polishing discs and sandpapers. Sandpaper or polishing pads are clamped by magnetic adsorption, which is convenient for loading and unloading. The specific choice of sandpaper grinding or abrasive grinding can be selected according to the material of the sample to be ground.
Main features of metallographic polishing machines:
1. The precision auto lapping and polishing machine is equipped with a slurry feeder to achieve automatic dripping of the grinding liquid.
2. Stepless speed regulation, digital display.
3. The precision auto lapping and polishing machine is easy and quick to operate.
4. The precision auto lapping and polishing machine is equipped with a swing arm, no manual grinding and polishing is required.
Technical parameters of grinding and polishing machine:
Product Name | UNIPOL-810 Precision Polishing Machine / Lapping Machine |
Product Model | UNIPOL-810 |
Installation Conditions | 1. Temperature and humidity: 10-85%RH (at 25℃ without condensation) Temperature: 0-45℃. 2. There is no strong vibration source and corrosive gas around the grinding and polishing machine. 3. Power supply: Export standard equipment: AC110/240V 50/60Hz three-pole socket 10A. Domestic standard equipment: AC220V 50Hz national standard three-pole socket 10A (the socket must have a good safety protection grounding wire). 4. Cooling water: The grinding and polishing machine is equipped with a water inlet and a drain, and you need to connect the tap water and drainage pipelines by yourself. 5. Air source: standard equipment is not required. 6. Workbench: It is recommended to use it on an operating table or desktop with a load-bearing capacity of more than 100kg. 7. Ventilation device: good ventilation environment, no special ventilation device requirements. 8. Auxiliary equipment (need to be purchased separately): Recommended: 1. HEATER-3040 or 250 heating platform. 2. SKCH-1 precision thickness gauge. 3. GPC-series precision grinding and polishing controller (manipulator). 4. SZKD-series dripper. 5. SKCS-1 blow dryer. |
Main Parameters (Specification) | 1. Grinding and polishing machine power supply port: AC110/220V conversion (domestic AC110V is invalid). 2. Total power: 175W. 3. Grinding and polishing disc diameter: Φ203 mm. 4. Flat sample tray diameter: Φ80 mm. 5. Peach-shaped hole sample tray diameter: Φ80 mm, peach-shaped inner hole 3xΦ26 mm. 6. Number of stations (positioning robot arm): 1 station. 7. Drip bucket volume: 1L. 8. Spindle drive motor of precision auto lapping and olishing machine: DC110V 165W. 9. Grinding and polishing disc speed: 20-600rpm (stepless speed regulation). Notes: 1. The power supply of precision auto lapping and polishing machine is divided into two types: Export and domestic. The actual power supply parameters are subject to the label attached to the back of the product. 2. Various grinding and polishing discs, special fixtures, special parts, etc. Can be customized according to user requirements. |

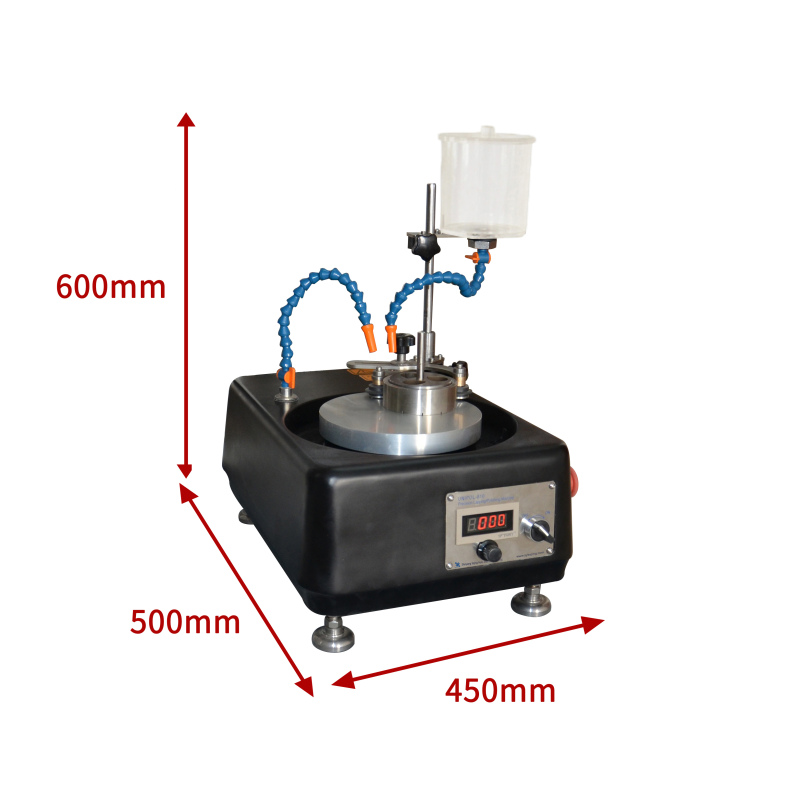

Product Dimension and Weight | 10. Product specifications: Dimensions: L450×W500×H600mm. Net weight: ≈35Kg.
|
Standard accessories:
No. | Name | Qty | Picture |
1 | Cast Iron Polishing Plate | 1 pcs |  |
2 | Cast Aluminum Polishing Plate | 1 pcs |  |
3 | Sample Holder / sample holding plate | 1 pcs |  |
4 | Condition Ring | 1 pcs |  |
5 | Peach-Shape Hole Sample Holder | 1 set |  |
6 | Magnetic Sheet
| 2 pcs |  |
7 | (Steel) Lapping Buffer Sheet | 5 pcs |  |
8 | Sandpaper | 8 pcs |  |
9 | Polishing Pad (Nubuck Leather, Synthetic Leather,) | 1 pcs each |  |
10 | Diamond Polishing Paste | 1 pcs |  |
11 | Corundum Grinding Powder | 0.5kg |  |
12 | Wax Bar | 4 pcs |  |
Optional accessories:
No. | Name | Functional type | Picture |
1 | SKZD-2 Slurry Feeder | （optional） |
|
2 | SKZD-3 Slurry Feeder | （optional） |
|
3 | SKZD-4 Automatic Slurry Feeder | （optional） | |
4 | SKZD-5 Slurry Feeder | （optional） |
|
5 | YZXZ-12 Stirring Circulation Pump | （optional） | |
6 | Precision Thickness Gauge | （optional） |
|
7 | GPC-50A Precision Polishing Controller | （optional） | |
8 | UNIPOL-01 Type TEM Wedge Grinding and Polishing Fixture | （optional） |
|
Warranty:
One year limited with lifetime support (not including rusted parts due to inadequate storage conditions).
