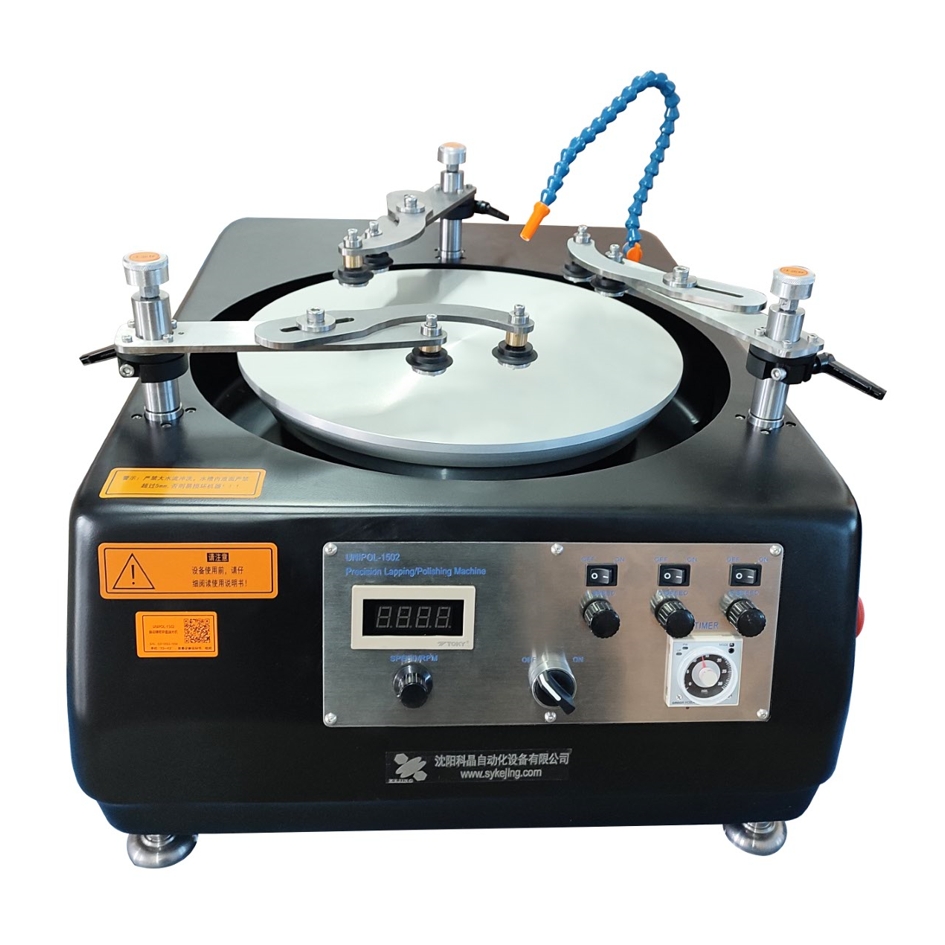

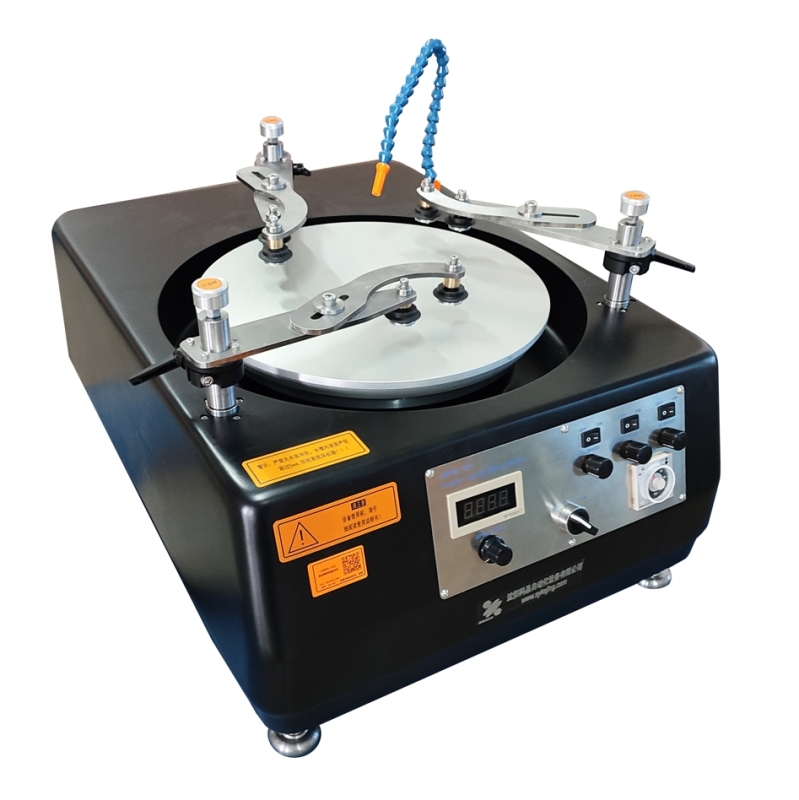

15" Precision Polishing Machine
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 10 working days
Supply capacity 50 sets
1. The precision grinding and polishing machine is equipped with three processing stations, which can process multiple samples at the same time, significantly improving production efficiency.
2. The precision grinding and polishing machine is used in conjunction with accessories such as the GPC-100A precision polishing fixture to achieve mass production, so that each product has a high-quality surface polishing effect.
3. The fully automatic design of this precision grinding and polishing machine reduces manual intervention and achieves a precise and efficient grinding and polishing process.
Introduction of grinding and polishing equipment:
UNIPOL-1502 automatic precision grinding and polishing equipment is used for grinding and polishing samples of crystals, ceramics, metals, glass, rock samples, mineral samples, PCB boards, infrared optical materials (such as zinc selenide, zinc sulfide, silicon, germanium and other crystals), refractory materials, composite materials and other materials. Grinding and polishing equipment is one of the ideal grinding and polishing equipment for scientific research and production experiments. The grinding and polishing equipment is equipped with a Ø381mm grinding and polishing disc and three processing stations, which can be used for grinding and polishing discs ≤Ø110mm or rectangular planes with a diagonal length of ≤110mm. During the grinding process, the two processing stations of the grinding and polishing equipment can swing left and right at a certain frequency, and at the same time push the carrier block to swing left and right. The carrier block rotates while revolving with the grinding disc, so that the sample moves irregularly. The grinding and polishing equipment makes the surface quality of the sample uniform after grinding. The carrier block equipped with grinding and polishing equipment is a precision cylindrical metal block with high flatness and parallelism, which makes the surface of the sample after grinding also have high flatness, and will not chamfer the edge of the sample, which is especially suitable for samples with high edge requirements. If the grinding and polishing equipment is equipped with appropriate accessories (GPC-100A precision grinding and polishing controller), it can mass-produce high-quality surface grinding and polishing products. It is especially suitable for grinding and polishing wafer samples with a diameter of ≤110mm when used with GPC-100A. Grinding and polishing equipment can grind samples by grinding disc plus abrasive, or by polishing disc with sandpaper. Sandpaper or polishing pad is clamped by magnetic adsorption, which is convenient for loading and unloading. The specific choice of sandpaper grinding or abrasive grinding can be selected according to the material of the sample to be ground.
Main features of precision automatic lapping machine:
1. Ultra-flat polishing disc (flatness is less than 0.0025mm per 25mm×25mm).
2. Ultra-precision rotating axis (pallet end jump is less than 0.012mm).
3. The precision automatic lapping machine has three processing stations.
4. The spindle rotation of the precision automatic lapping machine adopts stepless speed control, and a digital display is provided to display the number of revolutions in real time.
5. The precision automatic lapping machine is equipped with a timer to accurately control the working time (between 0-300h).
6. The precision automatic lapping machine can be equipped with an automatic drip feeder or a circulation pump to make grinding and polishing more convenient and quick.
Technical parameters of precision grinding and polishing machine:
Product Name | UNIPOL-1502 Automatic Precision Grinding and Polishing Machine |
Product Model | UNIPOL-1502 |
Installation Conditions | 1. Temperature and humidity: 10-85%RH (at 25℃ without condensation) Temperature: 0-45℃. 2. There is no strong vibration source and corrosive gas around the precision grinding and polishing machine. 3. Power supply of precision grinding and polishing machine: Export standard equipment: AC110/240V 50/60Hz three-pole socket 10A. 4. Domestic standard equipment: AC220V 50Hz national standard three-pole socket 10A (the socket must have a good safety protection grounding wire). 5. Cooling water: The precision grinding and polishing machine is equipped with an inlet and a outlet, and you need to connect the tap water and drainage pipeline by yourself. 6. Air source: There is no requirement for standard equipment. 7. Workbench: It is recommended to use the precision grinding and polishing machine on an operating table or desktop with a load-bearing capacity of more than 150kg. 8. Ventilation device: Good ventilation environment, the precision grinding and polishing machine does not require special ventilation devices. 9. Auxiliary equipment (purchased separately): Recommended: 1. HEATER-3040 or 250 heating platform. 2. SKCH-1 precision thickness gauge. 3. GPC-series precision grinding and polishing controller (manipulator). 4. SZKD-series dripper. 5. SKCS-1 blow dryer. |
Main Parameters (Specification) | 1. Power supply port of precision automatic lapping machine: AC110/220V conversion (domestic AC110V is invalid). 2. Total power: 405W. 3. Grinding and polishing disc diameter: Φ381 mm. 4. Sample tray diameter: Φ110 mm. 5. Number of stations of precision automatic lapping machine (swing mechanism): 3 stations. 6. Sample tray swing speed: 0-9 times/min (stepless speed regulation). 7. Spindle drive motor of precision automatic lapping machine: DC110V 375W. 8. Grinding and polishing disc speed of precision automatic lapping machine: 10-125rpm (stepless speed regulation). 9. Control mode of precision automatic lapping machine: timed operation (countdown). |

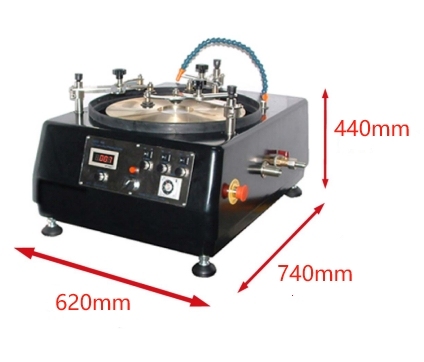

Product Dimension And Weight | 10. Product specifications: Dimensions: L620×W740×H440mm. Weight: ≈90K.
|
Standard accessories of grinding and polishing equipment:
No. | Name | Qty | Picture |
1 | Cast Iron Polishing Plate | 1 pcs | |
2 | Cast Aluminum Polishing Plate | 1 pcs |
|
3 | Sample Holder / Sample Holding Plate | 2 pcs | |
4 | Condition Ring | 2 pcs |
|
5 | Polishing Pad (Nubuck Leather, Synthetic Leather, Polyurethane) | 1 pcs each | |
6 | Corundum Grinding Powder | 0.5kg |
|
7 | Wax Bar | 4 pcs |
|
Optional accessories of grinding and polishing equipment:
No. | Name | Functional type | Picture |
1 | SKZD-2 Slurry Feeder | (optional) | |
2 | SKZD-3 Slurry Feeder | (optional) |
|
3 | SKZD-4 Automatic Slurry Feeder | (optional) | |
4 | SKZD-5 Slurry Feeder | (optional) | |
5 | YZXZ-12 Stirring Circulation Pump | (optional) | |
6 | Precision Thickness Gauge | (optional) | |
7 | GPC-50A Precision Polishing Controller | (optional) | |
8 | Ceramic Lapping Plate | (optional) |
|
9 | Glass Lapping Plate | (optional) | |
10 | Magnetic Resin Diamond Polishing Sheet | (optional) | |
11 | Wax-Free Lapping Plate | (optional) |
|
Warranty:
One year limited with lifetime support (not including rusted parts due to inadequate storage conditions).
