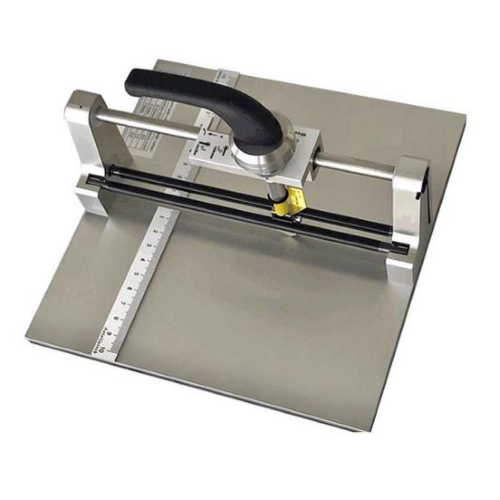

Precision Manual Diamond Wafer Scriber
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 22 working days
Supply capacity 50 sets
1.Manual diamond wafer scriber is easy to operate and can be used according to the product instructions.
2.If you encounter any problems during the use of Manual diamond wafer scriber, our professional technicians can provide remote guidance.
3.Manual diamond wafer scriber is manufactured using advanced technology to ensure high product quality and extend product life.
Introduction of precision glass and wafer cutters:
SYJ-DS100 precision manual wafer scriber is suitable for cutting thin single crystal substrates, such as silicon, sapphire, Ge, LiNbO3 and LiTaO3 wafers, Cutting pressure of wafer cutter can be adjusted by a spring with the cutting distance of 100mm.
Technical parameters of precision glass cutter:
Product Name | SYJ-DS100 Precision Manual Wafer Scriber |
| Model of precision glass and wafer cutters | SYJ-DS100 |
| Installation conditions of Laboratory glass cutting machine | 1.precision glass and wafer cuttersis required to be used at a temperature of 25℃±15℃ and a humidity of 55%Rh±10%Rh. 2. Water: None. 3. Electricity: None. 4. Gas: None. 5. Workbench size of manual diamond wafer scriber: 300mm*300mm. 6. Ventilation device: Required. |
Cutting procedure of wafer cutter | |
| 1. Adjust the height of the diamond scriber. 2. Adjust the pressure of the spring. 3. Place the sample for scribing. | |
Replace the diamond scriber | |
1. Rotate the height adjustment disk and spring pressure adjustment disk of the Laboratory glass cutting machine to the origin 0. 2. Move the slider to the diamond scriber replacement position and remove the guide rod. 3. Turn the handle 90 degrees to the left. 4. Loosen the screw with a hexagonal wrench and remove the diamond scriber. 5. Install a new diamond scriber and tighten the screw. 6. Put the handle back to the scriber position and set the guide rod.
| |
Dimension of precision glass cutter | |
Dimension of precision glass cutter: 210 mm (L) x 210 mm (W) x 140 mm (H) |
|
Warranty:
One year limited with lifetime support (not including rusted parts due to inadequate storage conditions)
