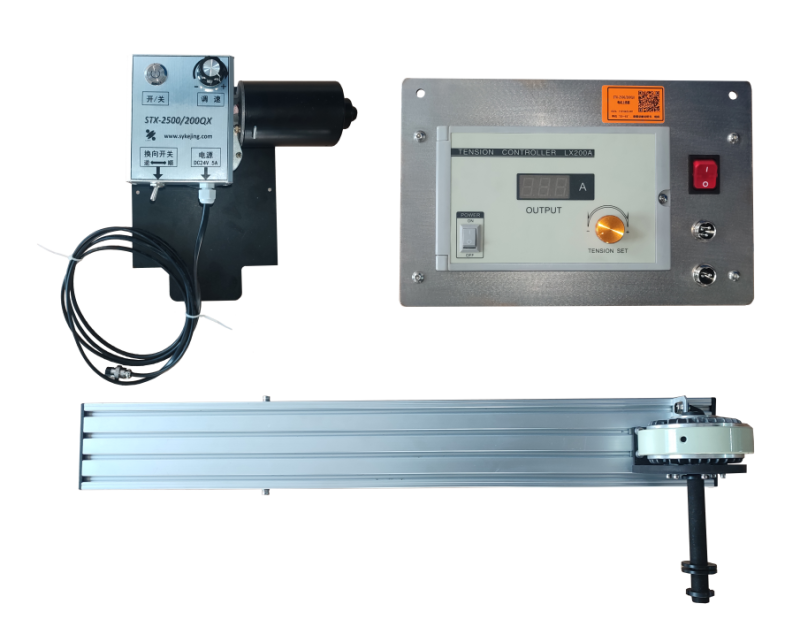

Electric Wire Installer -2

STX-2500-100QX/200QX electric wire installer is suitable for STX-100QX,STX-200QX diamond wire saw. It adopts a low-speed and large-torque motor to drive the spooler, which can rotate clockwise and counterclockwise. The electric magnetic powder damper controls the rotational resistance through current. When in use, install the drive motor together with the fixing plate onto the pulley side of the spooler (remove the original fixing plate), and fix the magnetic powder damper on the side of the device.

  • Shenyang Kejing
  • Shenyang, China
  • 10 working days
  • 50 sets
  • Information


Technical Parameters

Product name

STX-2500-100QX/200QX electric wire installer

Product model

STX-2500-100QX/200QX

Conditions for Installation

1.This equipment is required to be used with a temperature of 0-45℃, and a humidity of 10-85%RH (at 25℃ no condensation)

2.There is no strong source and corrosive gas around the equipment.

3.Power supply: single-phase: AC220V 50Hz 10A must be well grounded.

Major parameters

(specification)

1. Spooler drive motor: 24V, 80W, 30r/min

2. Magnetic powder damper: 0--6NM, controller adjustment range: 0--0.8A

3. Damper controller: AC220V control range: 0--24(Constant voltage model)

4. Drive motor dimension: 250*150*150mm

5. Magnetic powder damper dimension: 240*150*1140mm

Wire installer driving part weight: 3kg

Wire installer driving part weight: 7kg
