Swing Sample Fixture for Diamond Wire Saw

Brand Shenyang Kejing

Product origin Shenyang, China

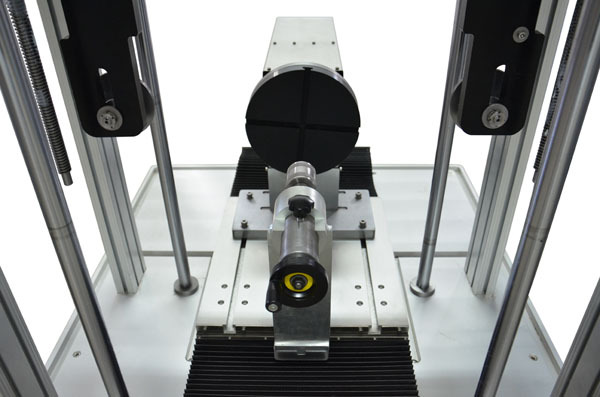

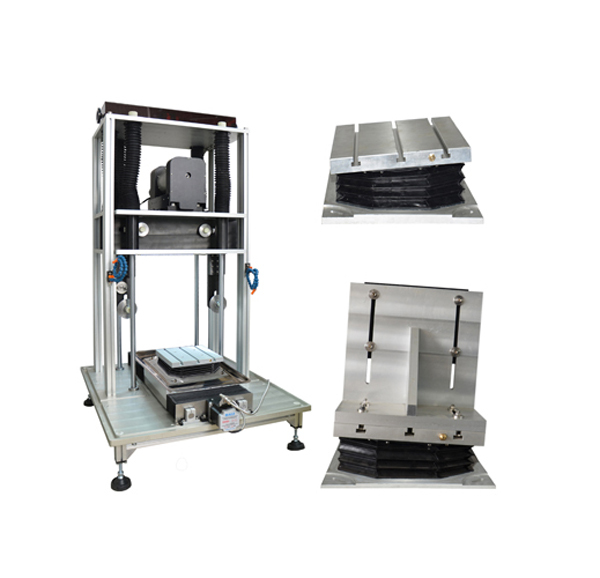

STX-1200-YB swing sample fixture is specially developed and designed for STX-1203 automatic diamond wire saw. It is mainly used for cutting high hardness materials (such as silicon carbide, silicon nitride, alumina ceramics, zirconia, sapphire, Jade, etc.) and low hardness materials (such as barium fluoride, graphite, KDP, etc.). It can also be used for precision cutting of brittle materials such as crystals, ceramics, glass, thermoelectric materials (such as bismuth telluride, lead telluride, silicon germanium alloys, etc.), rock samples, mineral samples, PCB boards, refractory materials, composite materials, biological and biomimetic composite materials or used for cutting difficult-to-cut materials such as metal materials, rubber and other organic materials. STX-1200-YB swing sample fixture swings left and right during operation. It can reduce the contact area between the cutting wire and the sample, prolong the contact time, improve roughness and flatness of the sample surface, and reduce wire cutting traces on the sample. At the same time, STX-1200-YB swing sample fixture is equipped with an elevated frame, which can increase swinging extent of the sample and increase the wire swing speed, thereby increasing the grinding efficiency per unit time and improving the cutting speed of the sample.
