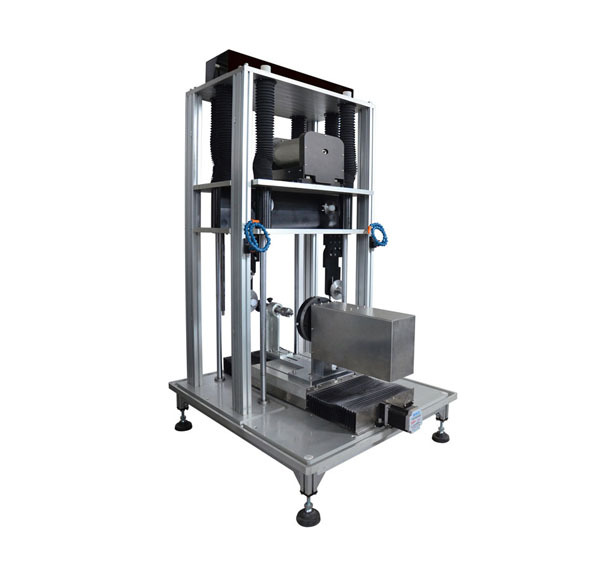

Axis Swing/Rotary Sample Fixture and Rotation Control System

Brand Shenyang Kejing

Product origin Shenyang, China

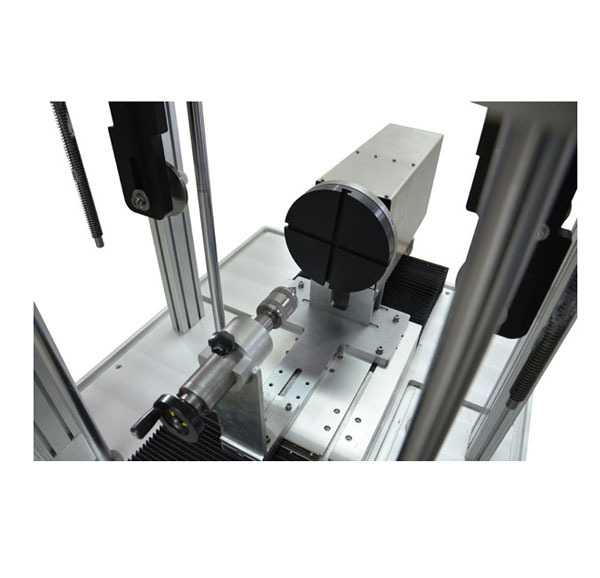

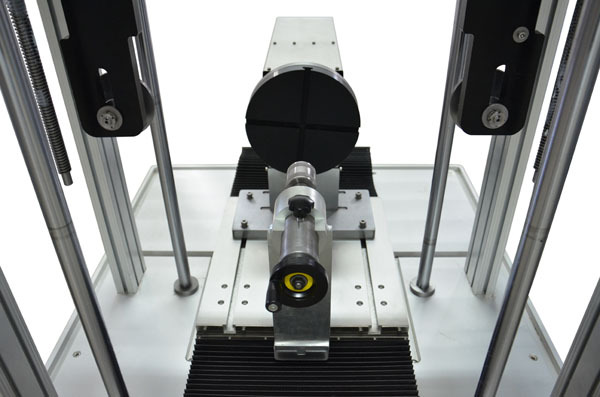

STX-1200-A axis swing/rotary sample fixture is specially developed and designed for STX-1203 automatic diamond wire saw. It is mainly used for cutting high hardness materials (such as silicon carbide, silicon nitride, alumina ceramics, zirconia, sapphire, Jade, etc.) and low hardness materials (such as barium fluoride, graphite, KDP, etc.). The STX-1200-A axis swing/rotary sample fixture can perform both swing cutting and rotary cutting in the opposite direction to that of the working diamond wire. For a larger or heavier sample, the top part of the sample should be fixed with a spindle, so the sample top will rotate simultaneously with the spindle. In this way, the cutting efficiency per unit time is improved, the actual cutting time is shortened, the service life of the diamond wire is prolonged, the roughness and flatness of the cutting surface is significantly improved, and the cutting wire traces on sample surface are reduced, resulting in a high-quality cutting surface.
