Through-Microscope

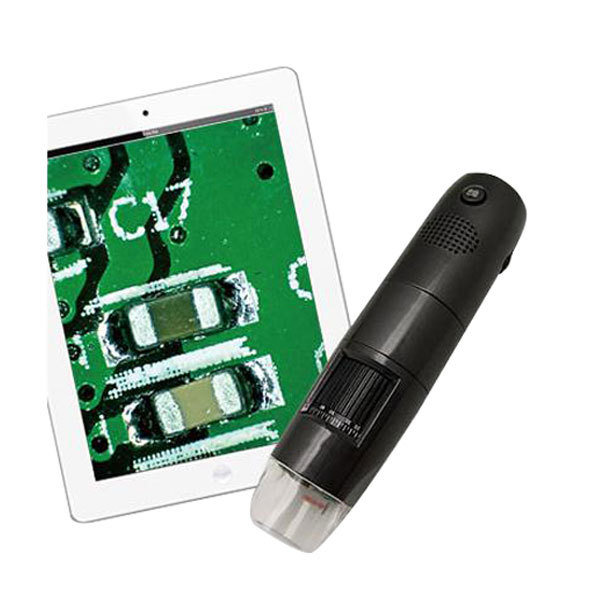

3R Wireless WIFI Digital Microscope allows you to study tiny objects. WiFi wireless connection not only frees yourself from wired connection, but also allows others to share wireless connection to watch the tiny world under the microscope together. 3R wireless WIFI digital microscope can be used together with STX series diamond wire saws and SYJ-400CNC dicing saw manufactured by our company.

Brand: Shenyang Kejing
Product origin: Shenyang, China
Delivery time: 10 working days
Supply capacity: 50 sets

Information

Main Features

1. Data transmission can support Windows XP /7.0 /8.0 (wired/wireless transmission), Mac, IOS and Android systems, with no less than 5 sets of corresponding software.

2. It is used together with diamond wire saws (such as STX-201, STX-202, STX-402) and dicing saws (such as SYJ-400, SYJ-800CNC) to improve the cutting accuracy, which is convenient for the adjustment of the blade when cutting small and difficult-to-take samples.

Technical Parameters

Product Name	3R Wireless WIFI Digital Microscope
Product Model	3R
Major Parameters (Specification)	WiFi wireless features 1. Photo and video pixels: 1.3 million pixels 2. Resolution: 1280x1024(MJPG), 640×480, 320×240 3. Compatible with IEEE 802.11 b/g/n standard 4. Wireless transmission distance: more than 5 meters 5. Transmission power: 11n HT40 MCS7: +13 dBm 11b CCK: +18 dBm 11g OFDM: +15 dBm 6. Data rate: 802.11n: up to 150Mbps 802.11b: 1, 2, 5, 5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 7. maximum temperature of the equipment: under full speed operation, less than 60℃ (Celsius) 8. Frequency range: 2.400 ~ 2.4835GHz 9. Power consumption: maximum 2.5W 10. Video frame rate: 10fps~30fps 11. Lithium battery: continuous working time is about 2 hours, full charging time is about 2 hours 12. Battery service life: 500 cycles 13. Charging power supply: DC5.0V/1A camera features 1. Image sensor: CMOS 1/4” 2. Optical parameters: 3. Exposure: Automatic 4. Gamma Correction: Automatic 5. Aperture: Automatic 6. White balance: automatic 7. Black Reference: Automatic 8. Flicker avoidance: automatic 9. Defect recognition: automatic 10. Color Saturation: Automatic Microscopic features 1. Adjustable magnification range: 10 times to 200 times 2. Object distance range: 8~300mm 3. Focusing range: 8~300mm 4. Lighting: 8 warm white LED, brightness adjustable 5. Lens: HD microscope lens 6. Dimension: 3mm (diameter)×142mm (length) 7. Weight: about 88 grams Wired USB Features 1. Photo and video pixels: 1.3 million pixels 2. Resolution: 1280×1024, 640×480, 320×240 3. Computer interface: USB 2.0 4. Mini USB cable: 1.2 meters

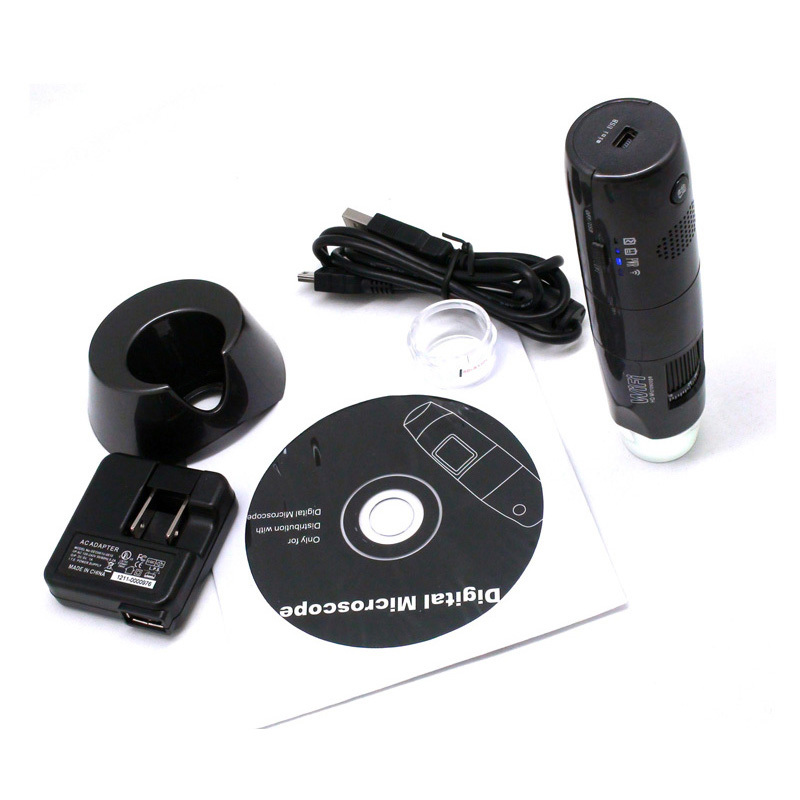

Product Accessories	1. WiFi wireless microscope main body 2. MiniUSB cable 3. Software CD and operation manual 4. Simple plastic seat/base 5. Transparent corrective ruler 6. two transparent parts for auxiliary focusing
