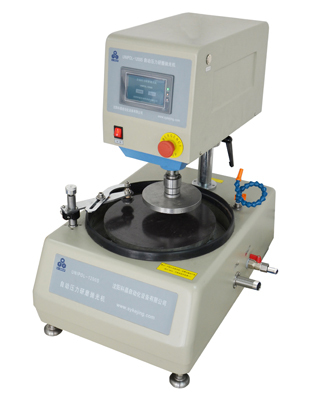

Lapping And Polishing Machine With Center Pressure -
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 22 working days
Supply capacity 50 sets
1. The automatic pressure polishing machine has an automatic pressure adjustment function, and the upper limit of the pressure can reach 20kg.
2. The automatic pressure polishing machine is specially designed for thinning and polishing of superhard materials, which can efficiently complete the fine polishing process and improve the quality of sample preparation.
3. The automatic pressure polishing machine can not only grind and polish superhard materials under high pressure, but also grind and polish easy-to-cleave and easy-to-break materials under the action of the manipulator.
Introduction of automatic pressure polishing machine:
Unipol-1200S automatic pressure grinding and polishing machine is mainly used in the field of material research. It is widely used in the laboratories of colleges and universities, scientific research institutes for automatic grinding and polishing of metals, ceramics, glass, infrared optical materials (such as zinc selenide, zinc sulfide, silicon, germanium and other crystals), rock samples, mineral samples, composite materials, organic polymer materials and other materials, as well as small-scale production in factories. Pressure controlled auto lapping polishing machine adopts mechanical pressure, which can make the sample subject to a constant pressure during the grinding process. Pressure controlled auto lapping polishing machine is specially equipped with a manipulator grinding and polishing station, so that the machine can not only grind and polish superhard materials under high pressure, but also grind and polish easy-to-cleave and easy-to-break materials under the action of the manipulator, which broadens the scope of use of the machine. Pressure controlled auto lapping polishing machine can set the grinding and polishing time. When the time is up, the machine automatically stops rotating, so that the machine can be unattended.
Main features of polishing machine for research laboratory:
1. Polishing machine for research laboratory is specially equipped with a manipulator grinding and polishing station.
2. Polishing machine for research laboratory adopts central loading pressure, which is stable and reliable.
3. Polishing machine for research laboratory has excellent performance, simple operation and wide application range.
Technical parameters of automatic pressure polishing machine:
Product Name | UNIPOL-1200S Automatic Pressure Grinding and Polishing Machine |
Product Model | UNIPOL-1200S |
Installation Conditions | 1. Temperature and humidity: 10-85%RH (at 25℃ without condensation) Temperature: 0-45℃. 2. There is no strong vibration source and corrosive gas around the pressure controlled auto lapping polishing machine. 3. Power supply: Single phase: AC220V、 50Hz national standard three-pole socket 10A (the socket must have a good safety protection grounding wire). 4. Cooling water: The pressure controlled auto lapping polishing machine is equipped with a water inlet and a water outlet, and you need to connect the tap water and drainage pipelines by yourself. 5. Air source: No requirement for standard equipment. 6. Workbench: It is recommended to use pressure controlled auto lapping polishing machine on a workbench or desktop with a load-bearing capacity of more than 150kg. 7. Ventilation device: Good ventilation environment, no special ventilation device requirements are required. 8. Auxiliary equipment (purchased separately): Recommended: 1. HEATER-3040 or 250 heating platform. 2. SKCH-1 precision thickness gauge. 3. GPC-80A/100A precision grinding and polishing controller (manipulator). 4. SZKD-series dripper. 5. SKCS-1 blow dryer. |
Main Parameters (Specification) | 1. Power supply port of polishing machine for research laboratory: AC220V, 50Hz. 2. Total power of automatic pressure polishing machine: 550W. 3. Diameter of grinding and polishing disc: Φ300mm. 4. Diameter of fast card sample loading plate: Φ160mm. 5. Diameter of gravity sample loading plate: Φ105mm (flat surface). 6. Number of lower swing stations (swinging mechanical arm): 1 station. 7. Main drive motor of upper plate: DC110V 90W (reduction motor). 8. Main drive motor of lower plate: DC110V 400W. 9. Speed of upper sample loading plate: 10-80rpm (speed adjustable). 10. Speed of lower grinding and polishing disc: 20-240rpm (speed adjustable). 11. Pressure range of upper sample loading plate: Setting range: 0.5-20Kg. 12. Control method of polishing machine for research laboratory: PLC programmer + Touch screen. |

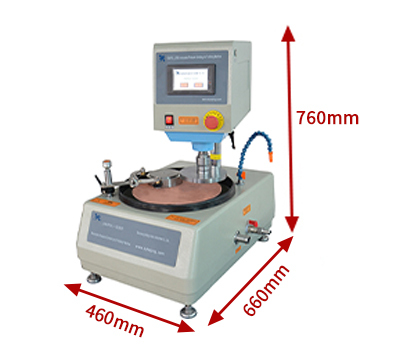

Product Specifications | 13. Product specifications: Size: 460mm×660mm×760mm; Weight: ≈95kg.
|
Standard accessories:
No. | Name | Qty | Picture |
1 | Cast Iron Polishing Plate | 1 pcs | |
2 | Cast Aluminum Polishing Plate | 1 pcs | |
3 | Quick Card Loading Plate | 1 pcs |
|
4 | Gravity Sample Plate | 1 pcs | |
5 | Condition Ring | 1 pcs |
|
6 | Magnetic Sheet | 2 pcs | |
7 | (Steel) Lapping Buffer Sheet | 2 pcs | |
8 | Sandpaper (240#, 400#, 800#, 1500#) | 2 pcs each | |
9 | Polishing Pad (Nubuck Leather, Synthetic Leather, Polyurethane) | 1 pcs each |
|
10 | Diamond Polishing Paste (W2.5) | 1 pcs |
|
Optional accessories:
No. | Name | Functional type | Picture |
1 | SKZD-2 Slurry Feeder | (optional) |
|
2 | SKZD-3 Slurry Feeder | (optional) | |

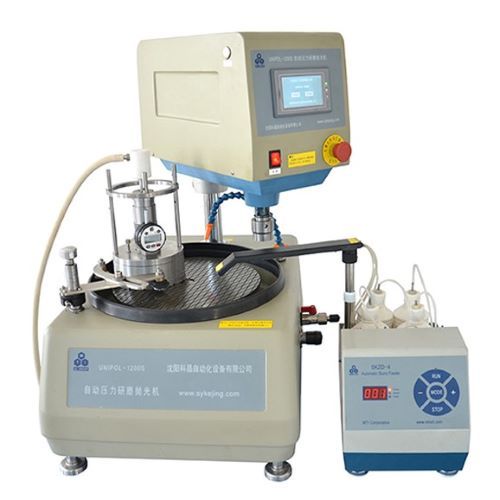

3 | SKZD-4 Automatic Slurry Feeder | (optional) | |
4 | SKZD-5 Slurry Feeder | (optional) | |
5 | YZXZ-12 Stirring Circulation Pump | (optional) | |
6 | Precision Thickness Gauge | (optional) | |
7 | GPC-80A Precision Polishing Controller | (optional) | |
8 | Ceramic Lapping Plate | (optional) | |
9 | Glass Lapping Plate | (optional) | |
10 | Magnetic Resin Diamond Polishing Disc | (optional) | |
11 | Wax-free Lapping Plate | (optional) | |
12 | Peach-shape Hole Sample Holding Plate (φ105mm) | (optional) | |
13 | Special Fixture for UNIPOL-1200S Pressure Lapping Machine | (optional) |  |
