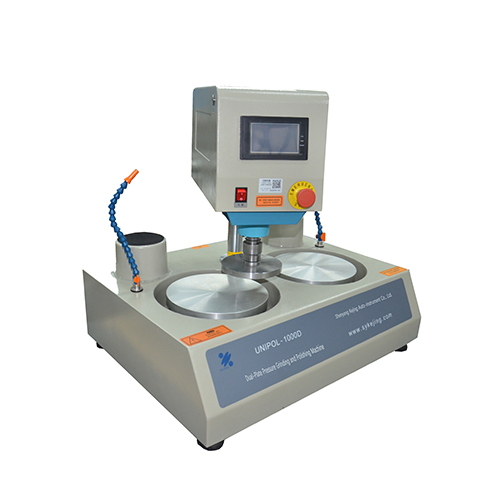

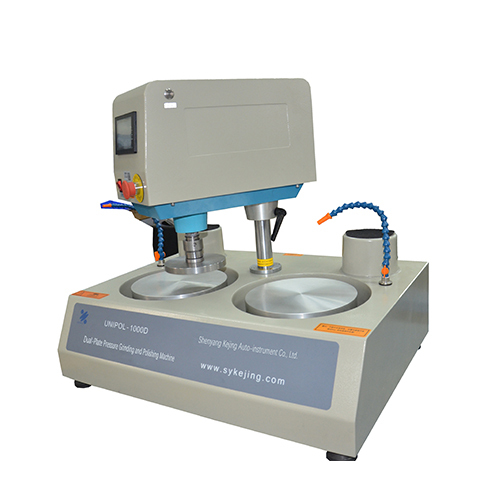

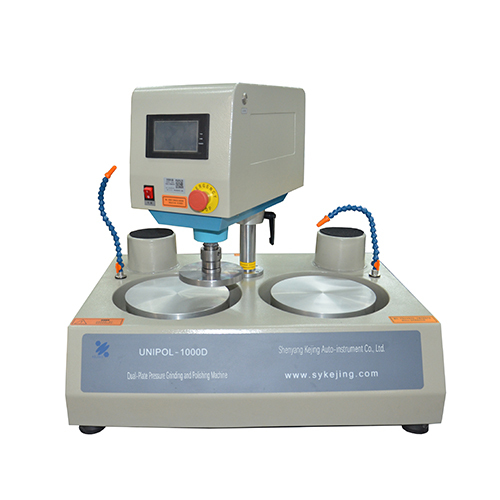

Dual Plates Automatic Pressure Lapping And Polishing Machine
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 22 working days
Supply capacity 50 sets
1.Double disc grinding and polishing machine is equipped with two independent grinding and polishing stations, which can perform grinding and polishing operations separately.
2.Double disc grinding and polishing machine is easy to operate, and the rotation direction of the upper and lower discs can be controlled by the touch screen.
3.Double disc grinding and polishing machine makes little noise during operation, providing a quieter working environment.
Introduction of double plate grinding polishing machine：
UNIPOL-1000D double disc grinding and polishing machine is mainly used in the field of material research. It is widely used in the automatic grinding and polishing of metal, ceramic, glass, infrared optical materials (such as zinc selenide, zinc sulfide, silicon, germanium and other crystals), rock samples, mineral samples, organic polymer materials, composite materials and other material samples in laboratories of colleges and universities, scientific research institutes, as well as small-scale production in factories. Double plate grinding polishing machine has two grinding and polishing stations, which can perform grinding and polishing operations separately, which not only avoids cross contamination but also improves work efficiency. Double plate grinding polishing machine uses mechanical pressure mode to pressurize the ground sample. The pressure is applied to the center of the sample tray so that the entire sample tray is evenly stressed. Double plate grinding polishing machine controls the equipment through a hand-touch control screen. The upper plate can rotate clockwise or counterclockwise, and the lower plate rotates clockwise. The rotation direction of the upper plate can be selected according to the material of the sample tray. Double station laboratory polishing machine has low noise during operation and has a grinding timing function. The machine automatically stops when the time is up, which can realize unattended work.
Main features of double station laboratory polishing machine:
1.Double station laboratory polishing machine is equipped with two grinding and polishing stations, which can perform grinding and polishing operations respectively.
2.Double station laboratory polishing machine adopts central loading pressure, and the pressure is stable and reliable.
3.Double station laboratory polishing machine has the characteristics of excellent performance, simple operation and wide application range.
Technical parameters of laboratory dual plate polishing machine：
Product Name | UNIPOL-1000D Dual-Plate Pressure Grinding and Polishing Machine / Lapping Machine |
Product Model | UNIPOL-1000D |
Installation Conditions | 1. Temperature and humidity: 10-85%RH (at 25℃ without condensation) Temperature: 0-45℃. 2. There is no strong vibration source and corrosive gas around the laboratory dual plate polishing machine. 3. Power supply: Single phase: AC220V 50Hz national standard three-pole socket 10A (the socket must have a good safety protection grounding wire). 4. Cooling water: The laboratory dual plate polishing machine is equipped with an inlet and a outlet, and you need to connect the tap water and drainage pipeline by yourself. 5. Air source: Standard equipment has no requirements. 6. Workbench: It is recommended to use the laboratory dual plate polishing machine on an operating table or desktop with a load of more than 200kg. 7. Ventilation device: Double plate grinding polishing machine requires a good ventilation environment, and no special ventilation device requirements are required. 8. Auxiliary equipment (purchased separately): Recommended: 1. SKCH-1 precision thickness gauge. 2. SZKD-series dripper. 3. YJXZ-12 mixing circulation pump. 4. SKCS-1 blow dryer. |
Main Parameters (Specification) | 1. Power supply port of double disc grinding and polishing machine: AC220V 50Hz. 2. Total power of double plate grinding polishing machine: 850W. 3. Grinding and polishing disc diameter (lower disc): Φ250 mm ×2. 4. Sample loading disc diameter (peach-shaped hole): Disc diameter: φ150mm. peach-shaped hole diameter: φ25.4mm×6. 5. Grinding and polishing station: 2 stations. 6. Main drive motor of grinding and polishing head: DC110V 90W (reduction motor). 7. Main drive motor of lower grinding disc: DC110V 375W ×2. 8. Upper grinding and polishing head speed: Sample loading disc speed: 10-80rpm (speed adjustable). 9. Lower grinding and polishing disc speed: Double disc: 50-400rpm (speed adjustment). 10. Upper grinding and polishing head pressure range: Setting range: 0.5-20Kg. 11. Laboratory dual plate polishing machine control method: Touch screen + Button switch. |

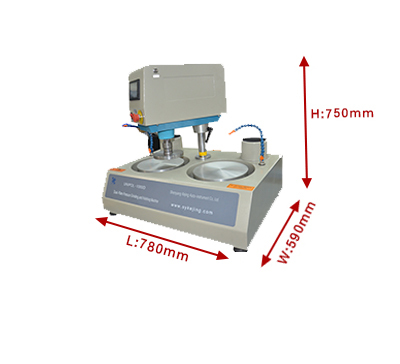

Product Specifications | 12. Product specifications: Dimensions: 780mm×590mm×750mm. Weight: ≈125Kg.
|
Standard accessories of laboratory dual plate polishing machine:
No. | Name | Qty | Picture |
1 | Cast Aluminum Polishing Plate | 2 pcs |
|
2 | Peach-Shape Hole Sample Plate | 1 pcs |
|
3 | Magnetic Sheet | 4 pcs | |
4 | (Steel) Lapping Buffer Sheet | 6 pcs | |
5 | Sandpaper (240#, 400#, 800#, 1500#) | 2 pcs each | |
6 | Polishing Pad (Nubuck Leather, Synthetic Leather, Polyurethane) | 2 pcs each | |
7 | Diamond Polishing Paste | 1 pcs |
|
Optional accessories of double disc grinding and polishing machine:
| No. | Name | Functional type | Picture |
| 1 | Flat Sample Plate | (optional) |  |
| 2 | Condition Ring | (optional) |  |
3 | SKZD-2 Slurry Feeder | (optional) |  |
4 | SKZD-3 Slurry Feeder | (optional) |  |
5 | SKZD-4 Automatic Slurry Feeder | (optional) |  |
6 | SKZD-5 Slurry Feeder | (optional) |  |
7 | YZXZ-12 Stirring Circulation Pump | (optional) |  |
8 | Precision Thickness Gauge | (optional) |  |
9 | Ceramic Lapping Plate | (optional) |  |
10 | Glass Lapping Plate | (optional) |  |
Warranty:
One year limited with lifetime support (not including rusted parts due to inadequate storage conditions).
