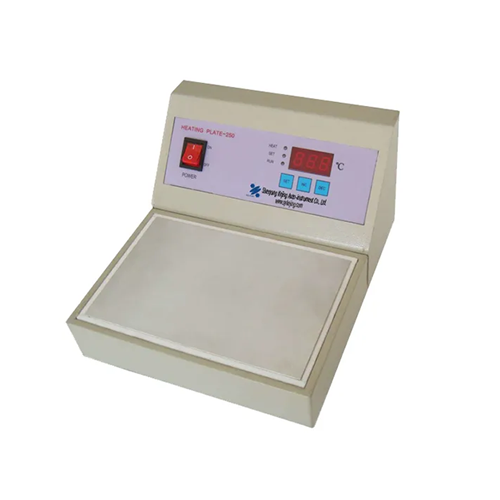

Heating Plate

The heating plate is specially developed for material processing and material research laboratories. It is made of aluminum as a whole, and a single-chip microcomputer is used as the core control component. The temperature is adjustable, and the heat dissipation is fast after use. The heating plate is mainly suitable for materials whose properties will not change during heating, i.e. materials will not be affected by heating. It is especially suitable for heating temperature-sensitive materials (such as crystals, semiconductors, ceramics, metals, etc.).

Brand: Shenyang Kejing
Product origin: Shenyang, China
Delivery time: 10 working days
Supply capacity: 50 sets

Information

Main Features

1. Heating plate is used as the heating part to improve safety.

2. Simple in structure, easy in operation, safe and reliable

Technical Parameters

Product Name	Heating plate

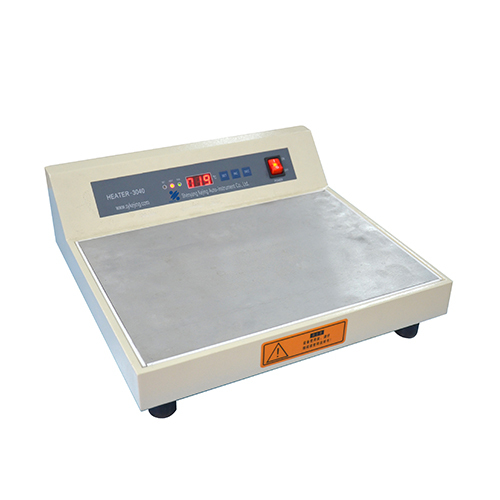

Major Parameters	power supply voltage: AC220V power: 600W (for 250 heating plate), 1200W (for 3040 heating plate) applicable temperature:≤200℃ temperature-control accuracy: ±1℃ heating area: for 250 heating plate: 210mm×150mm for 3040 heating plate: 373mm×273mm

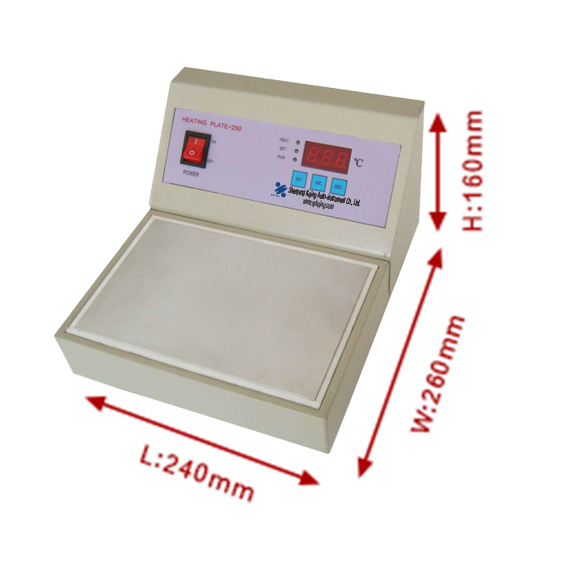

Product Dimension and Weight	Overall Dimension: 250 heating plate: 240mm×260mm×160mm 3040 heating plate: 400mm×373mm×130mm weight: 250 heater: 5.5kg 3040 heater: 13.5kg
