Diamond Wire Saw For Cutting Various Shapes Max. 400mm Square
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 22 working days
Supply capacity 50 sets
1. STX-200QXdiamond wire stone saw is our company's first equipment that uses diamond wire to cut irregular non-metallic materials.
2. Our diamond wire stone saw can set the cutting shape through computer drawing, and then the diamond wire moves along the path set in the drawing to cut out various shapes.
3. Our diamond wire stone saw effectively solves the problem of special-shaped cutting of some difficult-to-process materials in tensile tests.
Advantages of diamond wire saw for stone:
1. Diamond wire saw for stone uses high-quality diamond material, which has extremely high hardness and wear resistance, and can cut various hard materials quickly and efficiently.
2. Our diamond wire saw for stone can maintain extremely high accuracy during the cutting process, the cutting lines are straight, the cutting surface is smooth, and the need for subsequent processing is reduced.
3. Diamond wire cutting can be used for cutting a variety of complex shapes and angles, with strong adaptability. Whether it is straight cutting, curve cutting or special-shaped cutting, it can be easily competent.
4. Diamond wire cutting generates less noise and dust during the work process, which is more environmentally friendly than traditional cutting tools. At the same time, the use of diamond wire cutting is relatively safe, which reduces the occupational risks of operators.
Technical parameters of diamond wire stone saw:

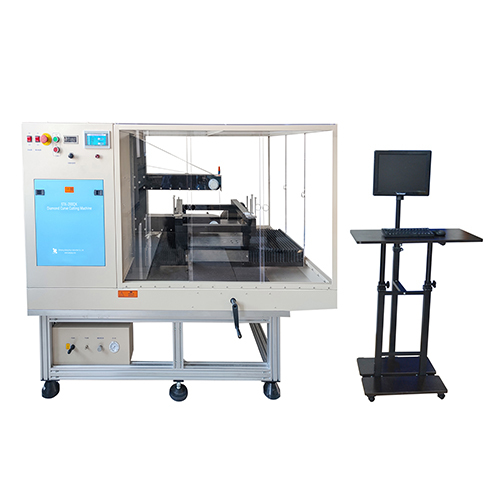

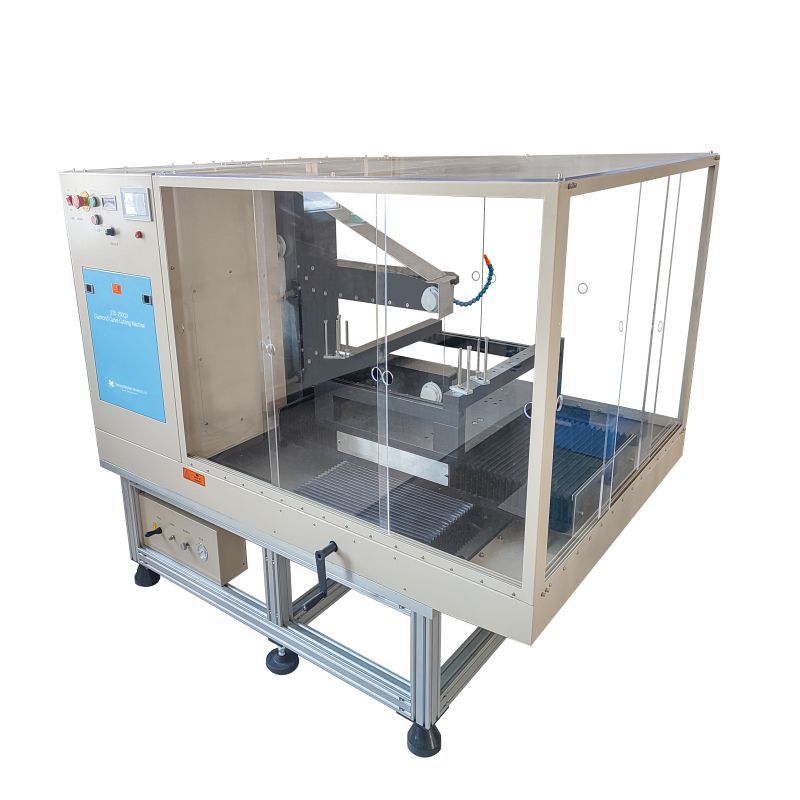

Product Name | STX-200QX Diamond Curve Cutting Machine |
Product Model | STX-200QX |
Main parameters of diamond wire cutting (Specification) | 1. Temperature and humidity of diamond wire saw for stone: 10-85%RH (at 25℃ without condensation) Temperature: 0-45℃. 2. There is no strong vibration source and corrosive gas around the diamond wire cutting equipment. 3. Power supply of diamond wire saw for stone:: single phase: AC220V 50Hz, national standard three-pole two-position socket 10A, the front end of the socket has a 16A air switch, and a good grounding wire must be provided 4. Air source of diamond wire saw for stone: (compressed air): ≥0.6Mpa 5. Coolant for diamond wire saw for stone:: required (strongly recommended to use --- cutting oil) 6. Diamond wire saw for stone workbench:: no requirement 7. Ventilation device of precision diamond wire saw: no special requirements |

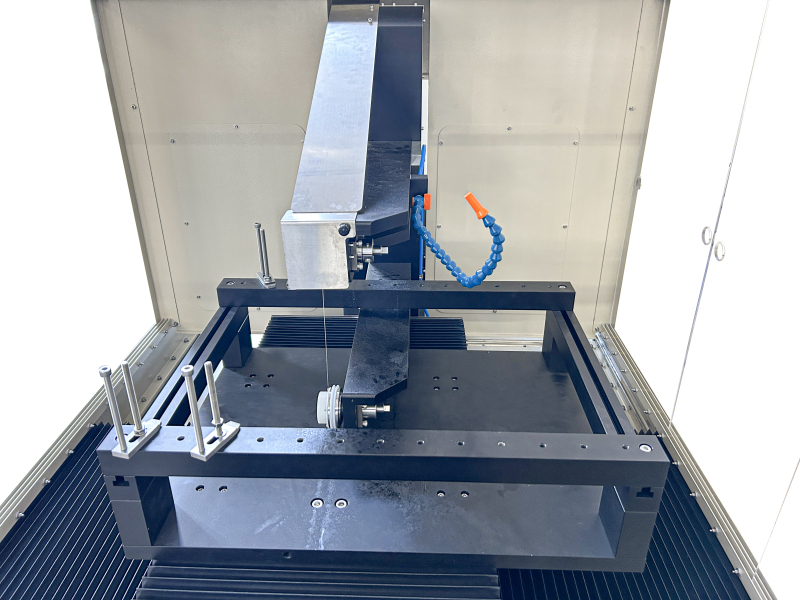

Main parameters of diamond wire cutting | 1. Power supply interface: National standard three-pole socket with insurance AC220 50Hz 10A 2. Total power: 600W 3. Main body structure: aluminum alloy frame + sheet metal closed shell + acrylic protective cover 4. Diamond wire length: ≤230m 5. Diamond wire diameter: φ0.35-0.45mm 6. Diamond wire tensioning method: pneumatic tensioning system 7. Spindle cutting rotation method: reciprocating rotation 8. Spindle drive motor: AC frequency conversion AC220V 370W 9. Spindle speed: 15m/s adjustable 10. X-axis effective travel: ≤400mm 11. Y-axis effective travel: ≤400mm 12. X-axis, Y-axis running speed: effective value: 0.06-6mm/min (100 steps/second) 13. X-axis, Y-axis positioning accuracy: 0.01mm 14. X-axis and Y-axis drive motors: precision stepper motors 15. Maximum spacing between the upper and lower guide wheels: ≤200mm 16. Sample clamping stage size: 530x690mm 17. Maximum sample cutting size: 400x400x100mm 18. Maximum sample cutting thickness: 100mm 19. Control mode: PLC programmer + 4.3-inch touch screen + CNC programming wire cutting control system 20. CNC programming display + control mode: 15-inch display, mouse + keyboard input 21. Safety control device: winding drum overtravel, wire breakage automatic stop, emergency stop switch Remarks: Our diamond wire stone saw is powered by domestic standard AC220V 50Hz power supply. The actual power supply is subject to the post-marked parameters of the diamond wire stone saw. |
Specifications of diamond wire cutting | 22. Specifications of diamond wire stone saw: · Dimensions: 1720x1200x1420mm · Net weight ≈ 575Kg
|
Functions and uses of diamond wire cutting | 1. Ceramic materials: alumina ceramics, zinc oxide ceramics, zirconium oxide ceramics, target ceramics, honeycomb ceramics, semiconductor ceramics, conductive ceramics, non-conductive ceramics, etc.; 2. Crystal materials: graphite, silicon crystals (solar polycrystalline silicon, single crystal silicon), sapphire, alumina crystals, infrared glass crystals, aluminum oxide crystals, silicon carbide crystals, cesium iodide crystals, etc.; 3. Glass materials: chalcogenide glass, optical glass, quartz glass, infrared glass, glass tubes, etc.; 4. Metal materials: iron, aluminum, copper, titanium alloy, magnesium alloy and other metals and alloys, non-ferrous metals (zinc sulfide, ferrite), etc.; 5. Composite materials: PVC board, carbon fiber composite materials, glass fiber composite materials, etc. 6. Rock materials: natural rocks, jade, meteorites, Pei Cui, agate, etc. precision cutting; Precision slicing of various high-value materials; slicing of geological light slices, geological thin slices (sedimentary rocks, igneous rocks, metamorphic rocks, ores), etc. 7. Thermoelectric materials: bismuth telluride, lead telluride, silicon-germanium alloy, etc. 8. Infrared optical materials: crystals such as zinc selenide, zinc sulfide, silicon, germanium, etc. 9. Biomedical materials: Bioplastic specimen sections (human and animal organs, combined sections of soft and hard tissues of the jaw, implant observation, dental crowns and bridges, histological specimens such as teeth); Combined sections of soft and hard tissues of orthopedics (fresh and hard tissues such as femur, hip joint, vertebral body, bone histological samples with implants, etc.); Medical tissue sections such as cardiovascular stent sections and stone sections; Note: Materials with a hardness lower than diamond wire can also be accurately cut by our diamond wire stone saw products. |
Standard accessories of diamond wire stone saw:
| No. | name | quantity | picture |
| 1 | Diamond wire φ0.35mm 230m/roll | 3 volumes |  |
| 2 | Diamond wire φ0.35mm 2500m/roll | 1 volumes |  |
| 3 | Paraffin wax stick | 4 roots |  |
| 4 | Whetstone | 1 piece |  |
| 5 | Matte leather polishing pad (without adhesive backing) | 1 piece |  |
| 6 | Cooling cutting oil | 3 barrels |  |
| 7 | STX-2500/100QX/200QX Electric thread feeder | 1 set |  |
Optional accessories for diamond wire stone saw:
No. | name | functional type | picture |
1 | STX-100QX 3D precision fixture | (optional) |  |
Our advantages:
Our company provides high-quality precision diamond wire saw and supporting services. Precision diamond wire saw is suitable for efficient cutting of materials such as granite, marble, concrete, etc. We not only sell wire saws of various specifications, but also provide diamond saw blades, drill bits and grinding discs. The services for precision diamond wire saw include technical consultation, after-sales maintenance, use training and product upgrades. At the same time, we have been helping customers choose the right precision diamond wire saw products.
