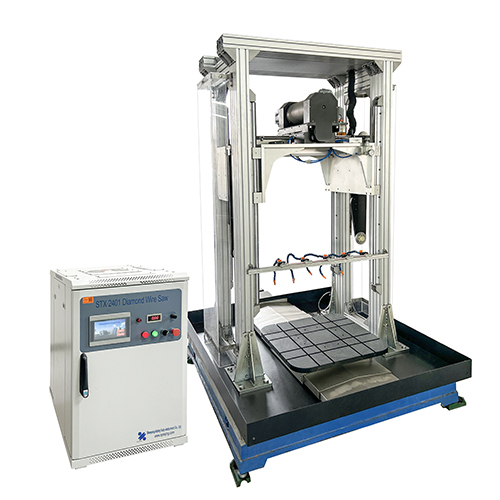

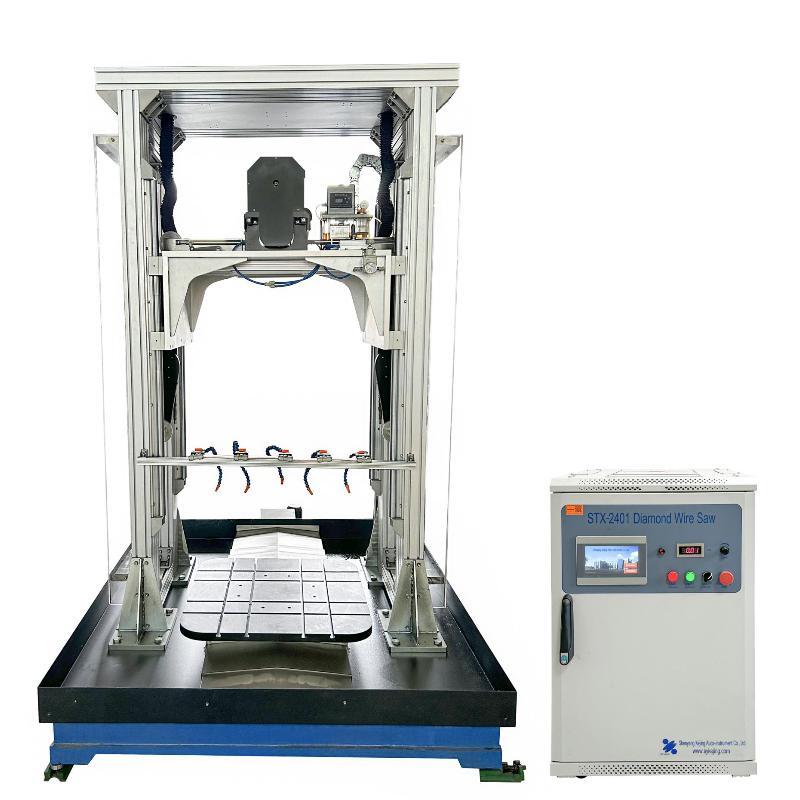

Diamond Wire Saw For Cutting Max. 600mm
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 44 working days
Supply capacity 10 sets
1. STX-2401 diamond wire saw cutting machine is suitable for cutting materials of different hardness, such as ceramics, crystals, glass, metals, rocks, thermoelectric materials, infrared optical materials, composite materials and biomedical materials.
2. Diamond wire saw cutting machine is mainly used to process larger-sized precious materials.
3. STX-2401 diamond wire saw cutting machine can be used to cut seed crystals of artificial crystal materials such as silicon, white sapphire, and sapphire.
Main Features Of Fully Automatic Diamond Wire Saw:
1. Fully automatic Diamond wire cutting machine size up to 24"(max).
2. The main motor of the Fully automatic diamond wire saw drives the diamond cutting wire to move downward at a constant speed, and the material is fixed on the workbench to ensure stable cutting.
3. The worktable of the Fully automatic diamond wire saw can be rotated 360° manually or through program control.
4. Fully automatic diamond wire saw adopts a pneumatic tensioning system and uses imported pneumatic components to make the tensioning force more stable and reliable.
5. Fully automatic diamond wire saw's PLC program control system and large-size touch screen make operation simple and fast.
6. Fully automatic diamond wire saw can design various supporting fixtures according to your needs.
7.STX-2401Diamond wire cutting machine is a continuous cutting Diamond wire cutting machine. After setting the cutting program, the sample is continuously fed without manual adjustment.
Diamond Wire Saw Cutting Machine Is Suitable For:
1. Ceramic materials: alumina ceramics, zinc oxide ceramics, zirconia ceramics, target ceramics, honeycomb ceramics, semiconductor ceramics, conductive ceramics, non-conductive ceramics, etc.;
2. Crystal materials: graphite, silicon crystal (solar polysilicon, monocrystalline silicon), sapphire, alumina crystal, infrared glass crystal, alumina crystal, silicon carbide crystal, cesium iodide crystal, etc.;
3. Glass materials: chalcogenide glass, optical glass, quartz glass, infrared glass, glass tube, etc.;
4. Metal materials: iron, aluminum, copper, titanium alloy, magnesium alloy and other metals and alloys, non-ferrous metals (zinc sulfide, ferrite), etc.;
5. Composite materials: PVC boards, carbon fiber composite materials, glass fiber composite materials, etc.
6. Rock materials: precision cutting of natural rocks, jade, meteorites, pei cui, agate, etc., precision slicing of various high-value materials; square slicing of geological light sheets, geological thin sections (sedimentary rocks, magmatic rocks, metamorphic rocks, ores), etc. .
7. Thermoelectric materials: bismuth telluride, lead telluride, silicon germanium alloy, etc.
8. Infrared optical materials: zinc selenide, zinc sulfide, silicon, germanium and other crystals
9. Biomedical materials: bioplastinated specimen sections (joint sections of human animal organs, jaw soft and hard tissues, implant observation, dental crowns and bridges, teeth and other histological specimens); combined sections of orthopedic soft and hard tissues (femur, hip joint , vertebral bodies and other living tissues and hard tissues, bone histological samples with implants, etc.); cardiovascular and cerebrovascular stent sections, stone sections and other medical tissue sections;
10.Diamond wire cutting machine has small cutting seams and excellent cutting blade quality, which greatly improves the utilization rate of materials.
Diamond Wire Saw Cutting Machine Technical Parameters：
Product Name | STX-2401 Fully Automatic Diamond Wire Saw |
| Product Model | STX-2401 |
Conditions for Installation | 1. Temperature and humidity: 10-85%RH (at 25℃ without condensation) Temperature: 0-45℃. 2. There are no strong earthquake sources and corrosive gases around the equipment. 3. Coolant: required (recommended to use --- cutting oil) 4. Electricity: single phase: AC220V 50Hz, national standard three-pole socket 16A, must be well grounded 5. Air source (compressed air): ≥0.6Mpa 6. Workbench: no requirement 7. Ventilation device: no special requirements |
Major Parameters (Specifications)
| 1. Power supply interface: National standard three-pole socket with insurance AC220 50Hz 16A 2. Total power: <4.1KW 3. Main body composition: cast iron base + aluminum alloy frame 4. Diamond wire length: ≤270m 5. Diamond wire diameter: ≤φ0.45mm 6. Diamond wire tensioning method: adjustable pneumatic tensioning 7. Tension pressure adjustment range: 0.1-0.4Mpa 8. Spindle cutting rotation mode: reciprocating rotation 9. Spindle drive motor parameters: Servo motor: IN3φAC125V 1.5KW 8.0A 10. Spindle speed: 8m/s adjustable 11. Effective stroke of Z-axis worktable: ≤680mm 12. Effective stroke of Y-axis worktable: ≤660mm 13. Z-axis feed speed: 1~150mm/min 14. Y-axis feed indication accuracy: 0.01mm 15. R-axis rotary table: electric: horizontal 0~360° 16. Z-axis, R-axis drive motor: servo motor 17. Y-axis drive motor: precision stepper motor 18. The maximum distance between the two guide wheels: ≤900mm 19. Maximum cutting workpiece diameter and length: Φ600mmX650mm 20. Sample loading workbench: 700X700mm 21. Workbench center load-bearing: ≤600Kg 22. Control method: PLC programmer + 7-inch color touch screen 23. Parameter display format: numbers 24. Safety control device: bobbin overtravel, wire breakage automatic stop, emergency stop switch |
Dimension and Weight
| Dimension: 2082mm×1500mm×2481mm Net weight: about 1600kg |
Diamond Wire Cutting Machine Standard Accessories：
No. | name | qty | picture |
1 | Diamond Wire (2500m) | 1 pcs | |
2 | Remote Control | 1 pcs |  |
3 | Circulating Coolant Tank | 1 pcs | Including water pump, hose and connector |
4 | Water-Protection Cover | 1 set | Used at both sides of the saw and at the spooler |
5 | Wire Installer | 1 set |
|
Diamond Wire Cutting Machine Optional Accessories:
No. | name | functional type | picture |
1 | Diamond Cutting Wire (Ø0.125, Ø0.25, Ø0.35, Ø0.42mm) | （optional） |  |
2 | Cutting Oil
| （optional） | |
3 | Mute Oilless Air Compressor | （optional） | |
4 | DX-100 Single Crystal Direction-Finder | （optional） |  |
5 | Dust-Protection Cover | （optional） |   |
Diamond Wire Saw Cutting Machine Warranty：
· One year limited with lifetime support (not including rusted parts due to inadequate storage conditions)
Our advantage:
1. Independent research and development of equipment.
2. Production line assembly and debugging.
3. Point-to-point exclusive sales service.
4. One-stop service for installation and training.
