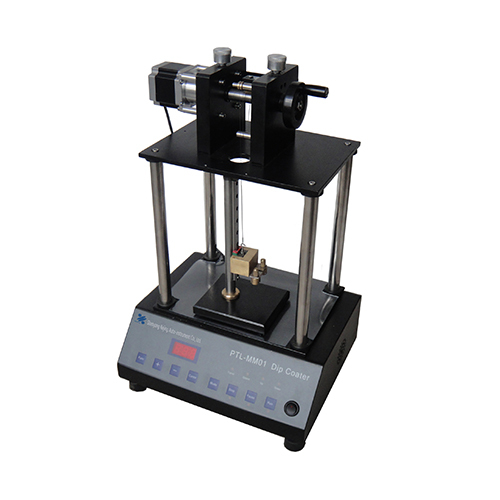

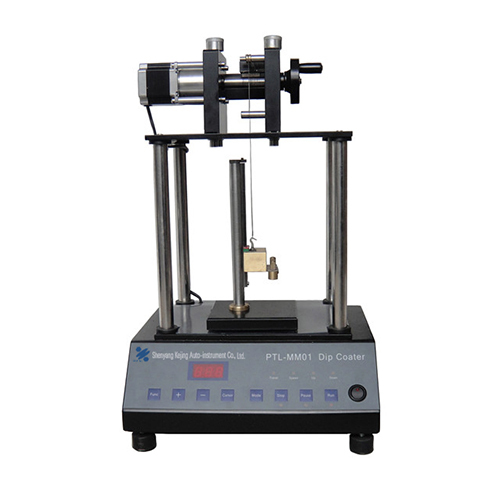

Desktop Dip Coater With Variable Speed (1-200 mm/min)

Brand Shenyang Kejing

Product origin Shenyang, China

Delivery time 10 working days

Supply capacity 50 sets

1.PTL-MM01 programmable dip coater pulls the sample vertically by pulling the wire. The sample is dipped in the liquid film material for a period of time and then pulled out, so that a film of a certain thickness grows on the surface of the sample.
2.PTL-MM01 programmable dip coater adopts a single-board computer to control the pulling speed of the wire to make the lifter run smoothly and accurately.

Desktop Dip Coater With Variable Speed (1-200 mm/min)

Introduction of programmable dip coater:

PTL-MM01 programmable dip coater is a millimeter-level precision pull-up equipment developed by our company for the research of liquid phase growth film on substrate. It has passed CE certification and is a necessary product equipment for liquid phase growth film research units and institutes.


The dip coater control system is a self-developed high-precision single-chip control system that controls the operation of the actuator. The manual button switches the pull-up direction. The pull-up and lifting speed and stroke can be set. The lifting process runs smoothly and accurately. The dip coater pulls the sample vertically through cable drawing, immerses the sample in the liquid phase film material for a period of time and then pulls it out, so that a certain thickness of film grows on the surface of the sample. The sample can be immersed in the liquid film material through manual control and then automatically pulled back, or it can be immersed in the liquid film material through automatic control and manually pulled back. The dip coater works at room temperature. If you need a puller that can be heated and worked at a constant temperature, you can also choose the PTL-MMB01 constant temperature puller with a constant temperature drying oven as needed to ensure that the film growth process is carried out at a constant temperature. The dip coater is small in size, simple to operate, and easy to carry. It is widely used in laboratories of colleges, research institutes, and corporate units.

dip coater



Advantages of dip coating:

1. Dip coating is simple and convenient to operate and clean, suitable for beginners;

2. Dip coating is small in size, cost-effective, and saves laboratory space;

3. Dip coating uses high-precision stepper motor drive and wire conduction lifting technology to reduce vibration.


Technical parameters of dip coating:

Product name

PTL-MM01 Dip Coater

Product model

PTL-MM01

Installation conditions of film coating

1. Power supply: AC220V 50/60Hz national standard 10A socket, must be well grounded;

2. Site environment: Use at a temperature of 25℃±15℃ and a humidity of 55%Rh±10%Rh.

Main parameters of film coating

1. Working voltage of the lifting machine: DC24V 3.75A (with standard "power adapter")

2. Power of the lifting machine: 50W.

3. Type: normal temperature type.

4. Drive motor: high-precision stepper motor.

5. Speed setting range: 1-200mm/min.

6. Upper limit of sample slide bracket stroke: 75mm.

7. Effective immersion length: 60mm.

8. Upper limit of lifting load: <100g.

9. Substrate size: 75mm×25mm×2.5mm

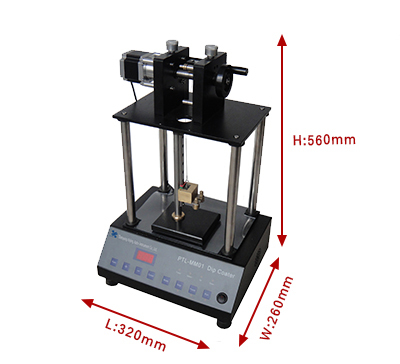

10. Product specifications:

Size: 320mm×260mm×560mm;

Weight: ≈18kg.

10. Product specifications:

Size: 320mm×260mm×560mm;

Weight: ≈18kg.




Dip Coating

Note:

1. Specifications of the standard "power adapter": IN: AC100-240V 50/60Hz OUT: DC-24V 3.75A. The actual power supply of the device is subject to the label attached to the back of the product;

2. Customizable AC110V 50/60Hz constant temperature oven;


Standard accessories of dip coating:

NO.NameQtyImage Link
1Anti-sway control seat1 set--
2Sample fixture1 set--
3Loading cup1 piece--
4Raising Wire3 items--


Optional accessories of programmable dip coater:

NO.NameFunctional categoryImage Link
1Rapid Prototype Fixture(Optional)--
2Raising Wire(Optional)--


Warranty:

One year limited with lifetime support (not including rusted parts due to inadequate storage conditions)。
