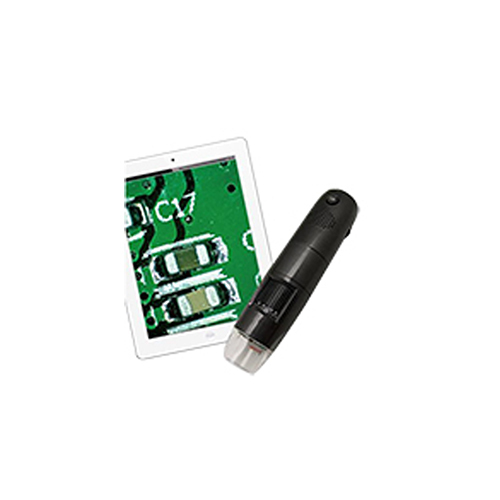

3R Wireless WIFI Digital Microscope
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 10 working days
Supply capacity 50 sets
1. Our WiFi wireless digital microscope 3R can be used continuously for more than 5 hours after a single charge, and has a long standby time
2. Our WiFi wireless digital microscope 3R can also allow others to share a wireless connection to view the tiny world under the microscope together.
3. WiFi wireless digital microscope 3R has a large magnification range and is easy to use, and can be handheld to observe any object.
Introduction of 1.3 million pixel USB digital microscope:
1.3 million pixel USB digital microscope allows you to study tiny objects. WiFi wireless connection not only allows you to break free from the constraints of wired connection, but also allows others to share wireless connection to watch the tiny world under the microscope together. 1.3 million pixel USB digital microscope has a wide range of magnification and is easy to use. It can be handheld to observe any object; it is compact and portable and can be used for outdoor or field observation of objects; Wireless digital microscope has a long standby time and can be used continuously for more than 5 hours after a full charge; The wireless transmission distance is long, and the transmission distance is not less than 5m. Wireless digital microscope can be used for skin inspection, scalp inspection, animal dissection inspection, plant growth observation, textile inspection, printing inspection, electronic production quality inspection, industrial observation (such as printed circuit boards, precision machinery, etc.), antique identification, visual aids, school research tools, etc. Thehandheld digital high definition inspection microscopecan be used with our STX series diamond wire cutting machine for fine tool setting when the diamond wire cutting machine cuts samples. It can also be used for tool setting of the SYJ-400CNC dicing cutting machine.
Handheld digital high definition inspection microscope parameters:
| Product name | WiFi wireless digital microscope 3R |
| Model of wireless digital microscope | 3R |
Main features | 1. Data transmission can support Windows XP /7.0 /8.0 (wired/wireless transmission), Mac, IOS and Android systems, with no less than 5 sets of corresponding software 2. Used with diamond wire cutting machines (such as STX-201, STX-202, STX-402) and SYJ-400CNC dicing cutting machines, it is convenient for adjusting the knife when cutting small and difficult-to-handle samples, and improves cutting accuracy. |
Technical parameters | WiFi wireless features of 10x- 200x Usb digital microscope |
1. Photo and video pixels: 1.3 million pixels 2. Resolution: 1280x1024 (MJPG), 640x480, 320x240 3. Compatible with IEEE 802.11 b/g/n standards 4. Wireless transmission distance: more than 5 meters 5. Transmission power: 11n HT40 MCS7: +13 dBm 11b CCK: +18 dBm 11g OFDM: +15 dBm 6. Data rate: 802.11n: up to 150Mbps 802.11b: 1, 2, 5,5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 7. Maximum device temperature: less than 60 °C (degrees Celsius) at full speed 8. Frequency range: 2.400 ~ 2.4835GHz 9. Power consumption: Maximum 2.5w 10. Video frame rate: 10fps~30fps 11. Lithium battery: Continuous working time is about 2 hours, full charging time is about 2 hours 12. Battery life: 500 cycles 13. Charging power supply: DC5.0V/1A | |
| Camera features of handheld digital high definition inspection microscope | |
1. Image sensor: CMOS 1/4” 2. Optical parameters: 3. Exposure: Automatic 4. Gamma correction: Automatic 5. Aperture: Automatic 6. White balance: Automatic 7. Black reference: Automatic 8. Flicker avoidance: Automatic 9. Defect recognition: Automatic 10. Color saturation: Automatic | |
| Microscope features of 10x- 200x Usb digital microscope | |
1. Adjustable magnification range: 10x~200x 2. Object distance range: 8~300mm 3. Focus range: 8~300mm 4. Illumination: 8 brightness adjustable warm white LEDs 5. Lens: HD microscope lens 6. Size: 3mm (diameter) x 142 mm (length) 7. Weight: about 88 grams | |
| Wired USB features | |
1. Photo and video pixels: 1.3 million pixels 2. Resolution: 1280x1024, 640x480, 320x240 3. Computer interface: USB 2.0 4. Mini USB cable: 1.2 meters | |
Accessories of 1.3 million pixel USB digital microscope | 1. WiFi wireless microscope body 2. MiniUSB cable 3. Software CD and manual 4. Simple plastic seat 5. Transparent calibration ruler 6. Auxiliary focusing transparent parts |
