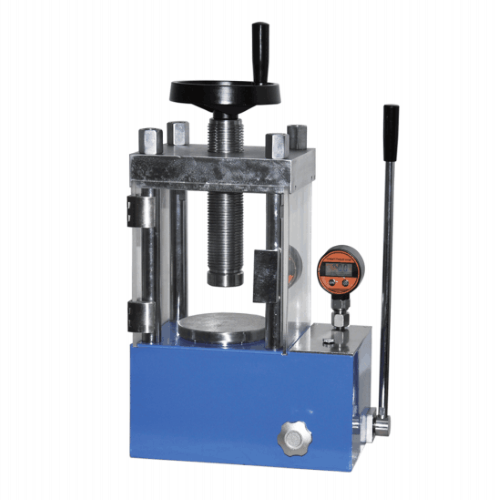

30T Lab Manual Hydraulic Press Machine
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 22 working days
Supply capacity 50 sets
1. Hydraulic pellet press supports the pressing of various sample forms, and can be made into flakes, columns, special shapes and combinations.
2. Hydraulic pellet press can be used in conjunction with calcium iron analyzer, infrared spectrum (IR) analyzer and X-ray fluorescence (XRF) analyzer.
3. Hydraulic pellet press accurately presses samples through relative pressure from top to bottom, and is suitable for the needs of small amounts of samples into flakes or large amounts of samples into columns.
Introduction of manual pellet press machine:
YLJ-30T manual pellet press machine is widely used in the fields of catalysis, silicate, battery, ceramic, powder metallurgy and other new materials, superconducting materials, powder ceramics, new power materials, building materials, etc. Manual pellet press machine is small in size, simple and convenient to operate, easy to clean and maintain, so it is widely used in colleges and universities and scientific research institutes. Manual pellet press machine can use different types of presses to press samples according to the size of the sample and the required pressure.
Advantages of manual lab hydraulic pellet press:
Manual lab hydraulic pellet press adopts an integrated structure, integrating the oil pool, main board, and oil cylinder into one main body to avoid oil leakage caused by sealed connections; manual lab hydraulic pellet press can be equipped with a digital pressure gauge to provide precise pressure control, with a pressure display accuracy of up to 0.01mpa. Manual lab hydraulic pellet press is small in size, light in weight, and has a leak-free design. It is easy to carry and can be directly placed in a glove box for use.
Technical parameters of manual pellet press machine:
| Product name | YLJ-30T Manual Press |
| Product model | YLJ-30T |
| Technical parameters | 1. Rated pressure range (tons): 0-30T (max). 2. Allowable working pressure range (MPa): 0-31 (max). 3. Pressure gauge (optional): Pointer type/electronic digital display. 4. Piston diameter (mm): Φ110. 5. Piston stroke (mm): 40. 6. Number of columns (roots): 2. 7. Column spacing (mm): 92×:60. 8. Protective cover (plexiglass) (optional). |
| Product specifications | Dimensions: 275×195×420mm; Weight: 56kg. |
| Note: All standard equipment is bare metal. If you need molds, please order them separately. | |
Precautions for use:
1. Before use, the oil filling hole screw must be loosened first so that the press can work normally.
2. Regularly add lubricating oil to the screw and plunger pump.
3. The pressure must not exceed the pressure range of the machine, otherwise it will be dangerous.
4. It is advisable to use clean No. 46 engine oil for the press, and never use brake oil.
5. When pressurizing, the manual pressure handle 11 feels strong, but the pressure gauge has no indication. You should unload and check the pressure gauge immediately.
6. For new machines or those that have not been used for a long time, tighten the oil drain valve slightly before use, unload when the pressure reaches 20~25MPa, and repeat 2~3 times continuously, and it can be used normally.
7. The large piston should not exceed the stroke of 20mm.
