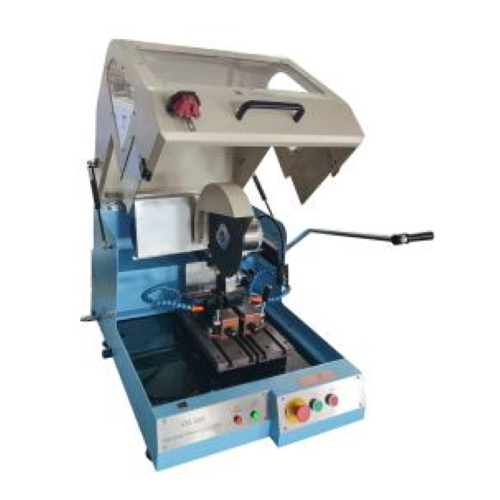

Metallography Specimen Cutting Machine
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 10 working days
Supply capacity 50 sets
1. Metallographic sample cutting machine is equipped with a fast vise, which can quickly clamp metal materials and improve work efficiency.
2. Metallographic sample cutting machine uses a high-speed rotating thin-film grinding wheel to accurately cut metallographic samples.
3. Metallographic sample cutting machine can cut metal and non-metal materials, meet a wide range of experimental needs, and can replace saw blades of different materials according to the material.
Introduction of metallographic specimen cutting machine:

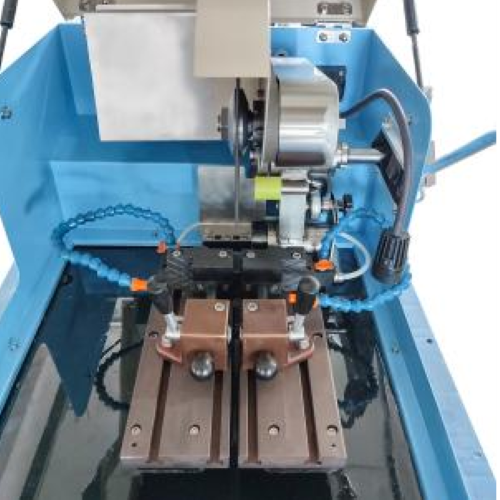

SYJ-50A Metallographic specimen cutting machine uses a high-speed rotating thin-blade grinding wheel to cut metallographic samples. It is a special equipment for cutting metal samples in the laboratory. Grinding cutting can improve the finish of the cutting end surface. Metallographic specimen cutting machine is equipped with a cooling device to cool the heat generated during cutting to prevent the sample from overheating and changing the metallographic structure. It also comes with a fast vise for fast clamping of metal materials, which significantly improves work efficiency. Metallographic cutting machine can cut metal and non-metal materials, and can also replace saw blades of different materials according to different needs.
Advantages of metallographic cutting machine:
1.Metallographic cutting machine is equipped with a cooling device to effectively control the heat generated during the cutting process and prevent the sample from changing the metallographic structure due to overheating.
2.Manual metallurgical specimen cutting machine has a sturdy structure and stable operation, and can provide a reliable cutting environment.
3.Manual metallurgical specimen cutting machine is suitable for laboratory environment, occupies a small space, and is easy to place and operate.
Technical parameters:
| Product Name | SYJ-50A Metallographic Sample Cutting Machine | |
| Product Model | SYJ-50A | |
| Main Parameters | 1. Working voltage: Three-phase 380V 、50Hz. | |
| 2. Motor: YS8022. | ||
| 3. Total power: 1.2KW. | ||
| 4. Speed: 2800r/min. | ||
| 5. Cutting workpiece size: ≤φ50mm. | ||
| 6. Use saw blade: φ250×2 (installation hole φ25.4)mm. | ||
7. Product specifications: Size: 800×850×650m. |  | |
