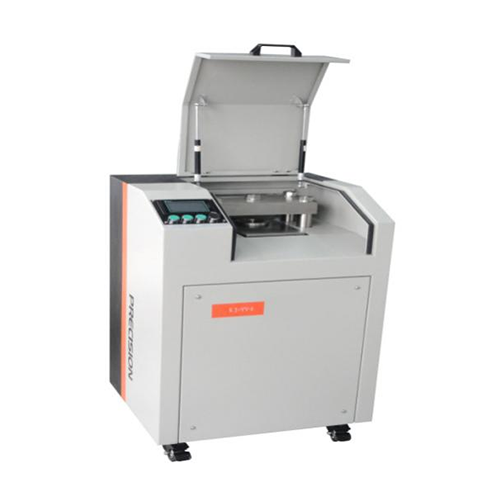

Laboratory Tablet Press

1. The Laboratory automatic powder tablet press is a supporting equipment for the spectrometer, which can be used together and has an efficient workflow.
2. The Laboratory automatic powder tablet press adopts a fully automatic process with adjustable pressure.
3. While ensuring the effect, the Laboratory automatic powder tablet press has a small overall design volume, saving your workspace.

  • Shenyang Kejing
  • Shenyang, China
  • 22 working days
  • 50 sets
  • Information

Introduction of Highly compatible laboratory tablet press prototype:

KJ-YY-1 Highly compatible laboratory tablet press prototype is a supporting equipment for providing sample pieces for X-ray fluorescence spectrometer and infrared spectrometer. During the working process, it automatically pressurizes, maintains pressure, and releases pressure. The pressure, constant pressure time and stroke are continuously adjustable within the range. Highly compatible laboratory tablet press prototype is widely used in metallurgy, drug testing, non-ferrous metals, commodity inspection, cement, building materials, coal, mining, scientific research and other fields.


Laboratory automatic powder tablet press


Advantages of Laboratory sample press:

1. The main part of the Laboratory sample press has a compact structure, good rigidity, high geometric accuracy, and a stopper caster is installed at the bottom for easy movement and fixation.

2. The Laboratory sample press adopts the method of pushing in and pulling out the sample bowl horizontally. The loading and unloading space of the sample is wide, the operation is convenient, time-saving and labor-saving, safe and reliable.

3. The Laboratory sample press adopts touch screen control, and the pressing process is completed by the program.

4. The Laboratory sample press is suitable for various molds such as steel rings, boric acid, aluminum cups, low-pressure polyethylene, plastic rings, etc.

5. The Laboratory sample press adopts a modular design with advanced proportional valve integration to ensure that the pressure has good repeatability stability during pressing.

6. The Laboratory automatic powder tablet press can choose static pressure holding or dynamic pressure holding procedures according to the characteristics of the sample.

7. The built-in pressure transmitter and pressure lock can display the system pressure and multi-point pressure values in real time, and the pressure holding time can be adjusted arbitrarily.

8. The oil tank adopts a fully enclosed structure to ensure the cleanliness of the oil quality, which can effectively reduce the shutdown failure caused by valve jamming.

9. The hydraulic system has low noise, high performance and no leakage.


Technical parameters of Highly compatible laboratory tablet press prototype:

Product modelKJ-YY-1 Laboratory Tablet Press
Technical parameters

1. Power supply: three-phase four-wire 380V

2. Rated power: 1.5KW

3. Maximum pressure: 40T

4. Pressure holding time: 0-999s

5. Maximum piston stroke: 60mm

Product specificationsDimensions: 650mm×650mm×1050mm; Weight: 300kg


Logistics:

Highly compatible laboratory tablet press prototype


About us:

We have a professional technical team that can provide you with remote technical support at any time to ensure that you can get quick and effective help during use. Recently, we have successfully provided remote guidance to an overseas customer, and the customer highly praised our service quality and response speed. No matter when and where, our team will provide you with professional support and bring you a good shopping experience.


Laboratory sample press
