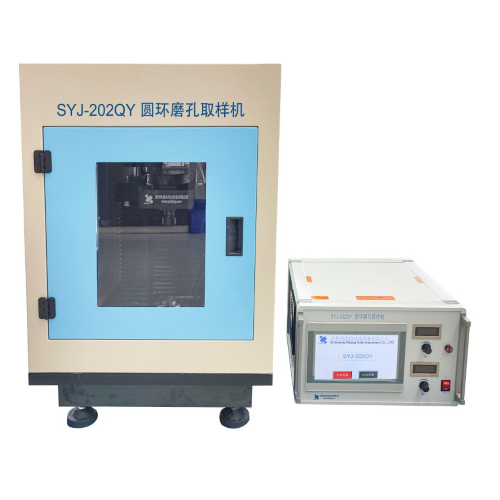

Laboratory Coring Machine
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 10 working days
Supply capacity 100pcs
1. Laboratory rock core drilling and sampling machine is suitable for sampling and drilling of non-metallic brittle materials.
2. Laboratory rock core drilling and sampling machine has automatic feeding and automatic stop functions, and manual loading and unloading of samples.
3. Customers can choose a suitable sampler or grinding head according to the size of the round materi.
Introduction of laboratory type core drilling machine:
SYJ-202QY circular hole grinding sampling machine is a circular sample sampling drilling machine independently developed and manufactured by our company. Laboratory type core drilling machine has high dimensional accuracy and is specially used for drilling cylindrical or circular samples from solid materials. Feeding and stopping are automatically controlled by the machine, and loading and unloading samples need to be operated manually. Laboratory type core drilling machine can take a wide range of samples, such as crystals, ceramics, metals, glass, rocks, cores, plastics, pcb boards, refractory materials, composite materials, etc. Laboratory type core drilling machine can take a wide range of sample sizes, Ø3mm-Ø30mm, and there are no requirements for sample shape and surface state. The minimum sampling size of this machine for brittle materials is Ø3mm, which is suitable for sampling and preparation of electron microscope samples.
Advantages of laboratory core drilling and sampling machine:
1. Laboratory core drilling and sampling machine has waterproof and splash-proof device, and the coolant flow rate is adjustable.
2. Laboratory core drilling and sampling machine uses three-jaw chuck to fix the sample, which is convenient and fast.
3. Laboratory core drilling and sampling machine has positioning accuracy of up to 0.01mm.
Technical parameters of laboratory rock core drilling and sampling machine:
Product name | SYJ-202QY Ring Grinding Sampler |
Product model | SYJ-202QY |
Installation conditions | 1. This equipment is required to be used at a temperature of 25℃±15℃ and a humidity of 55%rh±10%rh. 2. Water: The equipment is equipped with an inlet and a drain, and you need to connect to tap water and drainage by yourself. 3. Electricity: Ac220v 50hz. 4. Gas: None. 5. Workbench size: 600mm*850mm*700mm. 6. Ventilation device: Required. |
| Main parameters | 1. Input voltage: Ac220, 50hzv. 2. Spindle speed: 0~1500 (recommended 1500) rpm. 3. Workbench speed: 0~90rpm. 4. Main body structure: Aluminum alloy frame sheet metal closed shell. 5. Coolant: Oil or water (oil is recommended). 6. Z-axis slide stroke: 210mm. 7. Z-axis automatic sampling stroke: 90mm. 8. Z-axis drive motor: Servo motor. 9. Motor positioning accuracy: 0.01mm. 10. Quick fixture: Three-jaw chuck. 11. Sample size: φ100*100mm. 12. Sampler mounting handle size: φ6mmm and φ10mm. 13. Product specifications: Size: 600mm (l) * 660mm (w) * 910mm (h). Weight: 155kg (without control box). |
Standard accessories：
| NO. | Name | Qty | Picture |
| 1. | Sampler/grinding head | 2 pieces | Optional |
| 2. | Clamp (one for Φ6/10mm) | 2 pieces | -- |
Optional accessories：
| NO. | Name | Functional category | Picture |
| 1 | Circulation pump | （Optional） | -- |
| 2 | Automatic drip feeder | （Optional） | -- |
FAQ:
1. Can you provide product demonstration or sample testing?
Product demonstration video can be provided.
2. How is the transportation method and packaging safety?
The equipment is packed in a sturdy wooden box, which is shock-proof, moisture-proof and dust-proof during transportation to ensure the safe delivery of the equipment.
