Electric Cold Isostatic Press With Separable Hydraulic Pump
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 22 working days
Supply capacity 50 sets
CIP-50MAF (Split Type) Electric Cold Isostatic Press is to place the product in a tightly closed container filled with liquid, and apply equal pressure on each side of sample. With the advancement of science and technology, isostatic presses are more and more widely used in the forming of powder metallurgy, composite materials, refractory materials, ceramics, cemented carbide / high-strength alloy and other materials.
Technical Parameters
Product Name | CIP-50MAF (Split Type) Electric Cold Isostatic Press |
Technical Parameters (Specification) | 1. Pressure range of electric press: 0-65T 2. Power supply: 220V 50Hz 3. Power: 1.5kW 4. Pressure holding time: 0-999 minutes 5. Piston diameter: φ180mm 6. Maximum travel distance of piston: 50mm 7. Space size: 220mm×200mm×420mm 8. Control box weight: 75kg 9. Maximum pressure of mold/die: 60T (300MPa) 10. Pressure chamber: φ51×150mm 11. Mould/die weight: 49kg 12. Mold/die size: Φ210×350mm |
Product Dimension and Weight | 1. Dimensions of electric cold isostatic press: 335mm×225mm×870mm 2. Weight of electric cold isostatic press: 145kg |

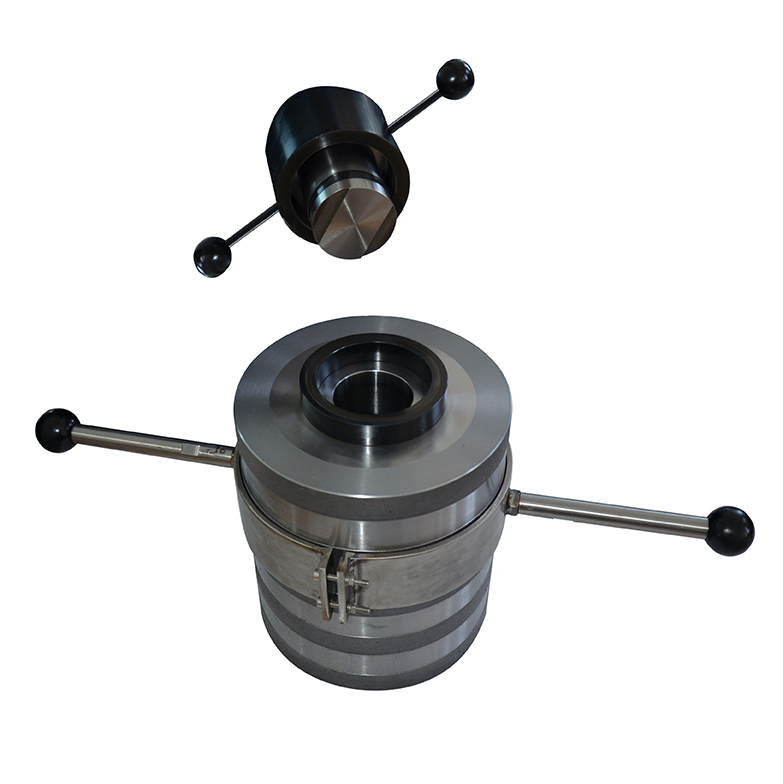

Standard Accessories | 1. Isostatic pressing mold/die: Ø50mm, 1 set 2. Centering horn: 1 pcs, black 3. Sealing ring Ø50mm: 3 pcs (one installed) 4. Mold/die clamping tool: 1 set 5. Oil used in mold/die: 1 bottle of hydraulic oil 6. Mobile handle of mould/die: M12×1502 pcs 7. Hydraulic pump station: 1 set 8. High pressure oil pipe: 2 pcs |
Cautions | The main part of the machine adopts a 60T press, and the user must never move the isostatic pressing mold/die to other large-tonnage presses without permission, so as to avoid danger to the operator! The isostatic press mold/die must not be removed from the press when it is in a tightly closed and pressurized state! ! Strictly follow the operating procedures, and the press mold/die is strictly prohibited from being removed from the protective cover of the isostatic press’ main body! ! ! Do not look down the upper pressure head of the mold/die straightly up and down at any time during the operation process. |
Warranty
One year limited with lifetime support (not including rusted parts due to inadequate storage conditions)
