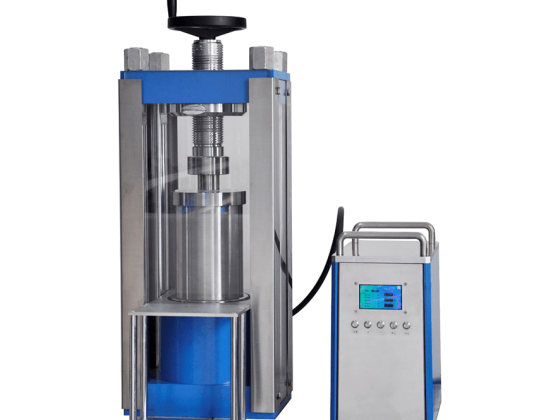

Electric Cold Isostatic Press With 22mm ID Die
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 22 working days
Supply capacity 50 sets
CIP-22MAF (Split Type) Compact Cold Isostatic Press is to place the product in a tightly closed container filled with liquid, and apply equal pressure on each side of sample. Under the high pressure environment, the density of the product increases and the desired shapes are obtained. With the advancement of science and technology, isostatic presses are more and more widely used in the forming of powder metallurgy, composite materials, refractory materials, ceramics, cemented carbide / high-strength alloy and other materials.
Main Features
1. Stable pressure: Special oil circuit design and processing technology are used to keep the pressure stable for a long time.
2. Easy to use: The displayed value of gauge pressure (MPa) is the direct reduction conversion of piston pressure value (T).
3. Reduce pollution: Strengthen various forms of sealing to prevent oil leakage, make the environment clean and reduce pollution.
4. Split structure: easy to disassemble, convenient for later maintenance
Technical Parameters
Product Model | CIP-22MAF (Split Type) Compact Cold Isostatic Press |
Main Features | 1. Stable pressure: Special oil circuit design and processing technology are used to keep the pressure stable for a long time. 2. Easy to use: The displayed value of gauge pressure (MPa) is the direct reduction conversion of piston pressure value (T). 3. Reduce pollution: Strengthen various forms of sealing to prevent oil leakage, make the environment clean and reduce pollution. 4. Split structure: easy to disassemble, convenient for later maintenance |
Technical Parameters (Specification) | 1. Rated working pressure (max): 11.5T 2. Unit pressure in the system (max): 50Mpa 3. Cylinder travel distance (max): 15mm 4. Outline dimension of the press (mm): 220mm(L)×240mm(W)×700mm(H) 5. Dimension of pressure control box (mm): 260mm(L)×150mm(W)×500mm(H) 6. Oil cylinder diameter (mm): Φ85mm 7. Working space (mm): 140mm(L)×140mm(W)×350mm(H) 8. Weight: 73kg 9. Control box: power supply: AC220V 50/60HZ, power: 150W
|
Warranty
One year limited with lifetime support (not including rusted parts due to inadequate storage conditions)
