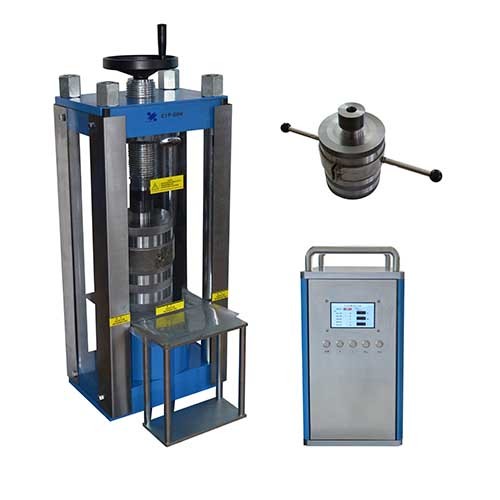

Electric Cold Isostatic Press With 60mm ID Die (Max.500 Mpa)
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 22 working days
Supply capacity 50 sets
500CIP-60MAF Ultra-high Pressure Cold Isostatic Press is to place the product in a tightly closed container filled with liquid, and after connecting to power supply, the liquid applies equal pressure onto each side of sample surface. With the advancement of science and technology and our company’s further research on powder materials, isostatic presses are more and more widely used in the forming of powder metallurgy, composite materials, refractory materials, ceramics, cemented carbide / high-strength alloy and other materials.
Technical Parameters
Product Name | 500CIP-60MAF Ultra-High Pressure Cold Isostatic Press |
Main Features | This machine adopts LCD screen display, automatic control of pressurization process, program pressurization - program pressure maintenance - timing pressure relief; When entering mold/die chamber diameter, the program can automatically convert the pressure to be applied on the sample. |
Technical Parameters (Specification) | * Electric press pressure range: 0-150T * Power supply: 220V 50Hz * Power: 1.5kW * Pressure holding time: 0-999 minutes * Piston diameter: φ200mm * Maximum distance of piston: 50mm * Space size: 260mm×400mm×410mm * Maximum pressure of the mold/die: 500MPa * Pressure chamber: φ60×150mm * Mould/die weight: 65kg * Mold/die size: Φ210×350mm |
Product Dimension and Weight | Size of electric cold isostatic press: 850mm×500mm×1100mm Weight of electric cold isostatic press: 520kg |
Warranty
One year limited with lifetime support (not including rusted parts due to inadequate storage conditions)
