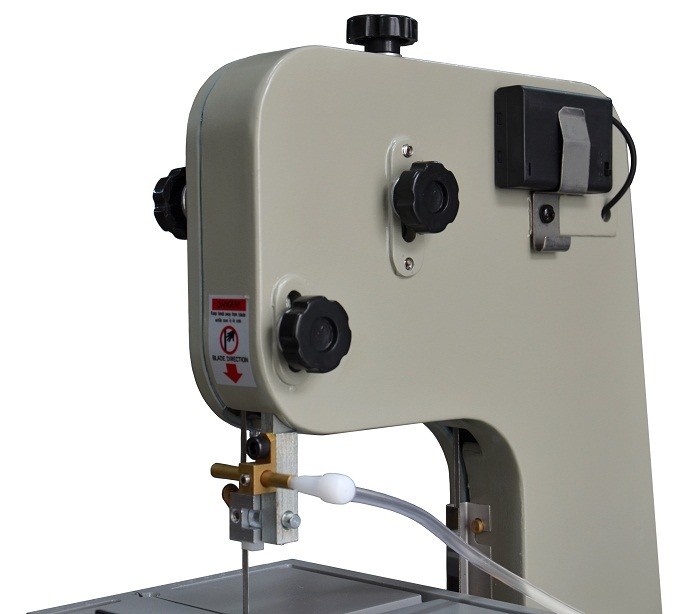

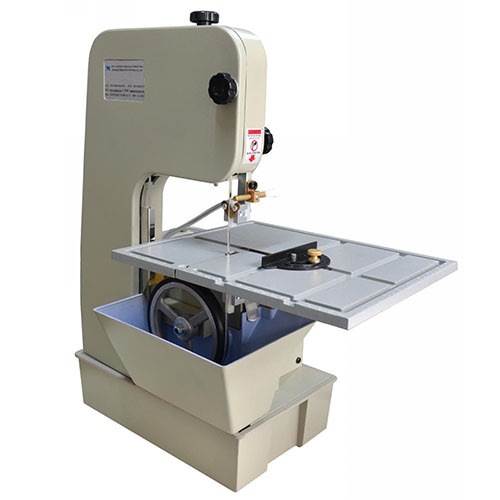

Diamond Band Saw For Cutting Max.30mm T
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 10 working days
Supply capacity 50 sets
1. The vertical metal bandsaw machine is small in size, easy to operate and runs smoothly.
2. The vertical metal bandsaw machine is equipped with a rotating cutting ruler, which can cut at a certain angle and can cut irregular shaped samples.
3. The vertical metal bandsaw machine has a fast cutting speed, stable feed speed, thin damage layer on the cutting section, and small dimensional deviation.
Product description of vertical metal bandsaw:
SYJ-D2000 vertical metal bandsaw uses circular electroplated diamond cutting band when cutting samples. On its surface, there are dense diamond particles and sharp cutting edges. The vertical metal bandsaw is especially suitable for cutting fragile materials such as glass, ceramics, jade, marble, concrete, etc. Vertical bandsaw for metal can also be used for cutting and sampling biomedical materials, such as joint slices or plasticized thin slices of soft and hard tissues of bones, teeth, body and organs.
Technical parameters of vertical bandsaw for metal:
Product Name | SYJ-D2000 Diamond Band Saw |
Model of vertical bandsaw for metal | SYJ-D2000 |
Conditions for Installation | 1. Temperature and humidity: 10-85%RH (at 25℃ without condensation) Temperature: 0-45℃. 2. There is no strong vibration source and corrosive gas around the vertical bandsaw for metal. 3. Power supply: AC220V 50Hz national standard three-pole socket, must have a good grounding wire. 4. Cooling water: The diamond band saw is equipped with a circulating water pump + water storage box for circulating cooling, and does not require a large amount of cooling water. 5. Air source: no requirement for standard equipment. 6. Workbench: recommended size: L100mm x W500 xH700. 7. Ventilation device: good ventilation environment, no special ventilation device requirements. |
Major Parameters (Specifications) | 1. Power supply port of metal vertical band saw: AC220V 50Hz. 2. Rated power of metal vertical band saw: 120W. 3. Spindle drive motor: permanent magnet DC motor. 4. Cutting line speed of metal vertical band saw: max≈6m/s adjustable. 5. Operating platform size of metal vertical band saw: L300mmxW250mm. 6. Cutting feed mode of vertical band saw: manual feed. 7. Cutting thickness max of vertical band saw: ≤30mm. 8. Cutting saw width of vertical metal bandsaw <1mm. 9. Slide cutting size max of vertical metal bandsaw: W120mm x H30mm. 10. Band saw blade size: standard: MD3718 37＂x1/8＂x1/32＂. 11. Host control mode of vertical bandsaw for metal: knob speed switch control. |

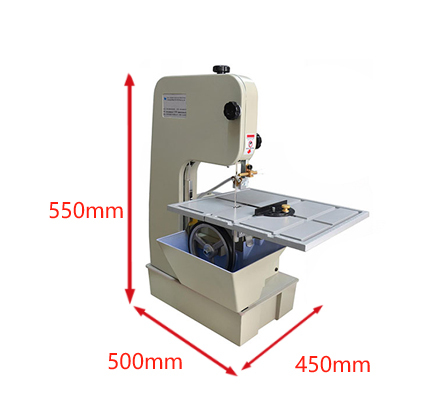

Product Specifications | 12. Specifications of diamond band saw: ·Size: 500mm×450mm×550mm ·Weight: ≈11kg
|
Function and Usage | 1. Diamond band saw is suitable for cutting brittle materials such as glass, ceramics, jade, marble, concrete, etc. 2. Diamond band saw is suitable for slicing biological plasticized specimens (human/animal organs, soft and hard jaw tissue combination slices/joint slices, implant observation, crowns and bridges, teeth and other tissue specimens) 3. Diamond band saw is suitable for orthopedic soft and hard tissue combination slices/joint slices (fresh tissues and hard tissues such as femur, hip bone, spine, implanted bone tissue samples, etc.) 4. Diamond band saw is suitable for medical tissue slices such as cardiovascular stent slices and stone slices. 5. Diamond band saw is suitable for paleontology (prehistoric organisms/life) and bone fossil research. 6. Metal vertical band saw is suitable for cutting automotive mechanical seals, sealing strips, sealing rings, oil seals, etc. |
Standard Accessories
No. | Name | qty | picture |
1 | Cutting ruler | 1 pcs |
|
2 | Diamond band blade | 1 pcs |
|
3 | Water tank | 1 set |
|
4 | Water pump | 1 pcs |
|
Warranty:
· One year limited with lifetime support (not including rusted parts due to inadequate storage conditions)
Logistics:
About us:
Since its establishment in 2000, our company has been committed to promoting the development of material analysis technology. With our innovative spirit and accumulated technology, the company has developed hundreds of products covering material cutting, grinding, polishing and other fields, which are widely used in scientific research and analysis. Whether in colleges and universities, scientific research institutions, or small-scale production of manufacturing enterprises, our metal vertical band saw plays an important role.
