Diamond Band Saw For Cutting Max.100mm T
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 22 working days
Supply capacity 50 sets
1.Industrial vertical band saw has fast cutting speed, stable feed speed, thin damage layer on the cutting section and small dimensional deviation.
2.Industrial vertical band saw not only supports straight line cutting, but also can cut irregular and other geometric shapes of samples.
3.Industrial vertical band saw provides manual and automatic operation modes, which meets the high requirements of cutting accuracy and improves the convenience and efficiency of operation.
Description of vertical band saw machine：

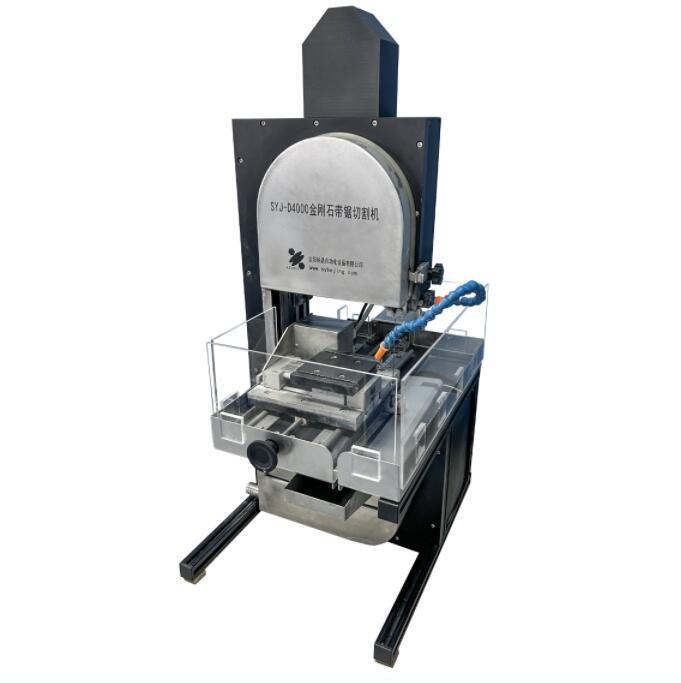

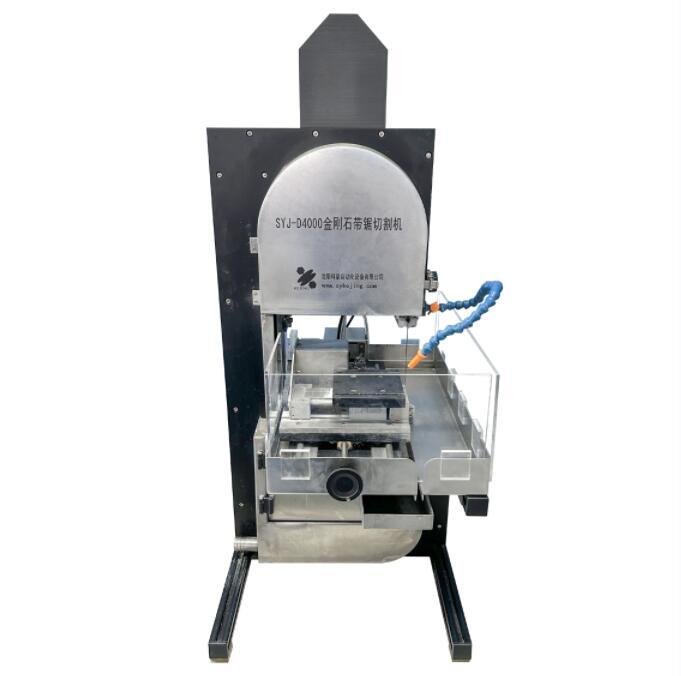

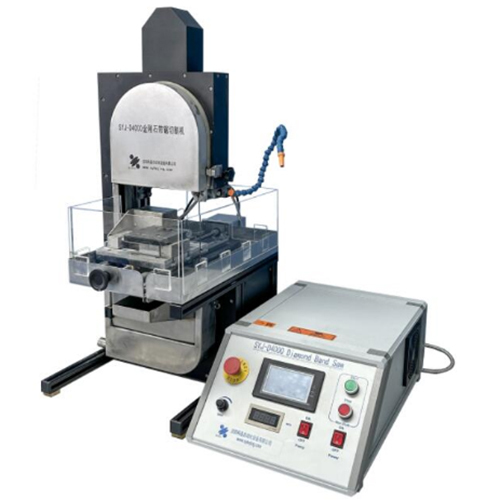

SYJ-D4000 vertical band saw machine is a small diamond cutting machine, vertical band saw machine is easy operation with manual cutting and automatic cutting methods. The diamond band saw is especially suitable for cutting non-metal materials such as glass, ceramics, jade, marble, concrete. Diamond band saw can also be used for cutting and sampling biomedical materials, such as joint slices or plasticized thin slices of soft and hard tissues of bones, teeth, body and organs.Diamond band saw can cut in straight lines, and samples of irregular and other geometric shapes.
Technical parameters of diamond band saw:
Product Name | SYJ-D4000 Diamond Band Saw |
| Product Model | SYJ-D4000 |
| Function and Use | 1. Suitable for cutting non-metallic materials such as glass, ceramics, jade, marble, etc.; 2. Biological plasticized specimen slicing (human and animal organs, jaw soft and hard tissue slicing, implant observation, dental crowns and bridges, teeth and other histological specimens) 3. Orthopedic soft and hard tissue slicing (femur, hip joint, vertebral body and other living tissues and hard tissues, bone histological samples with implants, etc.); 4. Cardiovascular stent slicing, stone slicing and other medical tissue slicing; 5. Paleontology and bone fossil research; 6. Cutting of mechanical seals, sealing strips, sealing rings, oil seals, etc. for automobiles. |

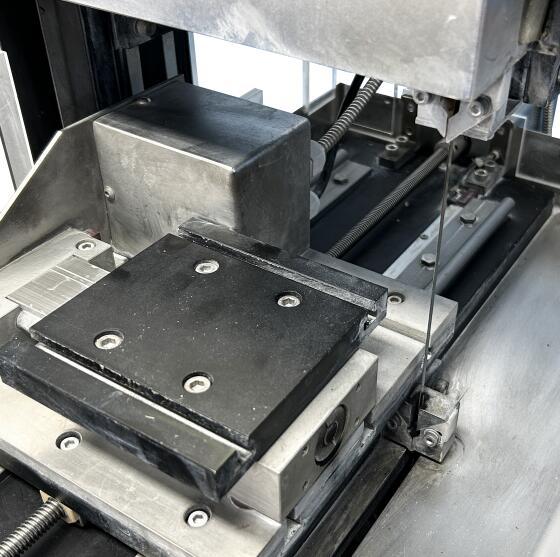

Major Parameters (Specification) | 1. Saw blade linear speed of stationary band saw: ≥16m/s 2. Max cutting depth of stationary band saw: 100mm 3. Max. cutting depth with X-axis movement fixture : 50mm 4. Maximum span of manual cutting: 210mm 5. Normal incision width of stationary band saw: <0.4mm 6. Maximum travel distance of X axis: ≥50mm 7. X-axis feed indication accuracy of stationary band saw: 0.01mm 8. Maximum travel distance of Y-axis: ≥180mm 9. Setting range of cutting times: 1 to 99 times 10. Cutting speed range of variable speed vertical bandsaw: 0.05～30mm/min |
Products and Specifications | 11. Specifications of variable speed vertical bandsaw: ·Size: 410x580x950mm
|
Warranty：
· One year limited with lifetime support (not including rusted parts due to inadequate storage conditions)
Logistics：
About us:
In the design and manufacture of variable speed vertical bandsaw, we always adhere to the combination of innovation and quality, and are committed to providing customers with efficient and accurate solutions.The stationary band saw supports both manual and automatic cutting modes.Diamond band saw is also widely used in cutting and sampling of biomedical materials.We not only pay attention to the quality of vertical band saw machine, but also care about its environmental protection concept.If you are interested in our industrial vertical band saw, please contact us.
