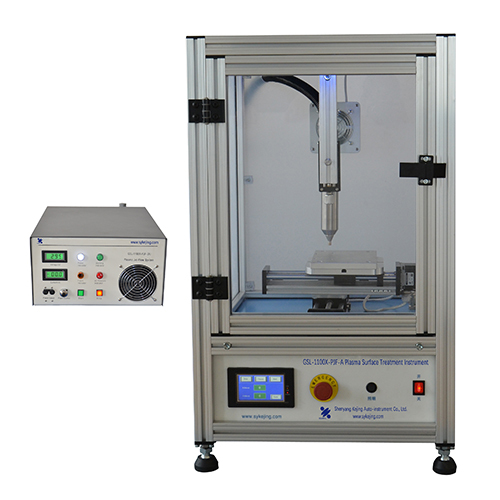

Atmospheric Plasma Beam With Automatic Scanning System
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 22 working days
Supply capacity 50 sets
GSL-1100X-PJF-A Plasma Surface Treatment Instrument is a compact atmospheric plasma jet-flow system for surface treatment, it is mainly composed of a radio frequency generator and an plasma beam head. The jet-flow plasma beam can activate and clean the surface of materials (such as single wafers, optical components, plastics, etc.) under lower temperature and non-vacuum conditions, and the cleaning speed is fast.
Main Features
1. High-speed processing of material surface with simple operation, safe and reliable
2. No need for vacuum and chamber environment
3. Small and practical with low cost
4. Compact in structure and light in weight
Technical Parameters
Product Name | GSL-1100X-PJF-A Plasma Surface Treatment Instrument |
Product Model | GSL-1100X-PJF-A |
Main Parameters (Specification) | Main part of the machine 1. Power supply: 220V, 50Hz 2. X Y axis: * Control method: panel control * travel distance: 1-150mm, Speed 1-500mm/s Z axis: * Control method: manual control * travel distance: 1-50mm 3. Cleaning spacing: 1-100mm 4. outline dimension: 550mm (W) × 650mm (D) × 920mm (H) Plasma Controller part 1. Input power: AC220V, PE. 50Hz 2. Input voltage regulation range: 190-250V 3. The weight of the main part: 17kg 4. Working ambient temperature: <42℃ 5. Relative humidity: ≤40℃RH 6. Voltage adjustment range: 240-300V 7. Input gas source pressure ≥4 bar 8. Maximum power: 1000VA 9. Frequency: 20-23kHz 10. Plasma working pressure: 0.5-0.7 bar (adjustable) 11. Pressure protection control - Lowest point: 0.4bar, Highest point: 0.8bar 12. Nozzle processing width - Round nozzle: 10-12mm, Flat nozzle: 15-18mm |
Product Dimension | Outline Dimension: 380mm (W) ×210mm (H) ×500mm (D)
|
Warranty
One year limited with lifetime support (not including rusted parts due to inadequate storage conditions)
