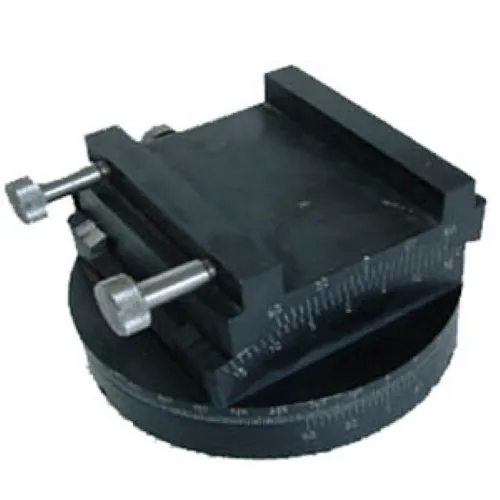

2D Rotary Sample Fixture
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 10 working days
Supply capacity 50 sets
1. The adjustable fixture is made of high-quality metal materials to ensure long-lasting durability and reliability during cutting operations.
2. The 2D rotary fixture is designed specifically for diamond wire cutting machines to firmly fix the sample block, prevent movement and ensure high-precision cutting.
3. The simple and sturdy design of the 2D rotary fixture is easy to operate and adjust, reducing setup time and improving efficiency.
Introduction of adjustable fixture:
Wire saw fixture is made of high-quality metal materials, strong and durable, simple in appearance and powerful in function.Wire saw fixture is mainly suitable for STX-202A and STX-202AQ diamond wire cutting machines, used to clamp the sample block of the fixed sample, so that the sample will not move during the cutting process, thereby ensuring the accuracy of the cut sample. 2D rotary fixture can be used for precise positioning of the horizontal, vertical or certain angle cutting of the workpiece, especially for adjusting the cutting position of special-shaped samples or samples that deflect when fixed. Wire saw fixture can rotate 360° in the horizontal direction and ±10° in the vertical direction, which increases the adjustability of the sample position and makes the sample more flexible when fixed.
Advantages of adjustable fixture:
1. The adjustable fixture can improve the adjustability of the sample and provide flexibility in fixing and positioning, which is essential for achieving precise cutting of complex samples.
2. By firmly fixing the sample in place, the wire saw fixture improves the accuracy of the cutting process, resulting in higher quality results for research and industrial applications.
3. The wire saw fixture provides 360° horizontal rotation and ±10° vertical rotation, allowing precise positioning of the sample during the cutting process, especially suitable for samples with irregular shapes or easy to move.
2D rotary fixture parameters:
| Product name | 2D Rotary Fixture |
| Main features of adjustable fixture | Easy to adjust, clear scale, accurate value. |
| Technical parameters | 1. Horizontal direction: 360° rotation 2. Vertical direction: ±10° |
| Product specifications | Ø120mm×75mm |
