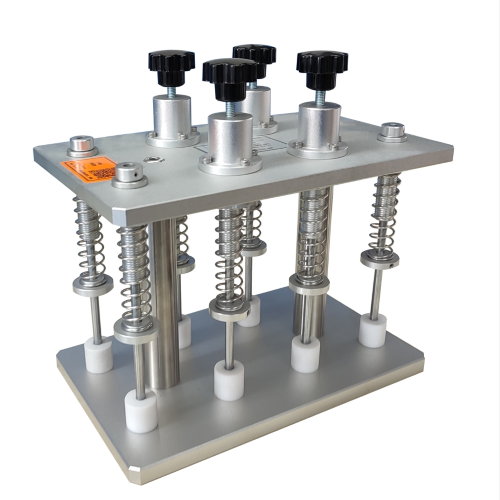

Thin Section Sample Holder
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 10 working days
Supply capacity 50 sets
1. The Bonding Jig applies uniform pressure between the sample and the slide, effectively removing bubbles.
2. The Bonding Jig can adjust the pressure by adjusting the spring tightness.
3. The Bonding Jig supports fixing one or more samples at the same time, which is suitable for batch operation.
Introduction of thin section bonding jig:
YT-08 thin section bonding jig is mainly used to bond and fix thin or small samples. The size of the sample should not exceed 2″×3″ to ensure that the entire sample surface is evenly compressed. Applying a certain pressure to the sample with thin section bonding jig can make the adhesive more evenly distributed between the sample and the slide, and at the same time expel the bubbles between the sample and the slide, so that the sample fits completely on the slide. Thin section bonding jig can fix one or more samples at the same time, and adjust the pressure applied to the sample by adjusting the tightness of the spring. Because the spring has a maximum compression force that it can withstand, when this force is exceeded, the force applied to the sample by the spring will no longer change if the spring is pressurized.
Advantages of thin section bonding tool:
1. Thin section bonding tool can control the thickness of adhesive.
2. The size of the sample used by thin section bonding tool does not exceed 2″×3″.
3. The pressure of thin section bonding tool is elastically loaded by spring.
Technical parameters of bonding jig：
Product name | YT-08 Bonding Jig | |
Product model | T-08 | |
| Installation conditions | 1. This equipment is required to be used at a temperature of 25℃±15℃ and a humidity of 55%Rh±10%Rh. 2. Water: None. 3. Electricity: None. 4. Air source: None. 5. Workbench size: 400mm*300mm*700mm 6. Ventilation device: Required. | |
