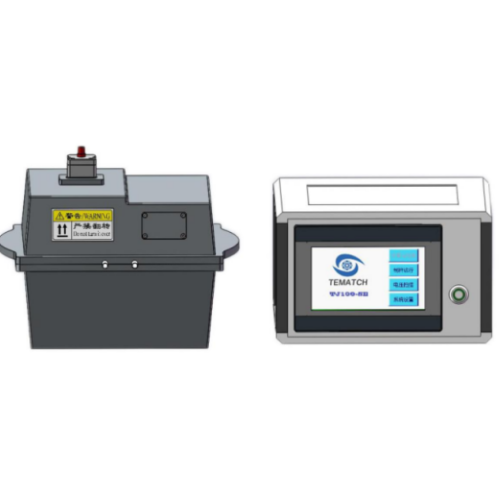

Standard Electrolysis Double Spray Instrument
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 10 working days
Supply capacity 50 sets
1. The electrolysis double spray instrument uses a seven-inch full-color touch screen operation, and displays the electrolyte temperature and current change curves in real time.
2. The electrolysis double spray instrument uses an external cooler for constant temperature control, which greatly improves the repeatability of sample preparation (TJ100-SE-TMS).
3. Electrolysis double spray instrument uses corrosion-resistant magnetic pump for liquid transmission and advanced PLC control for more stable performance.
Standard Electrolysis Double Spray Instrument
Introduction to the standard electrolytic double spray thinning instrument:
The standard electrolytic double spray thinning instrument is mainly used for the electrolytic thinning treatment of metal materials and is suitable for the preparation of electron microscope samples.
Advantages of standard electrolytic double spray thinning instrument:
1. The standard electrolytic double spray threading instrument adopts a high-sensitivity infrared sensor, which automatically reads, alarms and stops the hole.
2. The set polishing voltage, pump flow speed, photosensitivity stop value, recommended temperature and electrolyte name can be named, stored and recalled.
3. Electrolysis double spray instrument can scan metal samples within a selected range of voltage to obtain the anodic polarization curve of the metal, making it convenient to select the appropriate polishing voltage.
4. Electrolysis double spray instrument adopts a new submersible pump body to transport liquids more stably and efficiently.
5. Electrolysis double spray instrument uses a liquid inlet filtration system to ensure that the entire system will not be blocked.
Technical parameters of standard electrolytic double spray thinning instrument:
| Specification model | TJ100-SE Standard Electrolytic Double Spray Instrument
|
| TJ100-SE-TMS Standard Temperature Control Electrolytic Double Spray Instrument |
| Performance parameters | 1. Power input: AC220V/50Hz, 600W.
2. Liquid nitrogen cooling temperature control: ≥-55℃.
3. Cooling machine cooling temperature control: ≥-30℃±1℃.
4. Electrolytic voltage: 0- 220V.
5. Electrolytic current: 0-1000mA。
6. Electrolyte injection volume: 500~800mL.
7. Light sensing range: 0-4000.
8. Liquid pump speed regulation: 0-99.
9. Sample holder: suitable for Φ3mm standard samples.
10. Electrolytic box size: 325mm (W)* 240mm (D)* 217mm (H).
11. Net size of electrolyte inner tank: 173mm(W)*130mm(D)*85mm(H).
12。Control box size: 290mm (W)* 250mm (D)* 180mm (H).1. Power input: AC220V/50Hz, 600W.
2. Liquid nitrogen cooling temperature control: ≥-55℃.
3. Cooling machine cooling temperature control: ≥-30℃±1℃.
4. Electrolytic voltage: 0- 220V.
5. Electrolytic current: 0-1000mA。
6. Electrolyte injection volume: 500~800mL.
7. Light sensing range: 0-4000.
8. Liquid pump speed regulation: 0-99.
9. Sample holder: suitable for Φ3mm standard samples.
10. Electrolytic box size: 325mm (W)* 240mm (D)* 217mm (H).
11. Net size of electrolyte inner tank: 173mm(W)*130mm(D)*85mm(H).
12。Control box size: 290mm (W)* 250mm (D)* 180mm (H).1. Power input: AC220V/50Hz, 600W. 2. Liquid nitrogen cooling temperature control: ≥-55℃. 3. Cooling machine cooling temperature control: ≥-30℃±1℃. 4. Electrolytic voltage: 0- 220V. 5. Electrolytic current: 0-1000mA 。 6. Electrolyte injection volume: 500~800mL. 7. Light sensing range: 0-4000. 8. Liquid pump speed regulation: 0-99. 9. Sample holder: suitable for Φ3mm standard samples. 10. Electrolytic box size: 325mm (W)* 240mm (D)* 217mm (H). 1. Power input: AC220V/50Hz, 600W.
2. Liquid nitrogen cooling temperature control: ≥-55℃.
3. Cooling machine cooling temperature control: ≥-30℃±1℃.
4. Electrolytic voltage: 0- 220V.
5. Electrolytic current: 0-1000mA。
6. Electrolyte injection volume: 500~800mL.
7. Light sensing range: 0-4000.
8. Liquid pump speed regulation: 0-99.
9. Sample holder: suitable for Φ3mm standard samples.
10. Electrolytic box size: 325mm (W)* 240mm (D)* 217mm (H).
11. Net size of electrolyte inner tank: 173mm(W)*130mm(D)*85mm(H).
12。Control box size: 290mm (W)* 250mm (D)* 180mm (H).1. Power input: AC220V/50Hz, 600W.
2. Liquid nitrogen cooling temperature control: ≥-55℃.
3. Cooling machine cooling temperature control: ≥-30℃±1℃.
4. Electrolytic voltage: 0- 220V.
5. Electrolytic current: 0-1000mA。
6. Electrolyte injection volume: 500~800mL.
7. Light sensing range: 0-4000.
8. Liquid pump speed regulation: 0-99.
9. Sample holder: suitable for Φ3mm standard samples.
10. Electrolytic box size: 325mm (W)* 240mm (D)* 217mm (H).
11. Net size of electrolyte inner tank: 173mm(W)*130mm(D)*85mm(H).
12。Control box size: 290mm (W)* 250mm (D)* 180mm (H).1. Power input: AC220V/50Hz, 600W.
2. Liquid nitrogen cooling temperature control: ≥-55℃.
3. Cooling machine cooling temperature control: ≥-30℃±1℃.
4. Electrolytic voltage: 0- 220V.
5. Electrolytic current: 0-1000mA。
6. Electrolyte injection volume: 500~800mL.
7. Light sensing range: 0-4000.
8. Liquid pump speed regulation: 0-99.
9. Sample holder: suitable for Φ3mm standard samples.
10. Electrolytic box size: 325mm (W)* 240mm (D)* 217mm (H).
11. Net size of electrolyte inner tank: 173mm(W)*130mm(D)*85mm(H).
12。Control box size: 290mm (W)* 250mm (D)* 180mm (H).1. Power input: AC220V/50Hz, 600W.
2. Liquid nitrogen cooling temperature control: ≥-55℃.
3. Cooling machine cooling temperature control: ≥-30℃±1℃.
4. Electrolytic voltage: 0- 220V.
5. Electrolytic current: 0-1000mA。
6. Electrolyte injection volume: 500~800mL.
7. Light sensing range: 0-4000.
8. Liquid pump speed regulation: 0-99.
9. Sample holder: suitable for Φ3mm standard samples.
10. Electrolytic box size: 325mm (W)* 240mm (D)* 217mm (H).
11. Net size of electrolyte inner tank: 173mm(W)*130mm(D)*85mm(H).
12。Control box size: 290mm (W)* 250mm (D)* 180mm (H). |
