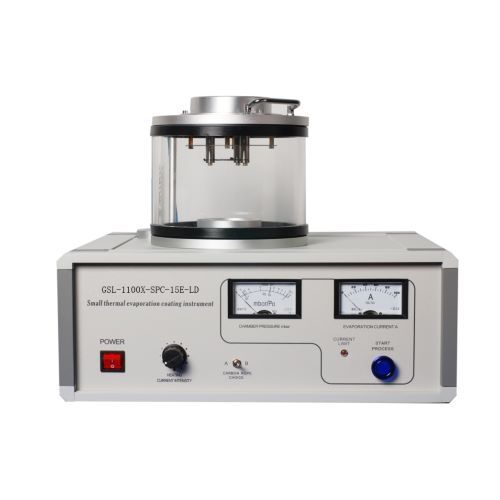

Small High Vacuum Thermal Evaporation Coater
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 10 working days
Supply capacity 50 sets
1. The evaporation area of small high vacuum two-in-one film coat can reach: ø45mm.
2. Evaporation material of small high vacuum two-in-one film coat: Carbon fiber double wire can be selected as a\b respectively.
3. Small high vacuum two-in-one film coat is equipped with a direct-connected double-rotation mechanical pump, which can make the vacuum degree reach 10-2torr.
Introduction of small evaporation coating machine:
GSL-1100X-SPC-15E-LD small evaporation coating machine can process samples for carbon coating. The diameter of the sample that can be processed can reach 50mm, and the vacuum degree can reach 10-2torr. Small evaporation coating machine is suitable for laboratory use for surface carbon evaporation coating of small samples. The equipment is small and occupies less laboratory space, which effectively saves laboratory space. It is simple to operate and easy to clean, and is suitable for the preparation of scanning electron microscope (SEM) samples in electron microscope laboratories.
Advantages of thermal evaporation coater:
1.Thermal evaporation coater is equipped with a direct-connected double-rotation mechanical pump (equipped with an oil filter and an anti-oil return device), which can make the vacuum degree of the vacuum chamber reach 10-2torr.
2.Thermal evaporation coater is equipped with a KF25 bellows and clamp.
3.Thermal evaporation coater is small in size and easy to operate.
Technical advantages of small high vacuum two-in-one film coater:
Product name | GSL-1100X-SPC-15E-LD Small Evaporation Coating Machine |
Product model | GSL-1100X-SPC-15E-LD |
Working principle | Thermal evaporation is a process that heats the carbon fiber rope to make it evaporate and gasify, and then deposit it on the surface of the substrate or workpiece to form a thin film or coating. |
| Main parameters | 1. Input voltage: AC208V-240V 50Hz/60Hz. 2. Stage: Ø50mm. 3. Evaporation area up to: Ø45mm. 4. Instrument size: 340mm×390mm×300mm (W×D×H). 5. Vacuum sample chamber: borosilicate glass 170mm×130mm (D×H). 6. Evaporation material: Carbon fiber double wire can be selected as A\B respectively. 7. Operating vacuum: 4×10-2mbar. 8. Working voltage: 0-30V /AC. 9. Evaporation current: 0-100A. 10. Evaporation time: 0-1s. 11. Vacuum degree: 10-2torr (double-rotation mechanical pump). |
12. Product specifications: Dimensions: 340mm×390mm×300mm (W×D×H); Weight: 50kg. |
