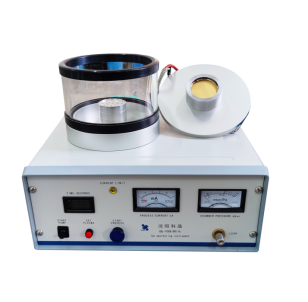

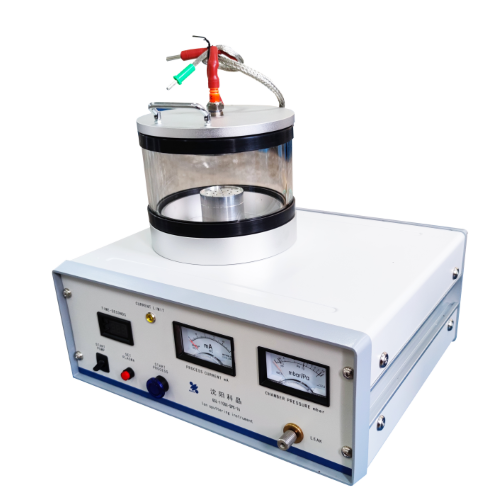

Single Target Plasma Sputtering Coating Machine
Brand Shenyang Kejing
Product origin Shenyang, Liaoning
Delivery time 10 working days
Supply capacity 50 sets
1. The ceramic sealed high-voltage electrode joint of desktop plasma sputtering coater is more durable than the commonly used rubber seal.
2. According to the gas ionization characteristics in the electric field, desktop plasma sputtering coater uses a large-capacity sputtering vacuum chamber and a corresponding area sputtering target to make the sputtering coating more uniform and pure.
3. Desktop plasma sputtering coater has passed CE certification.
Introduction of compact single target plasma sputter coater:
GSL-1100X-SPC-16 desktop plasma sputtering coater is a compact plasma sputtering instrument that can perform sputtering coating of various metals such as gold, platinum, indium, silver, etc. The sample diameter can reach 50mm and the coating thickness can reach 300A. It is particularly suitable for coating on the surface of SEM samples. Compact single target plasma sputter coater is equipped with a sample sputtering chamber vacuum meter and a sputtering current meter to indicate and monitor the instrument status. The specially designed bell jar edge rubber seal can ensure that the glass bell jar will not "collapse" during long-term use, which will affect the vacuum degree of the sample sputtering chamber; the ceramic sealed high-pressure head is more durable than the rubber seal that is usually used. Compact single target plasma sputter coater is small in size and simple to operate, and is suitable for coating small samples in the laboratory.
Advantages of desktop plasma sputtering coater:
1. Desktop plasma sputtering coater is equipped with vacuum meter and sputtering current meter to monitor the working status in real time.
2. Compact single target plasma sputter coater can adjust the sputtering current controller and micro vacuum air valve to control the vacuum chamber pressure, ionization current and select the required ionization gas to obtain excellent coating effect.
3. The rubber sealing ring on the edge of the bell jar of compact single target plasma sputter coater adopts a special design to ensure that the glass bell jar will not collapse during long-term use.
Technical parameters of plasma sputtering coater：
| Product name | GSL-1100X-SPC-16 Plasma Sputtering Coater |
| Product model | GSL-1100X-SPC-16 |
| Installation conditions | This equipment is required to be used at an altitude of less than 1000m, a temperature of 25℃±15℃, and a humidity of 55%Rh±10%Rh. 1. Water: Not required. 2. Electricity: AC220V 50Hz, must be well grounded. 3. Gas: The equipment chamber needs to be filled with argon (purity above 99.99%), and you need to prepare your own argon gas cylinder (with a pressure reducing valve). 4. Workbench: size 600mm×600mm×700mm, load-bearing capacity above 50kg. 5. Ventilation device: Not required. |

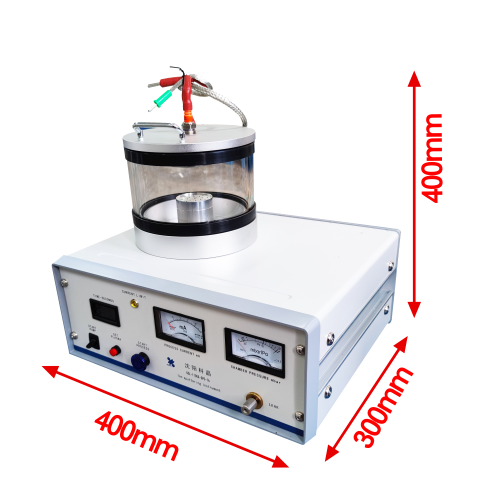

| Main parameters | 1. Power supply: 220V. 2. Total power: <2000W (including vacuum pump). 3. Vacuum chamber: Ø160mm×120mm. 4. Sample stage: Ø50mm, with adjustable height, can coat 8 SEM samples at the same time. 5. Max uniform coating: Ø45mm. 6. Product specifications: Dimensions: 400mm×300mm×400mm. Weight: 30kg. |
Standard accessories of desktop plasma sputtering coater:
| NO. | Name | Qty | Picture |
| 1 | Gold Sputtering Target | 1 piece | -- |
| 2 | Inlet needle valve | 1 piece | -- |
| 3 | Fuse | 2 piece | -- |
Optional accessories of desktop plasma sputtering coater:
| NO. | Name | Function | Picture |
| 1 | Various sputtering targets such as gold, indium, silver, platinum, etc. | (Optional) | -- |
