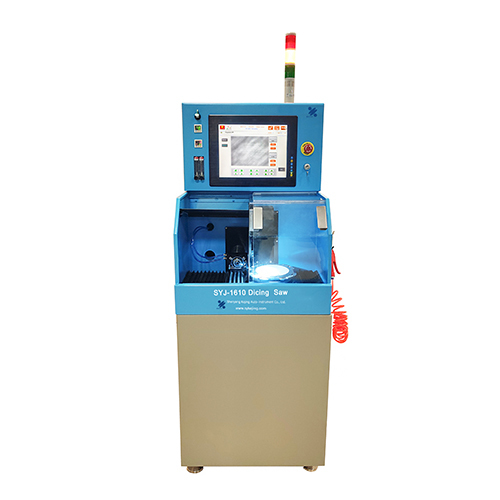

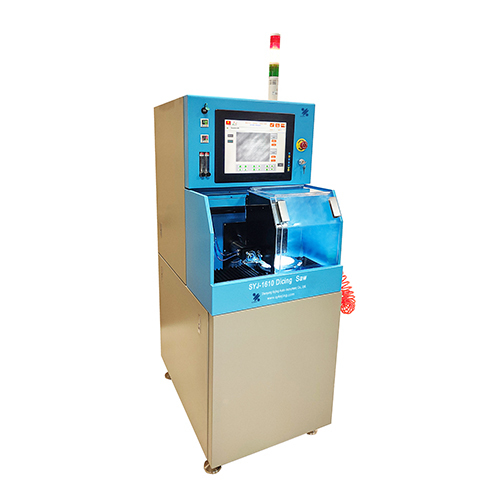

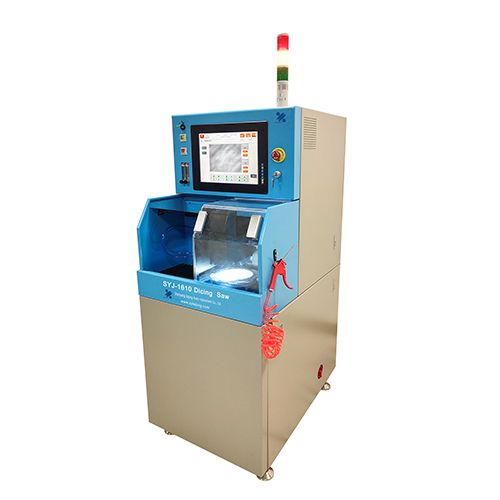

Precision Dicing Saw With 6 Inches Round And 160mm Square Workbench
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 22 working days
Supply capacity 50 sets
1.Blade slicing saw has the characteristics of high precision, good rigidity, high output power, low noise and long life.
2.All operations of blade slicing saw are completed on the screen, self-guided program mode, multiple sets of process programmable, suitable for cutting of various materials and modes.
3.Blade slicing saw cutting space starts self-locking, compressed air, cooling water, power supply and other multiple protection measures and alarm prompts, safer to use.
Main features blade slicing saw:
1.Blade slicing saw small in size to save space
2. Precision cutting saw simple touch screen operation with 15-inch high-precision touch screen
3. Precision cutting saw intelligent and accurate automatic alignment to reduce manual operation
4. The variable-speed blade height measurement design is safe and reliable, to effectively protect the blade, and the non-contact height measurement (NCS) function is included in the scribing process.
5. The core components such as spindle are imported as standard and can be adjusted according to customer requirement.
6. spindle working state detection, automatic lock of chamber door, and safety information indication
7. Precision cutting saw special cutting process design can be customized.
8. Precision cutting saw high cutting accuracy and excellent equipment stability
9. precision dicing saw direct drive rotating angle
Technical parameters of vertical diamond wire saw
Product name | SYJ-1610 precision dicing saw |
model of vertical diamond wire saw | SYJ-1610 |
Main parameters of vertical diamond wire saw | 1. power supply: 220VAC±10%, single-phase. 2. power: 3.0kW. 3. spindle speed: 3000～50000rpm. 4. spindle output power: 1.5KW. 5. X-axis cutting distance: Max 240mm. 6. X-axis speed range: 0～400mm/s. 7. Y-axis cutting distance: Max 165mm. 8. Y-axis single-step stepping accuracy: 0.003mm/5mm. 9. max tolerance of the whole Y axis: 0.005mm/160mm. 10. Z-axis effective cutting distance: Max 30mm. 11. Z-axis repeatable positioning accuracy: 0.001mm. 12. Z-axis blade application size: φ50mm～φ60mm. 13. θ-axis drive mode: DD motor. 14. θ-axis rotation angle range: 320°. 15. θ-axis resolution: 1″. 16. lighting source: LED ring light source + coaxial light. 17. CCD: industrial camera. 18. display: Industrial grade 15" color LCD touch screen. 19. control system: PC Base+WindowsXP. 20. operating system: Windows© XP. 21. Language: Chinese. |

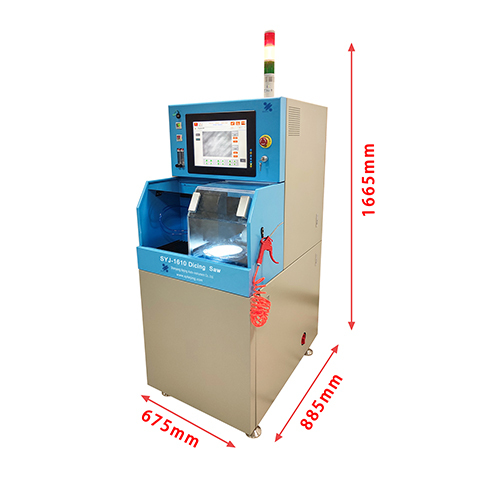

Specifications of precision dicing saw | 1. cutting size of blade slicing saw: Φ6″. 2. round workbench of precision cutting saw: Φ6″. 3. square workbench: 160mm × 160mm. 4. dimension (W×D×H) : 675×885×1665mm. 5. Net weight: 500Kg.
|
