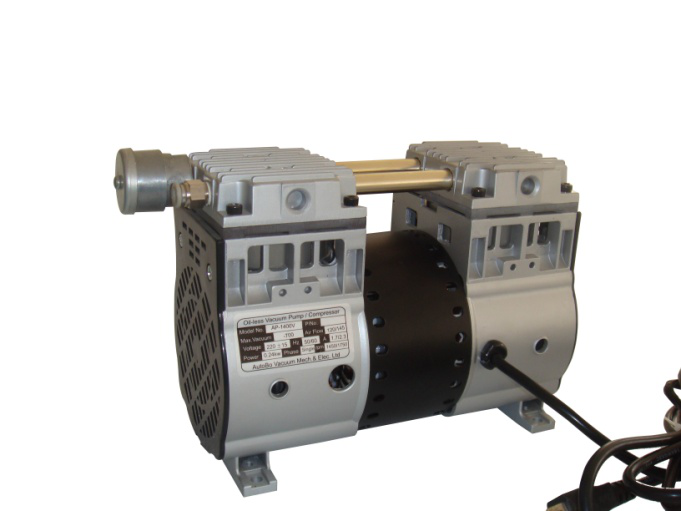

Oil-less Vacuum Pump
Brand Shenyang Kejing
Product origin Shenyang, China
Supply capacity 50 sets
AP-1400V oil-less vacuum pump is suitable for laboratory vacuum operation.
It has the advantages of small size, simple operation, low noise and long service life, etc.
It is suitable for the adsorption of samples when grinding, cutting and coating.
Product Introduction
AP-1400V oil-less vacuum pump is suitable for laboratory vacuum operation. It has the advantages of small size, simple operation, low noise and long service life, etc. AP-1400V oil-less vacuum pump can be connected with vacuum chuck, and is suitable for the adsorption of samples when grinding with UNIPOL series grinding and polishing machine, as well as when cutting with STX-202A diamond wire saw. It can be used directly for vacuuming, when mounting with CXQ-2500 vacuum cold mounting press, as well as for fixing substrates when coating with MSK-AFA-I automatic coater, MSK-AFA-II-VC automatic coater, MSK-AFA-III small cast automatic heating coater, MSK-AFA-L800 cast coater.
Technical Parameters
Product Name | AP-1400V oil-less vacuum pump |
Product Model | AP-1400V |
Main Parameters (specifications) | 1. power supply: 220V, 50Hz 2. power: 450W 3. maximum air flow: 7.2m3/h 4. maximum vacuum degree: -700mmHg (-91KPa) 5. noise: ≤60db 6. insulation grade: B 7. cold insulation resistance: ≥100mΩ (normal) 8. withstand voltage strength: 1500V/50Hz 1min without breakdown 9. thermal protector: automatic reset 130℃±5℃ 10. ambient temperature: 5℃ - 40℃ |
Product Dimension & Weight | dimension: 204mm×125mm×181mm weight: 7.85kg |
