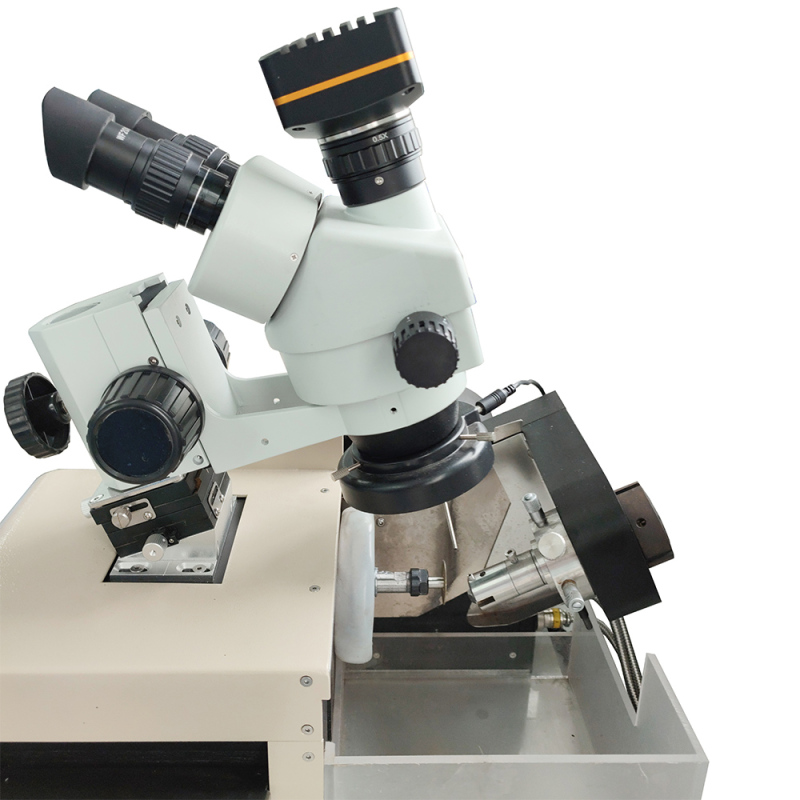

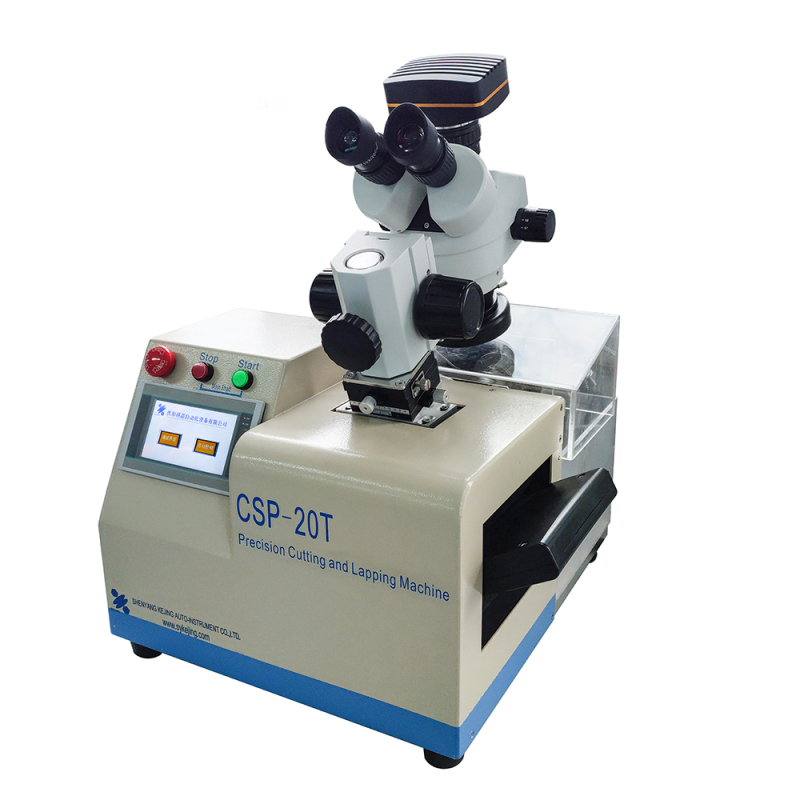

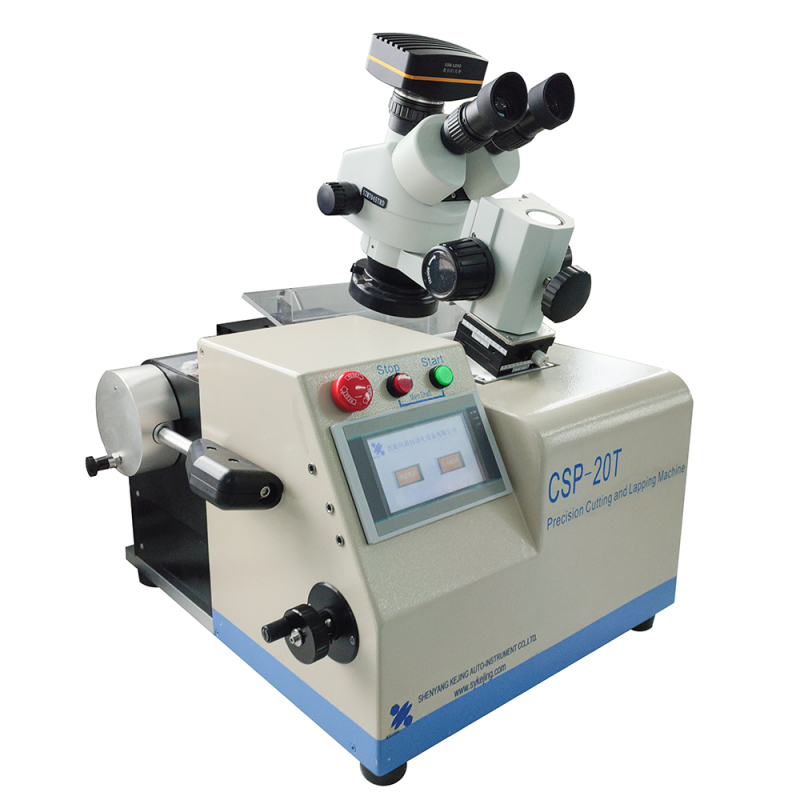

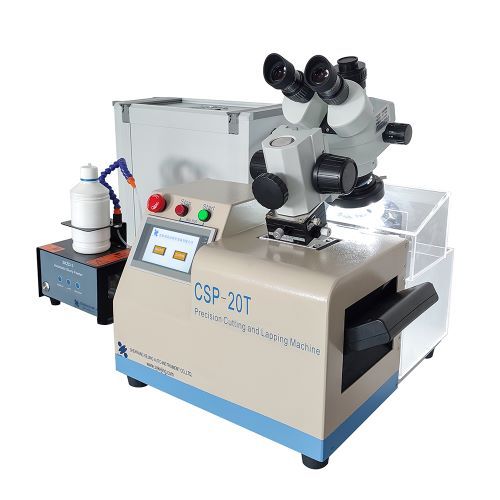

Microscope Cutting And Grinding Machine
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 10 working days
Supply capacity 50 sets
1. The sample stage chuck of the cutting grinder with microscope can be replaced according to customer needs.
2. The cutting grinder with microscope can be used to process tiny samples that are difficult to observe with the naked eye.
3. The cutting grinder with microscope can accurately locate the target area for cutting.
Introduction of laboratory precision micro cutting machine:
CSP-20T laboratory precision micro cutting machine is a surface treatment tool that can accurately locate micro target areas. It is particularly suitable for cutting, polishing and other series of treatments on samples before SEM, TEM and LM observation. The laboratory precision micro cutting machine is equipped with a microscope, which is suitable for the treatment of micro samples that are difficult to observe with the naked eye. Different sample stages and fixtures can be customized according to different sample requirements.
Advantages of microscope cutting machine for tiny sample:
1. Microscope cutting machine for tiny sample uses a trinocular stereo microscope to provide stereoscopic vision, making observation more intuitive and accurate.
2. Microscope cutting machine for tiny sample uses a manual feed handle, which is simple to operate and easy to use.
3. The angle of the sample table of laboratory microscope cutting machine can be adjusted to meet the needs of cutting at different angles.
Technical parameters of laboratory microscope cutting machine:
Product name | CSP-20T Microscope Cutting And Grinding Machine |
Product model | CSP-20T |
| Main parameters |  |
| 1. Spindle speed: 10,000-20,000 rpm. 2. Cutting disc diameter 30mm. 3. Grinding disc diameter 30mm. 4. Y-axis feed step Min: 0.5 micron. 5. Y-axis feed distance: 30mm. 6. Y-axis with manual fast feed function. 7. X-axis moving distance: 36mm. 8. X-axis with manual/automatic feed function. 9. Trinocular microscope magnification: 14-90 times. 10. Trinocular microscope working distance: 100mm. 11. Sample flip angle: 70 degrees. 12. Sample stage angle adjustment range: ±2 degrees. |
Standard accessories of laboratory microscope cutting machine:
| NO. | Name | Qty | Picture |
| 1 | Host | 1 piece |  |
| 2 | Electric control box | 1 piece | |
| 3 | drip feeder | 1 piece |
FAQ:
What is the price of this cutting grinder with microscope?
If you want to know the specific price of this machine, you can ask us by email, and we will reply you with a detailed quotation of this machine in time.
