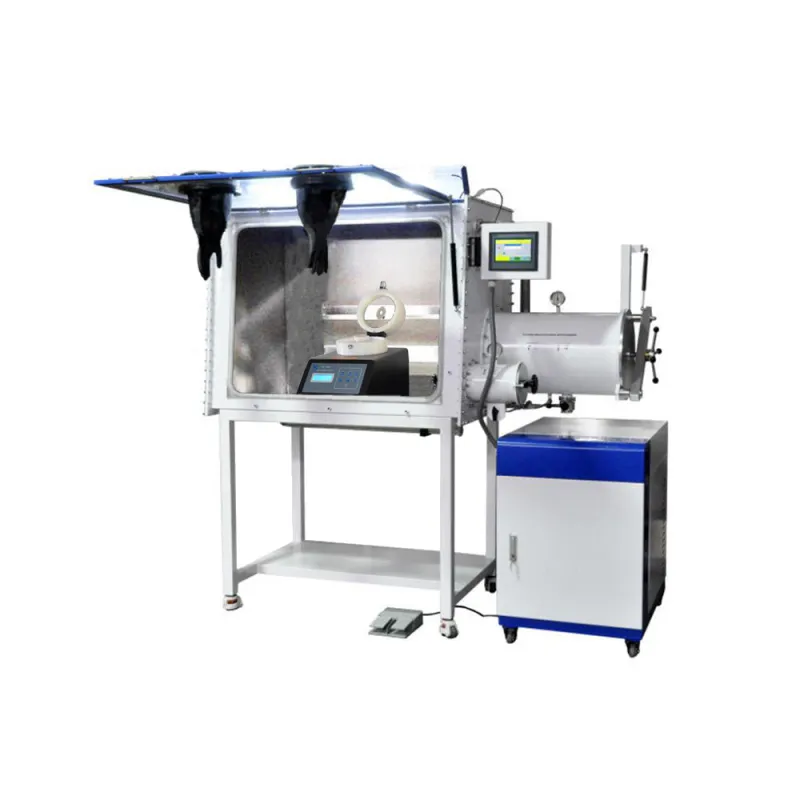

Hi-Speed Spin Coater (10K rpm And 5" Max) Use In Glove-box

Brand Shenyang Kejing

Product origin Shenyang, China

Delivery time 22 working days

Supply capacity 50 sets

VTC-100PA-DC Vacuum Spin Coater is equipped with 3 vacuum chucks (for standard) of different sizes, and different vacuum chucks can be selected according to the size of samples. During working, VTC-100-DC vacuum spin coater uses vacuum plate adsorption method to fix the sample onto the sample plate. The equipment uses two-stage program to control the speed.

Email

Hi-Speed Spin Coater (10K rpm And 5" Max) Use In Glove-box

Main Features

1. The sample is fixed by means of vacuum adsorption, which is easy to operate.

2. The degree of vacuum can reach -0.08MPa.

3. Samples can be easily centered using the positioning tool to reduce vibration or fly-outs caused by misalignment.

4. Different chucks can be used according to sample specifications, and the replacement is convenient and simple.

5. A 24V brushless DC motor is adopted and it has the advantages of high reliability, strong adaptability, simple repair and maintenance, low noise, small vibration, stable operation, fast and stable startup, stable operation after acceleration, to ensure the consistency and uniformity of coating thickness

6. The oilless parallel-bar vacuum pump has the advantages of small size, simple structure, easy operation, convenient maintenance, and no environmental pollution.

7. The chamber is made of PP material with longer service life to improve the resistance abilities of chemical corrosion and excellent stress crack, and the machine body adopts cast aluminum structure, which is durable and light in weight.

8. Coating can be carried out in an inert gas atmosphere (such as Ar, N2).

9. English operating system

10. It has the function of open-cover protection. When the top cover is opened during the coating process or at the end of the coating, the machine immediately decelerates rapidly until it stops.

11. The control interface adopts a touch screen plus single-board computer control system, and the numerical display is more intuitive and reliable.

Technical Parameters

Product Name	VTC-100PA-DC Vacuum Spin Coater
Product Model	VTC-100PA-DC
Installation Conditions	This equipment is required to be used at an altitude of 1000m or less, a temperature of 25℃±15℃, and a humidity of 55%Rh±10%Rh. 1. Water: equipped with water inlet and outlet 2. Electricity: AC220V 50Hz, must have good grounding 3. gas: N/A 4. Workbench: size 600mm×600mm×700mm, bearing more than 50kg 5. Ventilation device: needed
Main Parameters (Specification)	1. Power supply: 220V 50HZ 2. Motor power: 350W/24V 3. Speed range: 500rpm-10000rpm 4. Program operation: 12 groups of programs can be stored, each group includes 6 running stages, time range of each stage: 0-60s. 5. The setting range of the acceleration and deceleration rate: 100rpm/s-2000rpm/s 6. The machine can be equipped with heating function: * VTC-100PA-II: RT-200℃, the entire chamber and the chuck are made of PTFE, which is more resistant to high temperature and corrosion. * VTC-100PA-I: RT-100℃, the chuck is made of PTFE, the upper cover and sink/water tank are made of polypropylene. * The temperature uses an independent controller, not related to the host program control
Product Dimension and Weight	Dimension: 450mm×280mm×340mm Weight: 20kg

Standard Accessories

No.	name	qty	picture
1	Vacuum Chuck (including O-ring) (Ø19mm and Ø60mm)	2 pcs
2	Central Positioner/Locator (including 4 positioning studs)	1 pcs
3	Epoxy Injector/Syringe (20ml)	1 pcs
4	Injector/Syringe Bracket	1 pcs	-
5	Oilless Vacuum Pump	1 pcs
6	Rubber Pipe (including clamp)	1 pcs
