External Cylindrical Cutting Machine Geological Thin Section Cutting System
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 22 working days
Supply capacity 50 sets
1. Our Manual geological slice cutting machine is easy to clean and simple to operate.
2. The Manual geological slice cutting machine is small in size and easy to carry, and it is corrosion-resistant and rust-proof.
3. Petrographic thin section processing and cutting machine uses its own cooling water box to save water
Advantages of Petrographic thin section processing and cutting machine：

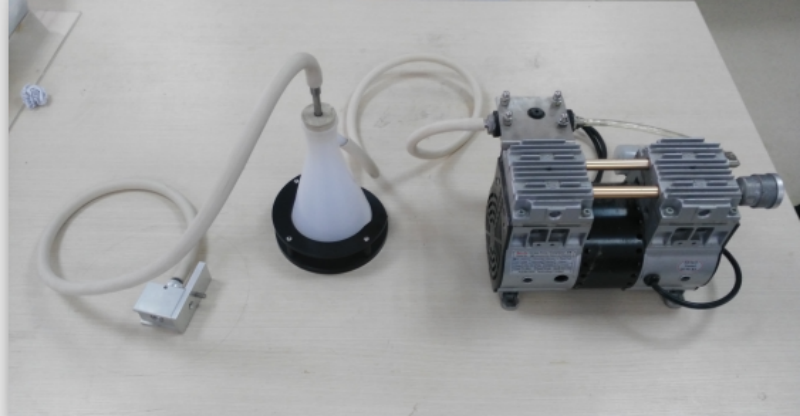

1.The SYJ-200H manual Oil-free vacuum pump has a simple body design, simple and convenient operation.
2.The shell of the Oil-free vacuum pump,Oil-free vacuum pump is made of high-grade resin in one-time molding, Oil-free vacuum pumpis waterproof, corrosion-resistant and lightweight. Oil-free vacuum pumpis the preferred tool for rough processing of samples in the laboratory.

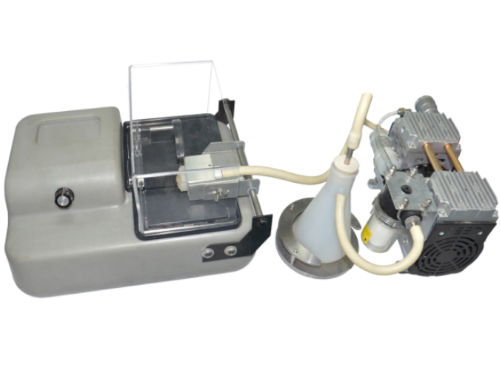

3.The SYJ-40 fast easy to assemble cutting machine adopts a stepless speed regulation device.Manual geological slice cutting machine has low noise during operation,
4.The easy to assemble cutting machine is simple to operate, safe and reliable, compact in size.
What should be paid attention to when cutting section vacuum cup：

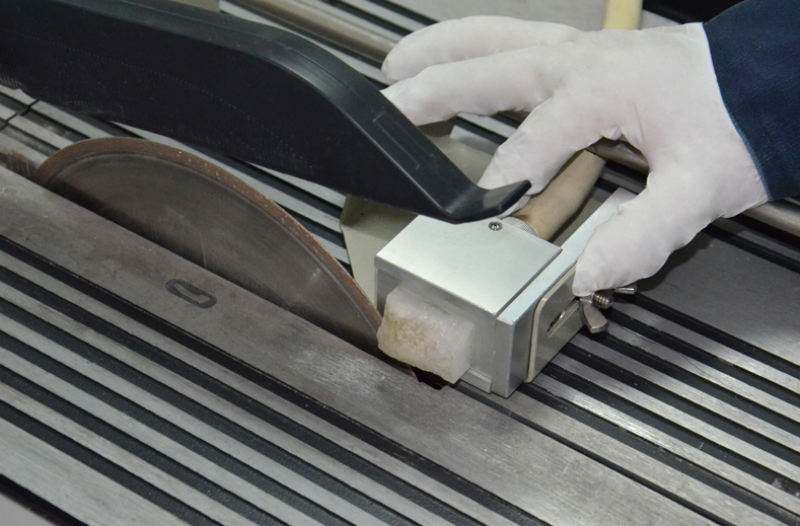

Cut thin slices with cutting section vacuum cup. Before cutting thin slices, first consider the type of sample. If the sample material is compact, use cutting section vacuum cup to cut it directly into thin slices for grinding and polishing. If the sample is loose and easy to break after cutting, you need to cut a plane on the sample first, grind and polish the plane, and then cut a 0.5mm thick slice with the slide as the reference plane, easy to assemble cutting machine.
Product Parameters：
| Product name | SYJ-40 fast cutting machine |
| Product model | SYJ-40 |
Cutting section vacuum cup installation conditions | 1. Temperature and humidity: 10-85%RH (at 25℃ without condensation) Temperature: 0-45℃. 2. There is no strong vibration source and corrosive gas around the equipment. 3. Power supply: National standard three-pole socket AC100~240V 50/60Hz 10A must have a good grounding wire |
Cutting section vacuum cup Main parameters | 1. Power supply port: DC24V11.67A (standard "power adapter") 2. Drive motor parameters: DC24V 90W 5.2A 2500rpm (MAX) 3. Spindle speed (effective value): 650-2500rpm 4. Processing size max (section): 25mmx40mm 6. Product specifications: 7. Dimensions: 390x285x290mm 8. Weight: 7kg Note: 1. Specifications of the random standard "power adapter": IN: AC100-240V 50/60Hz OUT: DC-24V11.67A, the actual power supply of the equipment shall be subject to the label attached to the back of the product. 2. Non-standard fixture pads can be set according to user requirements |
| Product name | SYJ-200H Manual Fast Cutting Machine |
| Product model | SYJ-200H |
Easy to assemble cutting machine Installation conditions |
|
Easy to assemble cutting machineMain parameters |
|
Company Introduction:
Shenyang Kejing Automation Instrument Co., Ltd. was established in May 2000. Since the birth of the first SYJ-150 low-speed diamond saw, Shenyang Kejing has always been aiming to lead the trend in the field of material analysis equipment. Our company guarantees that the equipment provided is brand new, unused, and fully meets the quality, specifications and performance requirements stipulated in the contract。
