Diamond Wire Saw For Cutting Max. 150mm
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 10 working days
Supply capacity 50 sets
1. Diamond Wire Saw Processing Machine is suitable for precision cutting of brittle and easy to cleavage crystals.
2. Diamond wire is used for cutting, and the quality of Diamond Wire Saw Processing is excellent.
3. Aluminum profile structure is used, which is beautiful and light.

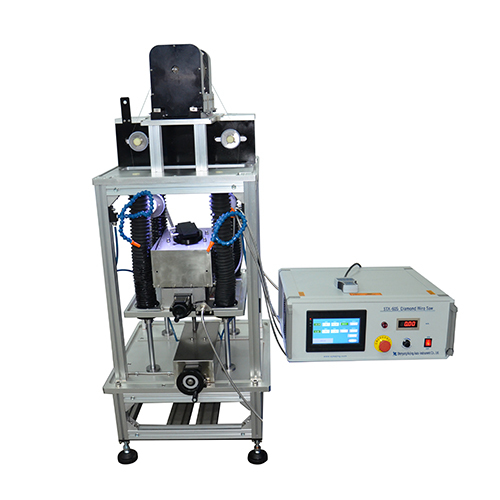

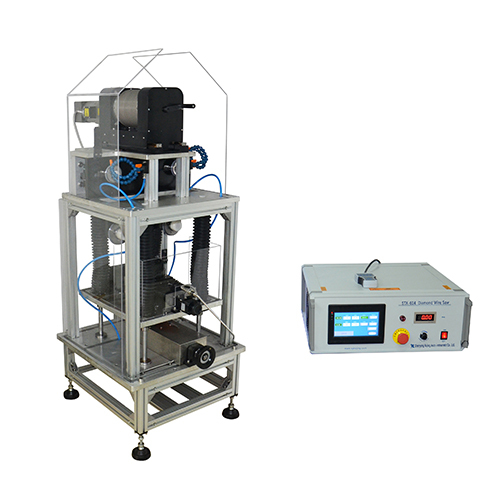

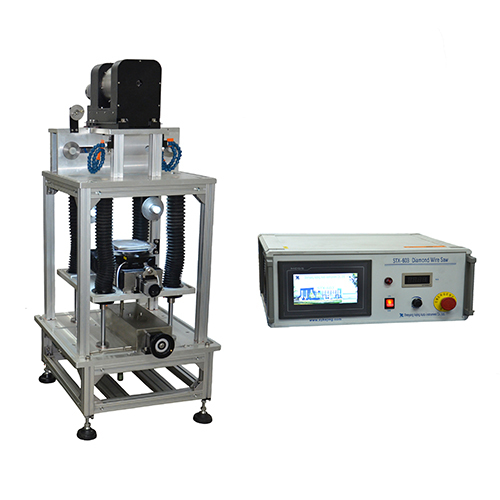

Introduction of Diamond Wire Saw Cutting Tools：
The STX-600 series Diamond Wire Saw Processing Machine is a CE-certified cutting equipment. It is mainly used for precision cutting of material analysis samples, such as ceramics, crystals, glass, metals, rocks, thermoelectric materials, infrared optical materials, composite materials and biomedical materials. This machine is particularly suitable for precision cutting of ultra-thin slices, and the thickness of the slice can reach 0.2mm. The STX-600 series Diamond Wire Saw Processing Machine is a continuous cutting diamond wire cutting machine. After setting the cutting program, the sample is continuously fed without manual adjustment, and the size of the sample after cutting is highly accurate. The cutting wire of the STX-600 series Diamond Wire Saw Cutting Tools adopts a single wire reciprocating motion mode. The length of the usable wire is long (150m), and the service life of the wire is long, which greatly improves the cutting efficiency. The tension wheel adopts a pneumatic tensioning mode. The size of the air pressure can be adjusted according to the thickness of the wire diameter. When the wire diameter is too thin, it can effectively protect the cutting wire from breaking due to excessive tension. When the cutting machine is used with an electric turntable, it can perform precision cutting. The surface of the cut sample is in good condition and presents a frosted surface without wireless marks.
Technical Parameters of Diamond Wire Saw Processing Machine:
| Product model | STX-604 | STX-605A | STX-605B | ||
The main parameters of Diamond Wire Saw Processing Machine | Power supply interface | National standard three-pole socket with insurance AC220 50Hz 10A | |||
| Total power | 350W | 370W | |||
| Diamond wire length | ≤150m | ||||
| Diamond wire diameter | φ0.25-0.45mm | ||||
| Diamond wire tensioning method | Adjustable pneumatic tensioning | ||||
| Tensioning pressure adjustment range | 0.1-0.4Mpa | ||||
| Spindle cutting rotation method | Reciprocating rotation | ||||
| Spindle drive motor | AC frequency conversion + reducer AC220V 300W | ||||
| Spindle speed | 5m/s adjustable | 8m/s adjustable | |||
| Z-axis worktable effective stroke | ≤160mm (the optional machine shall be subject to the actual product) | ||||
| Y-axis worktable effective stroke | ≤180mm | ||||
| Z, Y-axis feed accuracy | 0.01mm | ||||
| Rotation angle table | Manual: Horizontal 0-360° | Electric: Horizontal 0-360° | |||
| Angle table | Manual: ±15° | Electric: ±10° | |||
| Y-axis, Z-axis, R-axis drive motor | Precision stepper motor | ||||
| Maximum spacing between the inner sides of the two guide wheels | ≤180mm | ||||
| Maximum workpiece diameter and length for cutting | Φ150mmX150mm | ||||
| Worktable center load-bearing | ≤10Kg | ≤5Kg | |||
| Control method | PLC programmer + 4.3-inch touch screen | PLC programmer + 7-inch touch screen | |||
| Parameter display form | digital | ||||
| Remote control handle (tool setting) | ---- | Wired remote control handle | |||
| Safety control device | Bobbin overtravel, thread breakage automatic stop, emergency stop switch | ||||
Overall dimensions of Diamond Wire Saw Cutting Tools (length x width x height mm) | 640x700x1450mm | 617×620×1500mm | 720×1030×1800mm | ||
 |  |  | |||
Installation conditions of Diamond Wire Saw Cutting Tools | 1.Temperature and humidity: 10-85%RH (at 25℃ without condensation) Temperature: 0-45℃. 2.There are no strong earthquake sources and corrosive gases around the Diamond Wire Saw Processing Machine. 3.Power supply: single phase: AC220V 50Hz, national standard three-pole socket 10A, must be well grounded. 4.Air source (compressed air): ≥0.6Mp 5.Coolant: required (recommended to use --- cutting oil) 6.Workbench: no requirement 7.Ventilation device: no special requirements | ||||
Functional use of Diamond Wire Saw Processing Machine | 1. Ceramic materials: alumina ceramics, zinc oxide ceramics, zirconium oxide ceramics, target ceramics, honeycomb ceramics, semiconductor ceramics, conductive ceramics, non-conductive ceramics, etc.; 2. Crystal materials: graphite, silicon crystals (solar polysilicon, single crystal silicon), sapphire, alumina crystals, infrared glass crystals, alumina crystals, silicon carbide crystals, cesium iodide crystals, etc.; 3. Glass materials: chalcogenide glass, optical glass, quartz glass, infrared glass, glass tubes, etc.; 4. Metal materials: iron, aluminum, copper, titanium alloy, magnesium alloy and other metals and alloys, Nonferrous metals (zinc sulfide, ferrite), etc. 5. Composite materials: PVC board, carbon fiber composite materials, glass fiber composite materials, etc. 6. Rock materials: precision cutting of natural rocks, jade, meteorites, Pei Cui, agate, etc., precision slicing of various high-value materials, geological optical slices, geological thin slices (sedimentary rocks, igneous rocks, metamorphic rocks, ores), etc.; 7. Thermoelectric materials: bismuth telluride, lead telluride, silicon-germanium alloy, etc. 8. Infrared optical materials: crystals of zinc selenide, zinc sulfide, silicon, germanium, etc.; 9. Biomedical materials: Biological plasticized specimen sections (human and animal organs, jaw soft and hard tissue sections, implant observation, dental crowns and bridges, teeth and other histological specimens); orthopedic soft and hard tissue sections (femur, hip joint, vertebral body and other living tissues and hard tissues, bone histological samples with implants, etc.); cardiovascular stent sections, stone sections and other medical tissue sections; ...... Note: Materials with a hardness less than diamond wire can be precisely cut | ||||
Standard Accessories of Diamond Wire Saw Cutting Tools:
No. | Name | Qty | picture |
1 | Polyethylene (PE) Tension Wheel | 2 pcs | |
2 | Polyethylene (PE) Leading Wheel | 2 pcs | |
3 | Diamond Wire | 2 rolls |  |
4 | Water Pump | 1 pcs |
|
5 | Resin Bonded Ceramics | 2 pcs |  |
6 | Wax Bar | 4 pcs |  |
Optional Accessories of Diamond Wire Saw Cutting Tools:
No. | name | funtional type | picture |
1 | Diamond Wire (Ø0.25, Ø0.35, Ø0.42mm) | （optional） |  |
2 | Special oil for cutting | （optional） |
|
3 | MTI series heating platform | （optional） |
|
5 | Mute Oilless Air Compressor | （optional） |  |
6 | DX-100 Single Crystal Direction-Finder | （optional） |  |
7 | STX-2500 Electric Wire Installer | （optional） |
Warranty:
· One year limited with lifetime support (not including rusted parts due to inadequate storage conditions)
Logistics:
