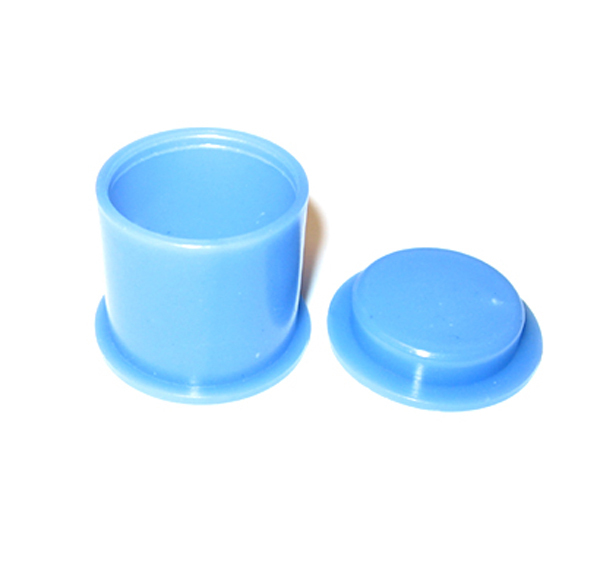

Cold Mounting Die
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 10 working days
Supply capacity 100 pcs
Cold mounting dies are used together with CXQ-3000 high throughput cold mounting machine and CXQ-2500 vacuum cold mounting machine, and can be divided into hard cold mounting dies and soft cold mounting dies.
Product Introduction
Cold mounting dies are used together with CXQ-3000 high throughput cold mounting machine and CXQ-2500 vacuum cold mounting machine. And the dies can be divided into hard cold mounting dies and soft cold mounting dies. Hard cold mounting dies are made of resin with fixed shape. Remove the back cover before demolding, which is simple. Soft cold mounting dies are made of silicone with once-through shaping, which can be directly demolded. The price of hard dies are relatively cheaper. Both types of mounting dies can be customized with different diameters or shapes depending on the size of samples. The main function of the cold mounting dies is to ensure that the mounted sample is embedded into a dimensionally stable shape in a fixed space during cold mounting, which is convenient for the smooth progress of the later experiment.
Technical Parameters
| Product Name | cold mounting die |
| Main Features | 1. low melting temperature (melting @80 °C and above ), thin wax layer, high adhesion and firm bonding 2. easy to clean after test, easy to volatilize with high temperature treatment 3. It can be used for fixing irregular-shaped samples. |
| Product Specification | 1. hard die: Ø25mm 2. soft die: Ø25mm, Ø30mm, Ø40mm, Ø50mm
|
