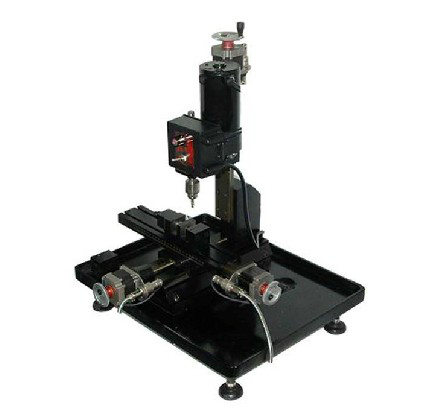

CNC Mini Precision Milling Machine
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 22 working days
Supply capacity 50 sets
ATX-2010 CNC Mini Precision Milling Machine is a precision milling equipment.
It has the advantages of small size, light weight and high milling accuracy, and can precisely process metals, ceramics, glass, wood products, plastics, PMMA and other materials.
Product Introduction
ATX-2010 CNC Mini Precision Milling Machine is a precision milling equipment that can be controlled manually or automatically with a control box. ATX-2010 CNC mini precision milling machine has the advantages of small size, light weight and high milling accuracy, and can precisely process metals, ceramics, glass, wood products, plastics, PMMA and other materials. It is suitable for teaching, scientific research and student internship of mechanical, automation, numerical control, industrial design and other majors in colleges and universities. It can also be used in factory R&D, small-scale production and DIY professional model manufacturing, etc. It mainly carries out drilling, grooving and other operations as well as straight-line milling on various samples.
Technical Parameters
Product Name | ATX-2010 CNC Mini Precision Milling Machine |
Product Model | ATX-2010 |
Main Features | small size, light weight, high precision |
Major Parameters (specification) | 1. X-axis travel distance: 200mm 2. Y-axis travel distance: 75mm 3. Z-axis travel distance: 150mm 4. main motor rotation speed: 20rpm-2800rpm 5. maximum drill hole: Ø6.5mm |
Product Dimension & Weight | Dimension: 500mm×400mm×650mm Weight: 25kg |
Standard Accessories | 1. vise: 1 pcs 2. drilling fixture: 1 pcs 3. milling cutter: 1 set |
Optional Accessories | 1. milling cutter 2. vise 3. special tooling fixture |
