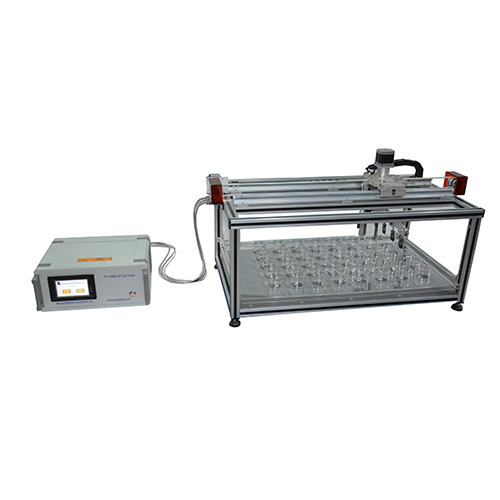

5×8 Position PLC Control Precision Dip Coater

Brand Shenyang Kejing

Product origin Shenyang, China

Delivery time 22 working days

Supply capacity 50 sets

PTL-MM02-8P Dip Coater is a precision equipment specially designed for the study of liquid growing films. PTL-MM02-8P dip coater adopts high precision speed control system and the parameter input terminal of touch screen to realize automatic control over pulling and coating of 5 samples at the same time.

Email

5×8 Position PLC Control Precision Dip Coater

Main Features

1. Up to 5 groups of samples can be pulled and coated at one single time with 8 positions for each group.

2. Different pulling speed, dipping time and drying time can be set for each of the 8 positions.

3. A high-precision stepper motor is adopted.

4. A wide range of application

Technical Parameters

Product Name	PTL-MM02-8P Dip Coater
Product Model	PTL-MM02-8P
Installation Conditions	This equipment is required to be used at an altitude of 1000m or less, a temperature of 25℃±15℃, and a humidity of 55%Rh±10%Rh. 1. Water: N/A 2. Electricity: AC220V 50Hz, must have good grounding 3. gas: N/A 4. Workbench: size 800mm×600mm×700mm, bearing more than 200kg 5. Ventilation device: no need
Main Parameters (Specification)	1. Power supply: 220V 50Hz 2. X-axis speed: 500mm/min-5000mm/min 3. Z-axis speed: 1mm/min-200mm/min 4. Effective dipping length: 65mm 5. Sample size: 75mm×25mm×2.5mm 6. The number of samples to be pulled at the same time: 5 pcs 7. Pulling station of each sample : 8 pcs 8. Dipping and drying time setting: 1-999s 9. Cycle times: 1 - 999 times

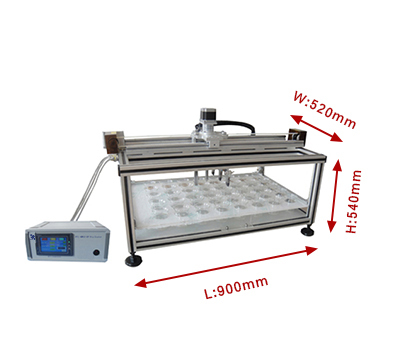

Product Dimension and Weight	Dimension: 900mm×520mm×540mm Weight: 20kg
Standard Accessories	1. Beaker Fixing Plate: 1 pcs 2. Clamp Fixing Plate: 1 pcs 3. Beaker: 40 pcs 4. Clamp: 5 pcs 5. Protective Cover: 2pcs
Optional Accessories	1. Different sizes of beakers and beaker holder can be customized according to user's needs. 2. Thermostatic Water Tank (power: 800W; thermostatic temperature: RT-70°C; temperature accuracy: ±1°C regardless of environmental impact; volume: 25L)
