Vacuum Arc Melting System With Large Cavity Up To 200 G (Fe)

Brand Shenyang Kejing

Product origin Shenyang, China

Delivery time 10 working days

Supply capacity 50 sets

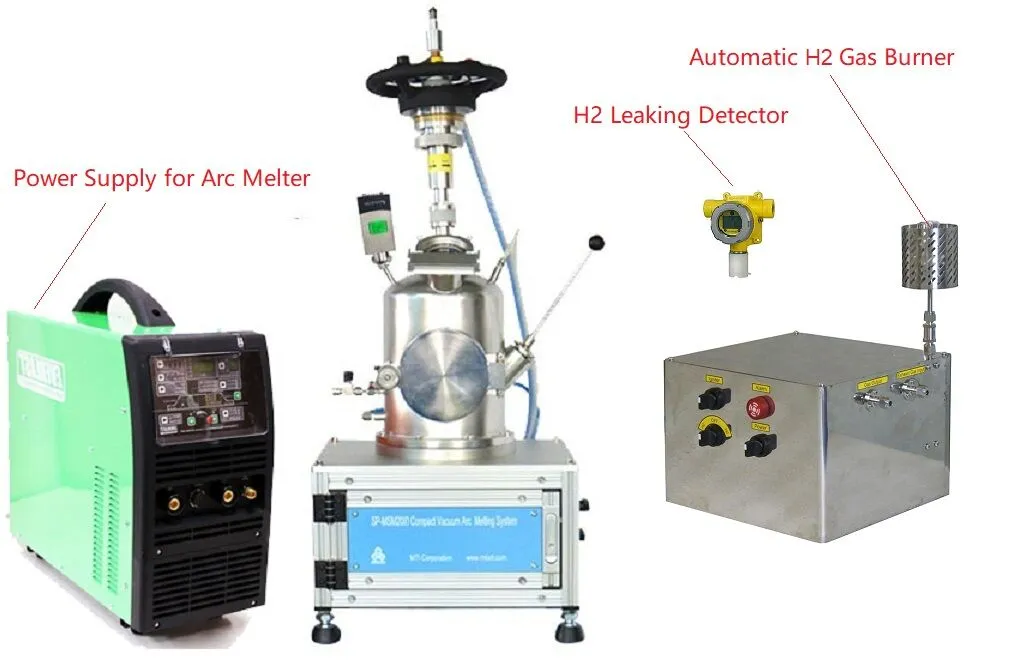

SP-MSM200 (Non-Consumable) Compact Metal Melting Furnace is a small arc melting furnace, and can be used for preparation, purification and mixed applications of new alloy materials. This device can also be connected to hydrogen detectors and automatic burners for preparation of metal hydrides .

Email

Vacuum Arc Melting System With Large Cavity Up To 200 G (Fe)

Product Introduction

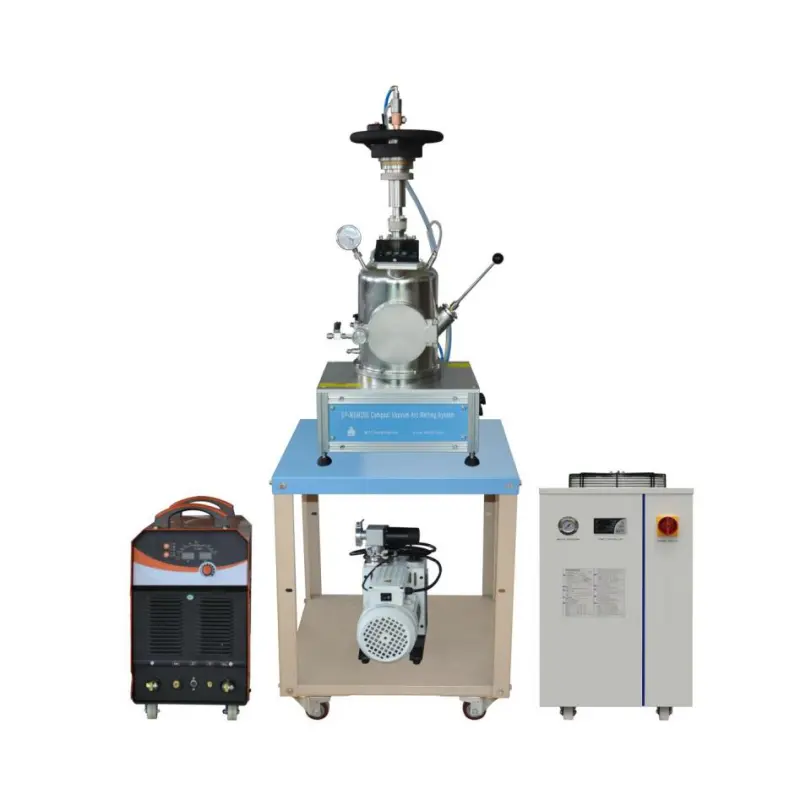

SP-MSM200 (non-consumable) compact metal melting furnace is a small arc melting furnace. The alloy ingot can be turned over for multiple smelting without destroying protective atmosphere, and up to 7 samples can be prepared at the same time. It is an ideal equipment for preparing metal and alloy samples in universities and research institutes, and can be used for preparation, purification and mixed applications of new alloy materials. This device can also be connected to hydrogen detectors and automatic burners for preparation of metal hydrides (e.g. LaNi5H6, MgH2, and NaAlH4).

Main Features

1. It is equipped with a Ø120mm furnace door, which is convenient for taking and placing samples

2. It is equipped with front and rear observation windows, which is convenient for observing the arcing and melting state.

3. The vacuum chamber, copper crucible and arcing electrode are all cooled by water.

4. The up and down movement adopts steering wheel design, and the operation rocker is flexible.

5. In order to ensure that the alloy ingot can be turned over for multiple smelting without destroying protective atmosphere, a manipulator turn-over mechanism is used in the melting furnace.

6. The crucible is small in size and large in quantity, which can facilitate the production of multiple samples and avoid mutual contamination between samples.

7. Simple to operate, safe and convenient, compact in design, covering less space

Chamber door	Front observation window	Rear observation window	Turn-over manipulator	Consumable electrode (for placing flashlight)	Electrode control (arc ignition and current regulation)

Technical Parameters

Product Name

SP-MSM200 (Non-Consumable) Compact Metal Melting Furnace

Installation Conditions

This equipment is required to be used at an altitude of 1000m or less, a temperature of 25℃±15℃, and a humidity of 55%Rh±10%Rh.

1. Water: The equipment is equipped with a self-circulating cooling water machine (filled with pure water or deionized water)

2. Electricity: AC380V 50Hz (63A air switch), must have good grounding

3. Gas: The equipment chamber needs to be filled with argon gas (purity 99.99% or more), and argon gas cylinders are required (with Ø6mm double ferrule joints)

4. Workbench: floor type, 900mm×600mm×700mm, bearing more than 200kg

5. Ventilation device: needed

Major Parameters

(Specification)

1. Power supply: AC380V 50Hz (optional)

2. Power of the whole machine: <30kW (optional)

3. Vacuum chamber: Ø200mm×300mm

4. Arcing method: high frequency arcing

5. Power output current range: 20-630A

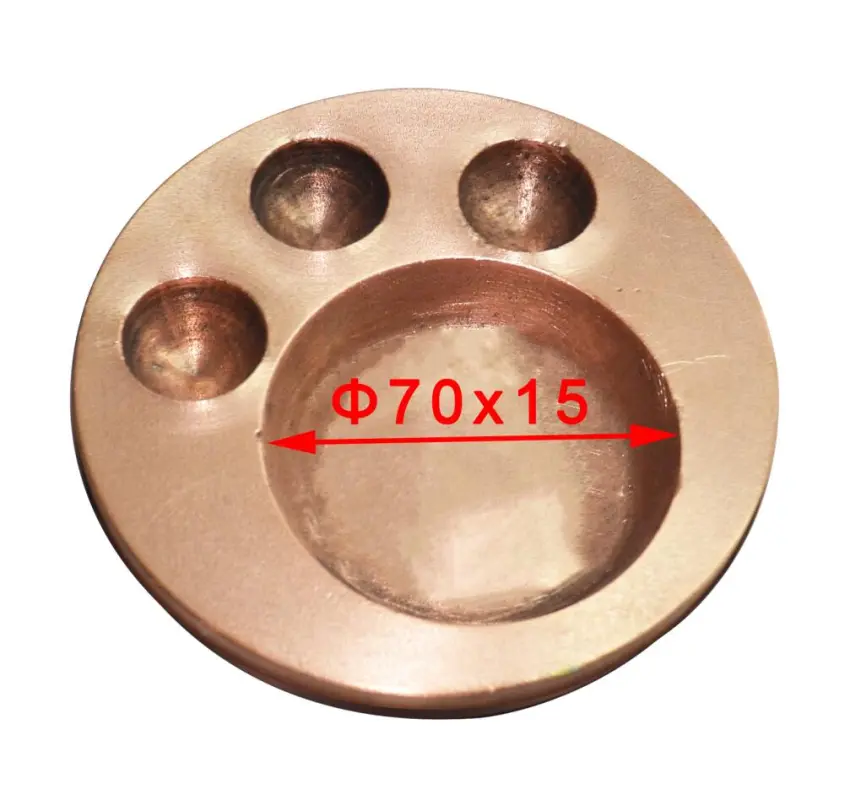

6. Crucible cavities and smelting weight: 4 pcs

Three of them are hemispherical SØ25mm (capable of smelting 20g stainless steel), 1 pcs φ70×15 (capable of smelting 200g stainless steel),

(The crucible can be customized with special size according to customer's request)
