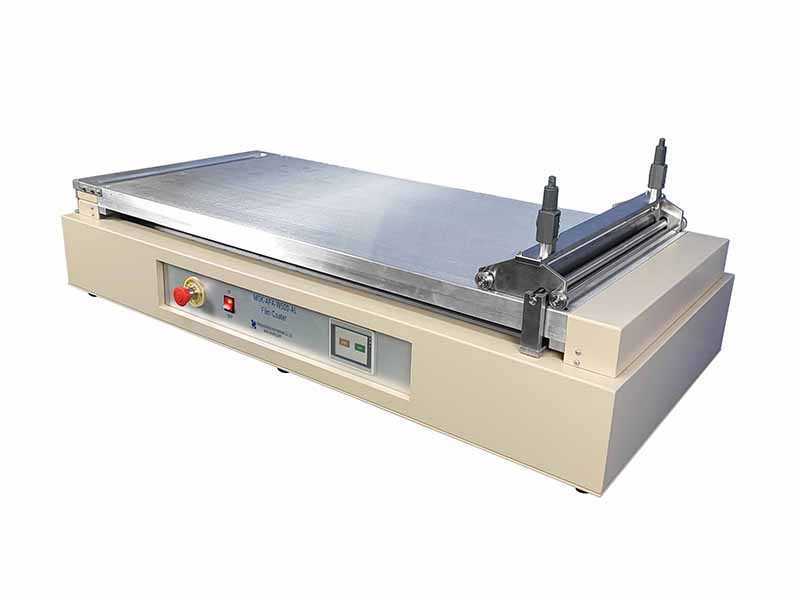

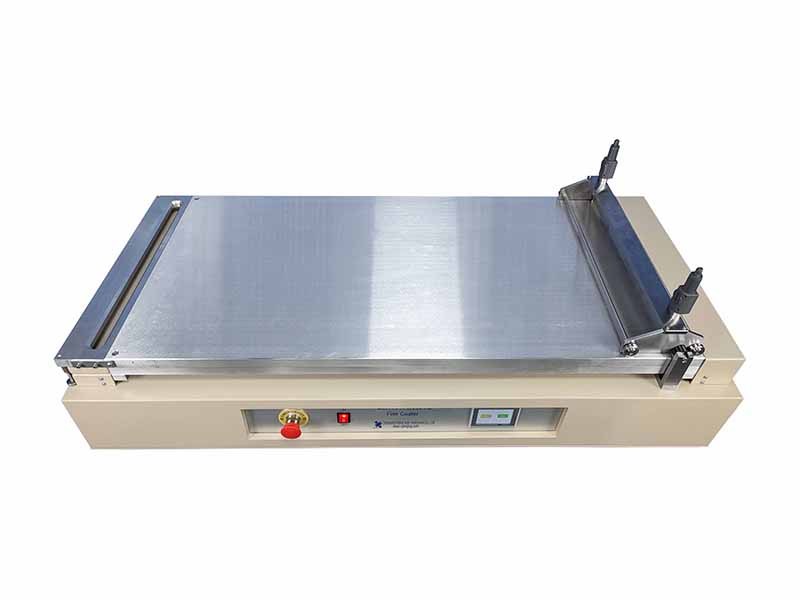

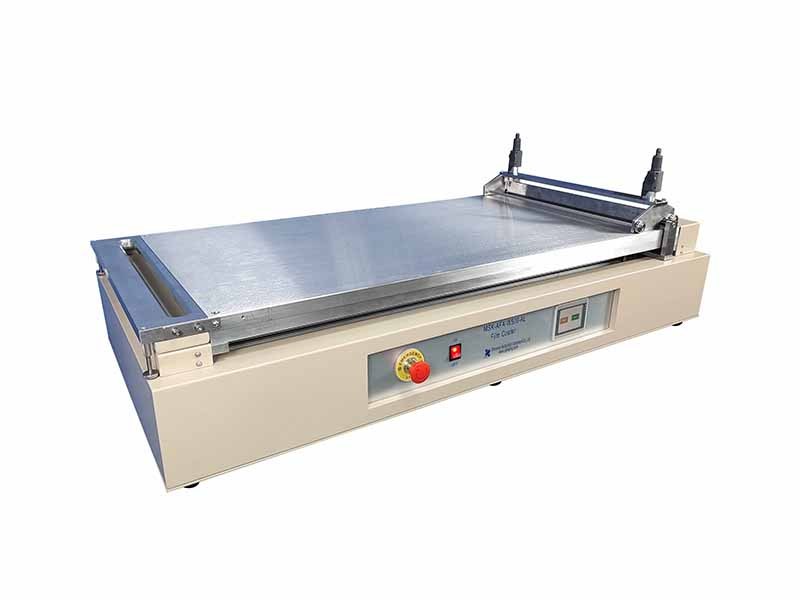

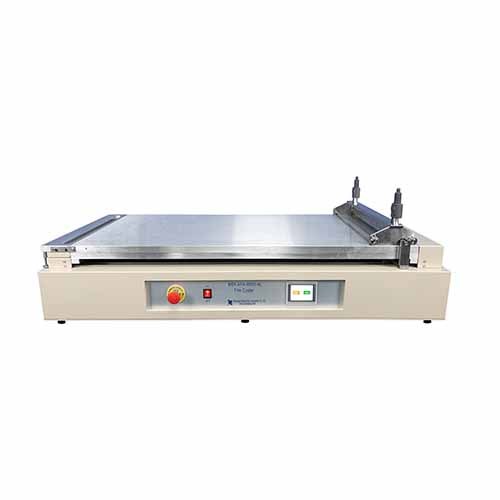

MSK-AFA-W500-AL Large Flat Plate Coating Machine
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 10 working days
Supply capacity 50 sets
1. Flatbed coating machine uses precision stepping gearbox motor, PLC accurately controls the coating speed.
2. Flatbed coating machine has good consistency and uniformity for thin film, reducing the loss during processing.
3. We can provide you with customized services according to the quantity, type and other requirements of Sheet film coater with vacuum chuck you provide.
Advantages of Sheet Film Coater with Vacuum Chuck：
1.Sheet film coater with vacuum chuck uses a stainless steel roller scraper, which effectively reduces the friction between the scraper and the vacuum suction cup when moving, and can improve the quality of the coating.
2.Multifunctional Film Coater places a waste collection box at the bottom of the left side of the vacuum suction plate to collect excess coating to ensure the cleanliness of the equipment itself and the surrounding area, and reduce environmental pollution.
3.Automatic film coater for battery electrode coating has a variety of types to meet more of your needs.
Introduction of film coating machine：
MSK-AFA-W500-AL film coating machine is mainly used for coating liquid or colloidal films in the laboratory. The film coating machine uses a precision stepping gearbox motor to accurately control the coating speed, so as to achieve the purpose of uniformly advancing the scraper for coating. The roller scraper is made of all stainless steel, which effectively reduces the friction resistance between the scraper and the vacuum suction cup when the scraper moves, and can improve the consistency and uniformity of the coating. Flatbed coating machine uses bottom vacuum to absorb samples. Multifunctional Film Coater is equipped with a scraper limiter, which can adjust the length of the coated film at will. The roller scraper stops automatically when it reaches the limit. This Multifunctional Film Coater is specially designed to prepare various films by coating, such as lithium battery electrode films, various ceramic films and polymer films.
Multifunctional Film Coater Parameters：
| Product Name | MSK-AFA-W500-AL Large Flat Plate Coating Machine |
| Model of film coating machine | MSK-AFA-W500-AL |
| Installation conditions of flatbed coating machine | Operating environment of Flatbed coating machine: Humidity: 10-85%RH (at 25℃ without condensation) Temperature: 0-45℃ 1. Water ofFlatbed coating machine: Not required 2. Electricity of Sheet film coater with vacuum chuck: DC24V5A 3. Gas of Multifunctional Film Coater: Vacuum negative pressure (vacuum pump) 4. Workbench: Recommended 1500×800×500mm; load-bearing capacity 127KG or more 5. Ventilation device: No special requirements |
| Main parametes offilm coating machine | 1. Power supply interface: DC24V 5A (the actual value shall be subject to the label attached to the equipment) |
| 2. Total power offilm coating machine: 80W | |
| 3. Vacuum suction cup dimensions (length × width): 1100mm × 550mm | |
| 4. Vacuum adsorption size (length × width): 1000mm × 500mm | |
| 5. Plane accuracy of vacuum cup: ±0.005mm | |
| 6. Coating speed of film coating machine: 500-5000mm/min | |
| 7. Coating length of film coating machine: 1-1000mm≥(length adjustable) | |
8. Rolling scraper of Multifunctional Film Coater: Se-KTQ-500: Standard coating width: 500mm; Film thickness adjustment range: 0-5000um; PTFE baffle to prevent slurry leakage; Flatbed coating machine scraper frame is equipped with 4 rollers to facilitate the movement of the film maker. Equipped with 2 digital micrometer heads, the adjustment accuracy is 3um.
| |
| 9. Optional heating function (maximum heating temperature 120℃, heating plate power 2000W) | |
10. Optional extrusion coating head (For the catalyst electrode coating preparation in low-temperature fuel cells, gas diffusion porous carbon (GDL) is usually used as the substrate for coating. At this time, scraper coating is not suitable, and extrusion coating must be used (the extrusion head is at a certain distance from the rough porous substrate).
| |
11. Overall dimensions (length × width × height): 1280mm × 620mm × 430mm
| |
| Note of Sheet film coater with vacuum chuck: The actual power supply of the equipment shall be subject to the label attached to the rear of the product. |
