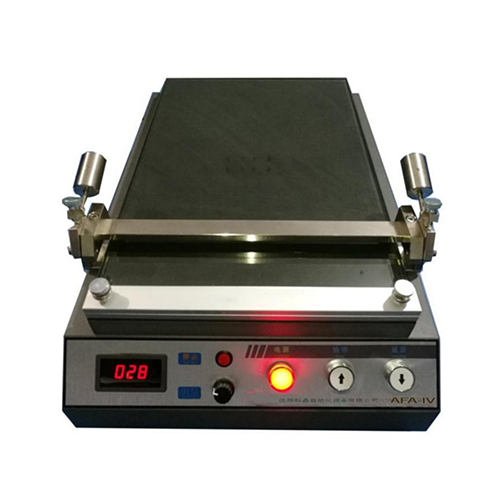

MSK-AFA-IV Small Coating Machine
Brand Shenyang Kejing
Product origin Shenyang, Liaoning
Delivery time 10 working days
Supply capacity 50 sets
1. Coating machine for stepless speed uses imported parts, which is safe and durable.
2. Coating machine for stepless speed has been upgraded with technology and can be adapted to a variety of substrates.
3. Coating machine for stepless speed is independently developed by us, which is compact and durable and suitable for laboratory experiments.
Introduction of Coating machine for stepless speed：
MSK-AFA-IV Laboratory thin film coater adopts an organic combination of electrical control and machinery, which can save a lot of raw materials, improve process technology, and facilitate the coating of high-quality cloth film on different substrates, reducing and eliminating the error of film thickness on the surface of the sample after coating caused by human factors such as different coating speed and pressure. Coating films of different thicknesses require coating rods of different specifications. The coating speed can be adjusted accordingly through a speed control knob. The front and rear ends of the Laboratory thin film coater have limit stops, and the machine automatically stops coating when the limit stops. MSK-AFA-IVLaboratory thin film coater uses imported control components, which are strong and durable.
The Laboratory thin film coater is mainly used for production tests of glue, paper, and thin films, and can also be used in other related coating and coating industries. The equipment is small and suitable for coating experiments on small substrates in the laboratory.
Main features of Laboratory thin film coater：
1. Thin film material coating machine adjusts coating thickness by replacing coating sticks.
2. Thin film material coating machine adjusts coating speed by knob, and speed can be displayed on the display.
3. Thin film material coating machine uses imported parts.
4. Thin film material coating machine can be coated evenly.
Technical Parameters of product：
Product name | MSK-AFA-IV Small Coating Machine |
Product model | MSK-AFA-IV |
Installation conditions | This equipment requires to be used at a temperature of 0℃-45℃ and a humidity of 10-85%Rh (at 25℃ without condensation). 1. Water: Not required. 2. Electricity: AC220V; 50Hz, must be well grounded。 3. Gas: Not required. 4. Workbench: size 800mm×600mm×700mm, load-bearing capacity of more than 200kg. 5. Ventilation device: Not required. |

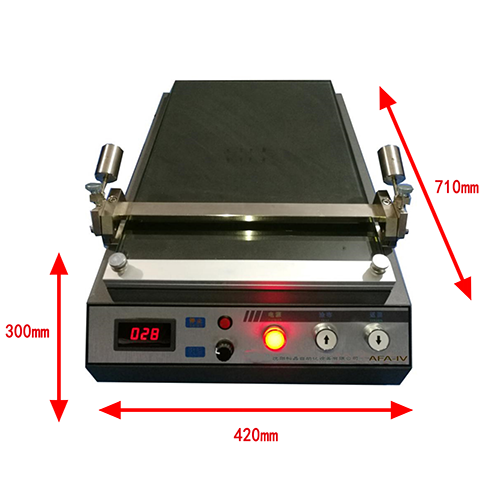

Main parameters | 1. Power supply: 220V 50Hz. 2. Total power 48W. 3. Coating speed: 0-1.2m/min (stepless speed change). 4. Coating accuracy: 0.001mm (1μ, i.e. 1 micron). 5. Coating area: 300mm×420mm. 6. Coating rod material: stainless steel, length 40cm. ·Size: 710mm (length) × 420mm (width) × 300mm (height); ·Weight: about 20kg.
|
Standard accessories of product：
| NO. | Name | Function | Picture |
| 1 | The film applicator with adjustable thickness can be customized, with a minimum thickness of 5μm and an adjustment accuracy of 1μm. | (optional) | - |
| 2 | Coating rollers with coating thickness of 5μm, 10μm, 15μm, 20μm, 25μm, 30μm, 40μm, 50μm, 60μm, 80μm, 100μm, 120μm, 150μm, and 200μm. | (optional) | - |
| 3 | Frame Preparation |  |
