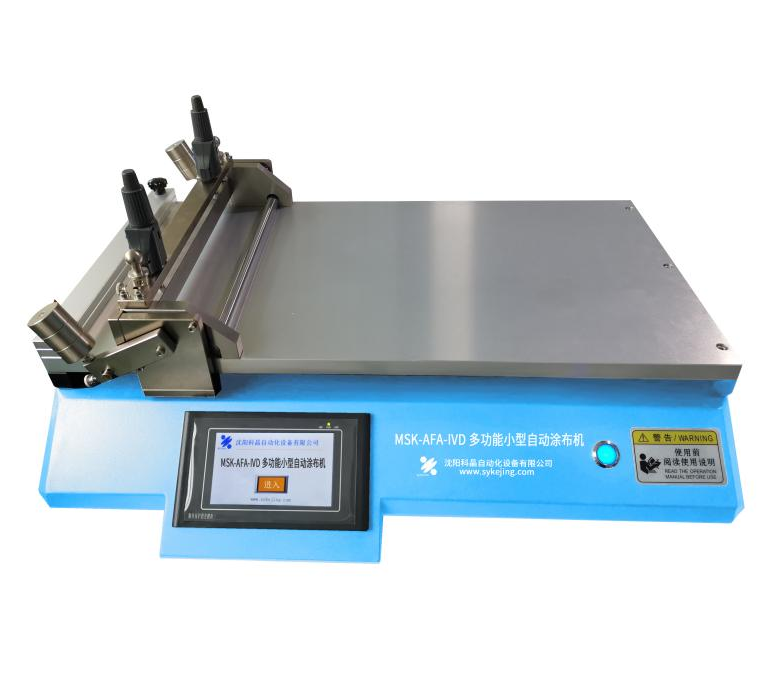

Lab Multifunctional Small Automatic Coater Machine
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 10 working days
Supply capacity 50 sets
1. The speed of film coater with doctor blade can reach 1-10 m/min.
2. The effective coating size of film coater with doctor blade: 300*450mm.
3. The scraper material of film coater with doctor blade is alloy steel, which is strong and durable.
Introduction of film coating machine with doctor blade and bar:
MSK-AFA-IVD film coating machine with doctor blade and bar uses high-quality accessories and is inexpensive. It has been favored by many multinational corporate R&D institutions and many well-known universities at home and abroad. Film coating machine with doctor blade and bar controls speed and stable pressure to ensure coating effect, uniformity and stability of coating. The biggest feature of the small laboratory coating machine is that it can conduct coating experiments on various flat materials such as paper, plastic, metal, PVC,PET, cloth, aluminum alloy plate, etc. The biggest advantage of the film coating machine with doctor blade and bar is that it can repeatedly and continuously prepare smooth and flawless test samples. It is convenient for experimenters to accurately coat on different substrates, reducing and eliminating errors caused by human factors such as different coating speeds and pressures. The coating head of the film coating machine with doctor blade and bar uses a stainless steel u-shaped scraper, imitating the large coating machine head to ensure that the experimental product is consistent with the production coating quality. The coating head can be quickly opened 90 degrees to clean the scraper after each experiment.
Advantages of lab small blade coater:
1.Lab small blade coater adjusts coating thickness by replacing coating stick.
2.Lab small blade coater adjusts coating speed by knob, and speed can be displayed on the display.
3.Lab small blade coater uses imported parts.
4.Lab small blade coater can achieve uniform coating.
Technical specifications of film coater with doctor blade：
| Product name | MSK-AFA-IV Film Coater With Doctor Blade |
| Product model | MSK-AFA-IV |
| Main parameters | 1. Power supply: 220V, 50HZ. 2. Total power: 48W (standby) 2000W (heating). 3. Coating uniformity: ±5%. 4. Effective coating size: 300*450mm. 5. Coating thickness: 0.005-5mm (wet film) (different glue viscosity errors are different, subject to actual test). 6. Scraper material: alloy steel (optional heating scraper, scraper heating temperature: room temperature-180 degrees). 7. Speed: 1-10 meters/minute. 8. Heating temperature: room temperature-200 degrees. 9. Product specifications: Dimensions: Overall dimensions 680*480*380mm. Weight: 38kg. |
Standard accessories for lab small blade coater:
| NO. | Name | Function | Picture |
| 1 | The film applicator with adjustable thickness can be customized, with a minimum thickness of 5μm and an adjustment accuracy of 1μm. | (Optional) | -- |
| 2 | The coating rollers with coating thickness of 5μm, 10μm, 15μm, 20μm, 25μm, 30μm, 40μm, 50μm, 60μm, 80μm, 100μm, 120μm, 150μm, 200μm. | (Optional) | -- |
