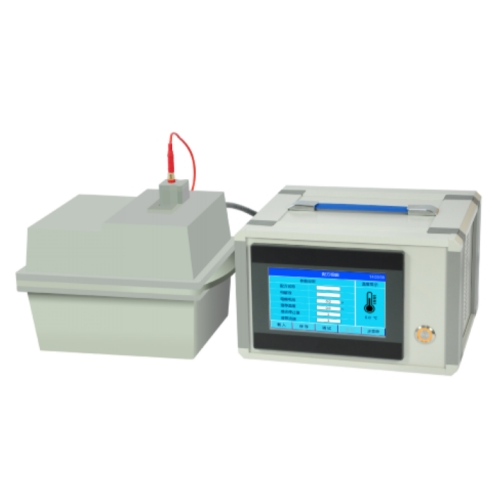

Electrolytic Double Spray Thinning Instrument
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 10 working days
Supply capacity 50 sets
1. The automatic twin jet electropolisher can scan metal samples within a selected range of voltage to obtain the anodic polarization curve of the metal, making it convenient to select the appropriate polishing voltage.
2. Automatic twin jet electropolisher adopts a new submersible pump body to transport liquids more stably and efficiently.
3. The automatic twin jet electropolisher uses an inlet filtration system to ensure that the entire system will not be blocked.
Introduction to the automatic double jet electrolytic thinning instrument:
The TJ100-SE electrolytic double spray thinning instrument is a touch-screen control, visual, intelligent metal electron microscope sample preparation equipment that can accurately control temperature by an independent cooling source. The automatic double jet electrolytic thin instrument has the characteristics of storage and recall of preparation parameters, good sample preparation effect, and high repeatability. The automatic double jet electrolytic thin instrument is suitable for thinning the prepared transmission electron microscope samples in colleges, universities and scientific research institutes. It is simple to operate and easy to use. It is an indispensable sample thinning equipment in the transmission electron microscope laboratory.
Advantages of automatic double jet electrolytic thinning instrument:
1. Touch screen man-machine interface: The TJ100-SE twin jet electropolisher uses a 7-inch full-color touch screen control, which is easy to operate and easy to use. Good man-machine interface design, intuitive data, real-time display of electrolyte temperature and current change curves.
2. Parameter storage and call function: Automatic double jet electrolytic thinning instrument can name, store and call at any time the polishing voltage, pump flow speed, photosensitivity stop value, recommended temperature and electrolyte name set for each operation.
3. Unique voltage scanning function: Twin jet electropolisher can scan metal samples within a selected range of voltage changes, and the anodic polarization curve of the metal can be obtained. Appropriate polishing voltage can be selected on the polarization curve.
4. Stable performance and durability: Twin jet electropolisher uses corrosion-resistant gear pump for liquid transmission, advanced plc control, subdivided pump flow speed and light-sensing stop value, and good sample preparation repeatability. The electrolytic cell is separated from the control part to minimize the impact of corrosive media on the control part. The electrolytic cell is divided into an inner cell and a lower shell, and the double-layer protection provides better insulation and cooling effect.
5. Independent cooling source refrigeration control: Twin jet electropolisher adopts independent low-temperature circulation cold pump refrigeration control. The touch screen directly sets the temperature, and establishes a second constant temperature field in the electrolytic cell for constant temperature control, which greatly improves the repeatability of sample preparation.
6. Easy-to-replace corrosion-resistant sample holder: Automatic twin jet electropolisher is equipped with a specially designed sample holder with built-in platinum electrode and a pressing device. The rotating shaft clamp cover presses and fixes the sample, making it easy to load and remove the sample. The bottom segmented design avoids the siphon effect. Independent and portable sample holder for easy replacement.
Technical parameters of automatic double jet electrolytic thin instrument:
Product model | TJ100-SE Automatic double jet electrolytic thinning instrument |
Technical parameters | 1. Power input:AC220V/50Hz,600W. 2. Liquid nitrogen cooling temperature control:≥-55℃. 3. Cooling machine cooling temperature control:≥-30℃±1C(external optional). 4. Electrolytic voltage:0-220 V. 5. Electrolytic current:0-1000mA. 6. Electrolyte injection volume:500ml. 7. Light sensitivity range:0-800. 8. Hydraulic pump speed regulation:0-99. 9. Sample holder: Suitable for φ3mm standard samples. |
Optional accessories | circulating cold pump:
1. Liquid tank volume: 5L. |
| Product specifications | 1.Insulation box size:325mm(W)240mm(D)*170mm(H). |
