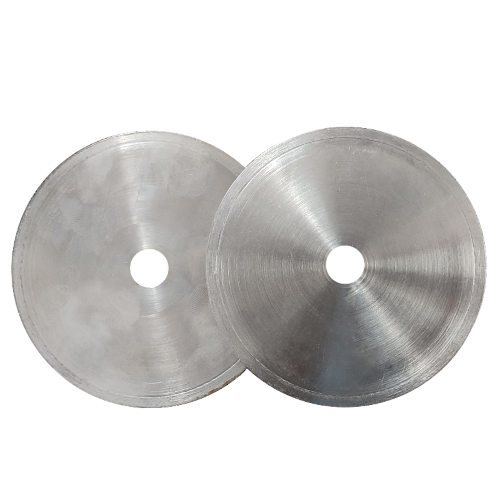

Edge Sintered Diamond Saw Blade
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 10 working days
Supply capacity 100pcs
1. Diamond sintered saw blade has a variety of specifications and technical parameters, suitable for different cutting machines and materials.
2. Diamond sintered saw blade has better sharpness and cutting speed than traditional saw blades, and can complete cutting tasks quickly and accurately.
3. Diamond sintered saw blade produces relatively less noise and vibration during cutting, which improves the working environment.
Introduction of sintered diamond saw blade:
Sintered diamond blade is a composite of diamond powder and metal with a width of 4mm-7mm sintered on the edge of a steel base. The diamond particle size and concentration in this sintered diamond blade are moderate, and the hardness of the binder is high, so that the edge sintered tool part has higher cutting ability and wear resistance. This type of sintered diamond blade not only retains the sharpness of diamond, but also has the toughness of the base metal, so that the saw blade will not be deformed and damaged due to the centrifugal force generated by high-speed rotation when cutting samples. Sintered diamond saw blade is suitable for cutting crystals, ceramics, glass, rock samples, ore samples, concrete, cemented carbide, refractory materials and various superhard materials. Sintered diamond saw blade is made of different specifications according to different equipment models, and is mainly suitable for SYJ series external cylindrical cutting machines manufactured by our company.
Advantages of sintered diamond blade:
1. The overall stability and durability of sintered diamond blade are excellent.
2. Compared with traditional cutting tools, sintered diamond blade has high cutting efficiency and low energy consumption, which is conducive to energy conservation and emission reduction.
3. Sintered diamond blade is insoluble in acid and alkali solutions and has good corrosion resistance.
Technical parameters of diamond sintered saw blade:
| Product model | Edge Sintered Diamond Saw Blades |
| Technical parameters | 1. Ø100mm×Ø12.7mm×0.4mm is suitable for SYJ-150 and SYJ-400 cutting machines. 2. Ø125mm×Ø12.7mm×0.5mm is suitable for SYJ-160 and SYJ-400 cutting machines. 3. Ø150mm×Ø12.7mm×0.6mm is suitable for SYJ-160 and SYJ-400 cutting machines. 4. Ø200mm×Ø25.4mm×1.0mm is suitable for SYJ-200H cutting machines. 5. Ø200mm×Ø25.4mm×1.0mm, Ø200mm×Ø32mm×1.0mm are suitable for SYJ-200 cutting machines. The above are standard sizes. Please contact our sales staff if you need special sizes! |
