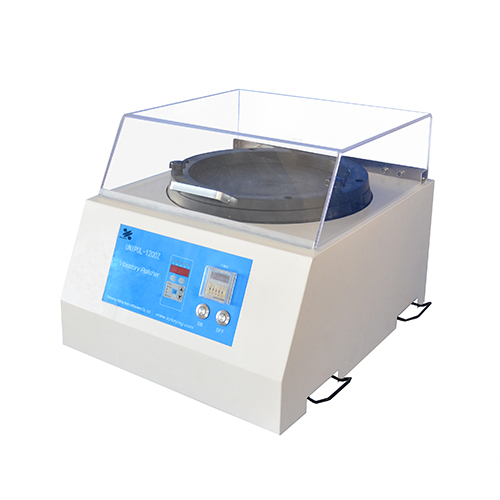

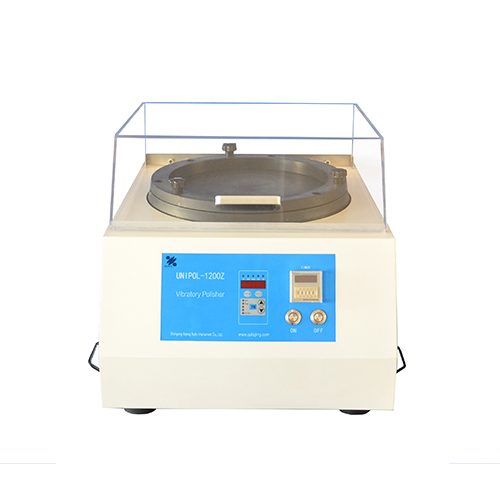

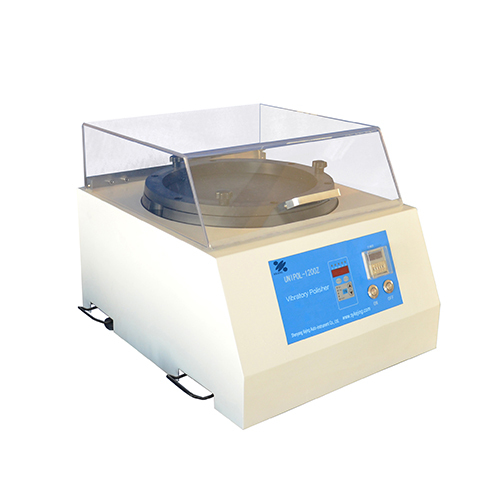

Compact Vibratory Polisher With 12" Working Plate
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 22 working days
Supply capacity 50 sets
UNIPOL-1200Z Vibration Polishing Machine is a newly designed metallographic and petrographic vibration polishing machine and is widely used in major enterprises, institutions and scientific research institutions. It is very effective for the preparation of samples for EBSD analysis of SEM scanning electron microscope. It completely surpasses similar products worldwide.
Main Features
1. New generation frequency conversion control / inverter control, more perfect polishing surface of samples, and digitally displayed operating parameters
2. Fully automatic polishing without operator participation. The running time can be set to make it possible for unattended automatic polishing, improving the work efficiency of personnel and reducing the cost of enterprises.
3. High-strength glass fiber reinforced plastic shell, anti-corrosion and anti-collision. The transparent dust cover keeps the polishing plate clean.
4. It can carry inlaid samples or larger non-inlaid samples.
5. Sample holders of different specifications are optional: 1'', 1.25'', 1.5'', 2'', 32mm, 50mm and special customized specifications
Technical Parameters
Product Name | UNIPOL-1200Z Vibration Polishing Machine |
Product Model | UNIPOL-1200Z |
1. Good ventilation and heat dissipation environment 2. Keep away from steam, dust, especially oily dust. 3. No corrosive, flammable gas, liquid. 4. No floating dust and metal particles. 5. The installation platform should be firm and vibration-free. 6. Keep away from electromagnetic noise. 7. Temperature and humidity: 10-85%RH (at 25℃ no condensation) 8. Temperature: -10℃~40℃. 9. Power supply: single-phase: AC220V 50Hz must be well grounded | |

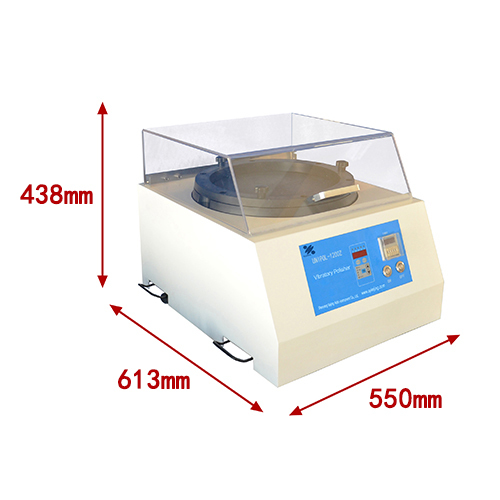

Main Parameters (Specification) | 1. Diameter of working plate: 316mm 2. Input voltage: AC220V 50Hz 3. Total power: 450W 4. Frequency: 40.0~ 240Hz 5.Voltage:0-260V 6. Fixture: Standard 1.25'',Options:1'', 1.5'' and 2'' 7. Maximum setting time: 99 hours 99 minutes 8. Dimension (L × W × H): 550 × 613 × 438 mm 9. Weight: about 88kg
|
Standard Accessories
No. | name | qty | picture |
1 | 1.25'' Fixture | 3 pcs | - |
2 | 1.25'' Sample Holder | 1 pcs | - |
3 | 1.25'' Balancing Block | 3 pcs | - |
4 | Polishing Pad (Nubuck Leather, Synthetic Leather) | 3 pcs each |
|
5 | 80nm Aluminum Oxide Polishing Liquid | 1 bottle (500ml) | - |
6 | 50nm Silicon Oxide Polishing Liquid | 1 bottle (500ml) | - |
Optional Accessories
No. | name | functional type | picture |
1 | Fixture, Balancing Block, Sample Holder (1'', 1.5'', 2'' and other customized dimension) | (optional) | - |
Warranty
· One year limited with lifetime support (not including rusted parts due to inadequate storage conditions)
