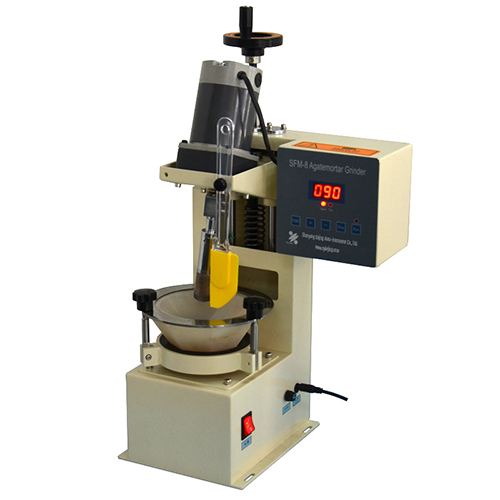

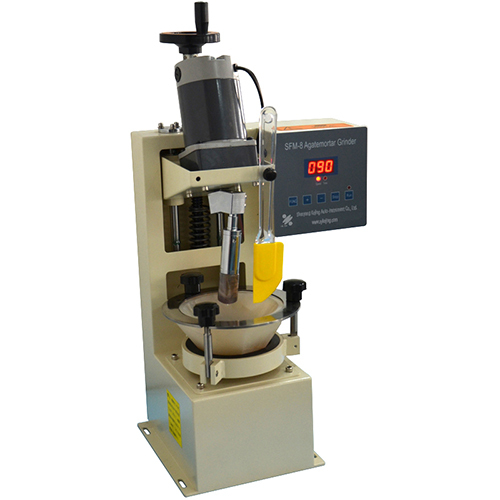

Automatic Desktop Grinder With 5" Agate Mortar

Brand Shenyang Kejing

Product origin Shenyang, China

Delivery time 10 working days

Supply capacity 50 sets

SFM-8 Agate Mortar Grinder is mainly composed of three parts: a grinding rod, an agate mortar and a scraper. During working, the agate mortar rotates clockwise, and the grinding rod grinds solid particles into smaller and thinner ones in the mortar. And at the same time, the stationary scraper scrapes the particles on the edge of the mortar, so that the solid particles return to the mortar to continue grinding.

Email

Automatic Desktop Grinder With 5" Agate Mortar

Set a reasonable grinding time for different solid particles (generally, the longer the grinding time, the finer the particles), so that both coarse particles and fine particles are ground into very fine granules. The particle size can reach micron level, and some can even reach nanometer level, and the whole process of grinding can be controlled automatically. SFM-8 agate mortar grinder is an ideal grinding equipment for small amount of micro powders in laboratories.

Main Features

1. The particles can reach micron level after grinding.

2. Precise control over rotating speed of the grinding rod and the grinding time

3. It is used to grind superhard material micropowder, electronic micropowder, resin micropowder, food micropowder, pharmaceutical micropowder and chemical micropowder.

4. Simple operation

Technical Parameters

Product Name	SFM-8 Agate Mortar Grinder
Product Model	SFM-8
Major Parameters (Specification)	1. Voltage: AC110V/220V 50Hz/60Hz 2. Power: mortar 10W, grinding rod 25W 3. Materials of mortar and grinding rod: agate 4. Mortar diameter: Ø120mm 5. Mortar depth: 34mm 6. Mortar speed: 10rpm 7. Grinding rod speed: 20rpm-90rpm 8. Grinding time: 0-900min 9. Grinding amount: The powder is measured with a measuring cylinder about 30ml, and the weight is about 45g based on salt.
Product Dimension and Weight	Dimension: 250mm×320mm×580mm Weight: 12kg
